mission

mission ZX-1 - Pair

mission ZX-1 - Pair

Regular price €799,00 EUR
Regular price Sale price €799,00 EUR
-% Sold out
Taxes included. Shipping calculated at checkout.

Backorder usually available within 2 to 7 days

NEW RING DOME TREBLE UNIT

Mission’s Ring Dome treble unit overcomes the problems inherent in conventional domes. With this technology the centre of the dome is fixed and voice coil attached part of the way across the dome. The dome is formed into two rings, with the voice coil in the centre so that it can drive the dome more accurately and efficiently.

The result is lower distortion and superior performance, at frequencies up to 30 kHz and beyond. Transient performance is dramatically improved, as is musical detailing, particularly of instrument overtones and harmonics.

NEW DIADRIVE BASS/MIDRANGE UNIT

Mission’s DiaDrive bass unit has an advanced aluminium matrix cone and is now vented to remove trapped air behind the diaphragm, thus reducing resonance and allowing a clearer midrange performance to beyond 3kHz.

In ZX the driver surround is covered by a vented cover which controls the spurious output from the diaphragm edge, again improving midrange clarity.

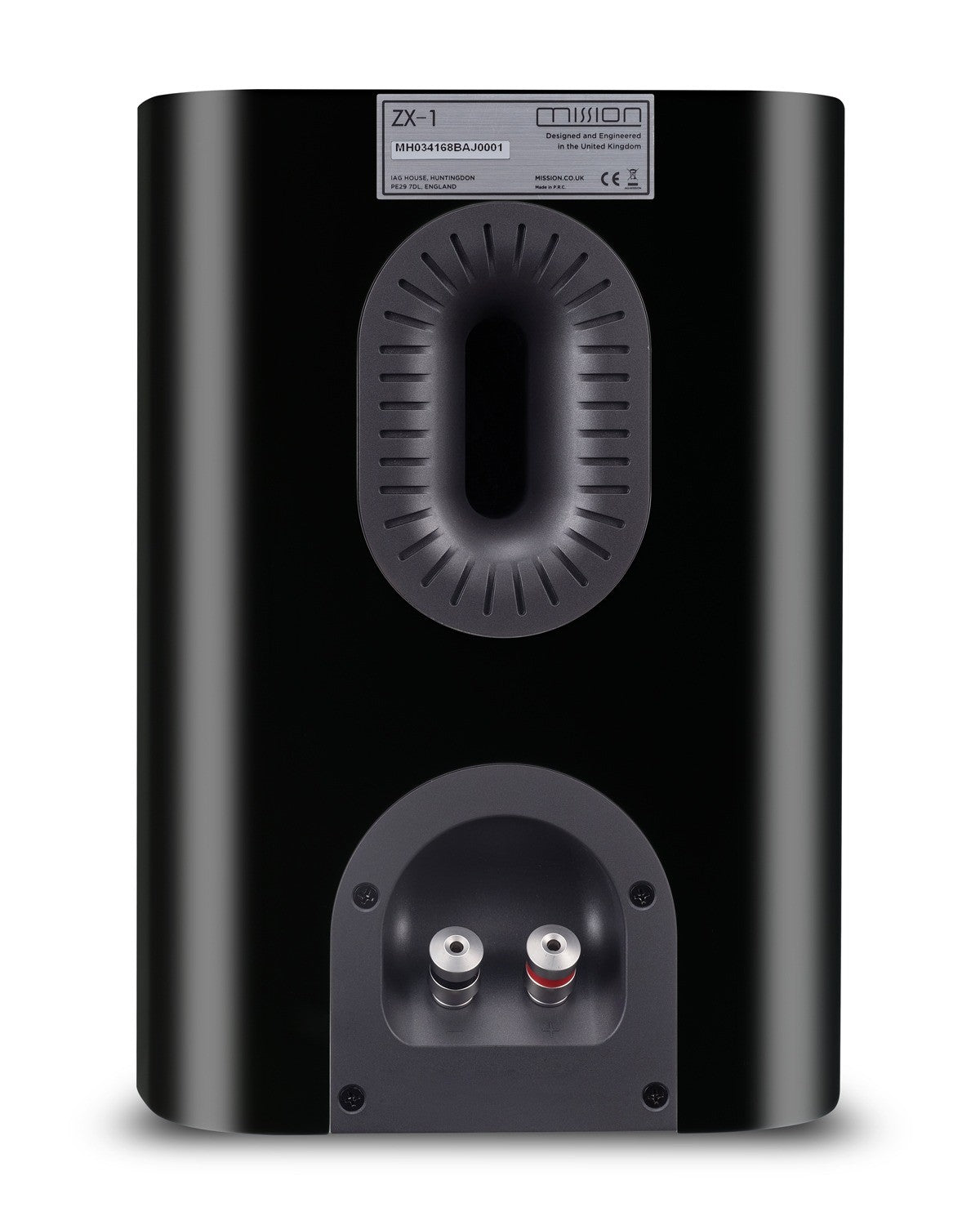

Matching ‘serrations’ are built into the flare of the slot port. High pressure airflow is streamlined from the port exit whilst the asymmetric design breaks up the ‘chuffing’ distortion normally heard from circular ports.

NEW CABINET / DRIVER BRACING SYSTEM

Mission ZX bass/midrange units now feature, as standard, over-size magnet systems to deliver the punch and transient attack that feature in modern recordings.

To improve the mechanical integrity of these magnet systems, special bracing methods have been developed to ensure that the bass diaphragms respond accurately to the musical waveform. Bass output is now thrillingly dynamic with superior detailing and extension.

FINE TUNED CROSSOVER PERFORMANCE

Mission’s Inverted Driver Geometry (IDG) of bass/midrange and treble units has been applied to equalise acoustic path lengths. IAG’s Head of Acoustic Design, Peter Comeau, has worked tirelessly to ensure a seamless integration between the drive units, so the speaker behaves as one music making system.

ZX CONTINUES TO TELL THE STORY

Designed to stand out head and shoulders above the competition, the Mission ZX range oozes luxury in appealing gloss black and gloss white finishes. Carefully selected trims and driver materials do more than catch the eye and complement the technology at play. The Mission ZX series has an all-inclusive design that continues to tell the story of the music, not just deliver hi-fi sound.

ZX-1 Specifications
  • General Description - 2-way bookshelf speaker
  • Enclosure Type - Bass reflex
  • Transducer Complement - 2-way
  • Medium/Bass Driver - 5.25" (130mm) aluminium cone
  • Treble Driver - 1.5" (38mm) ring dome
  • AV Shield - No
  • Sensitivity (2.0V @ 1m) - 88dB
  • Recommended Amplifier Power - 25-100W
  • Peak SPL 108dB
  • Nominal Impedance - 8 Ohms compatible
  • Minimum Impedance - 3.5 Ohms
  • Frequency Response(+/-3dB) - 52Hz ~ 24kHz
  • Bass Extension(-6dB) - 46Hz
  • Crossover Frequency - 2.6kHz
  • Dimensions - 300 * 240 * (350+12)mm
  • Net Weight - 7.6kg/pcs
