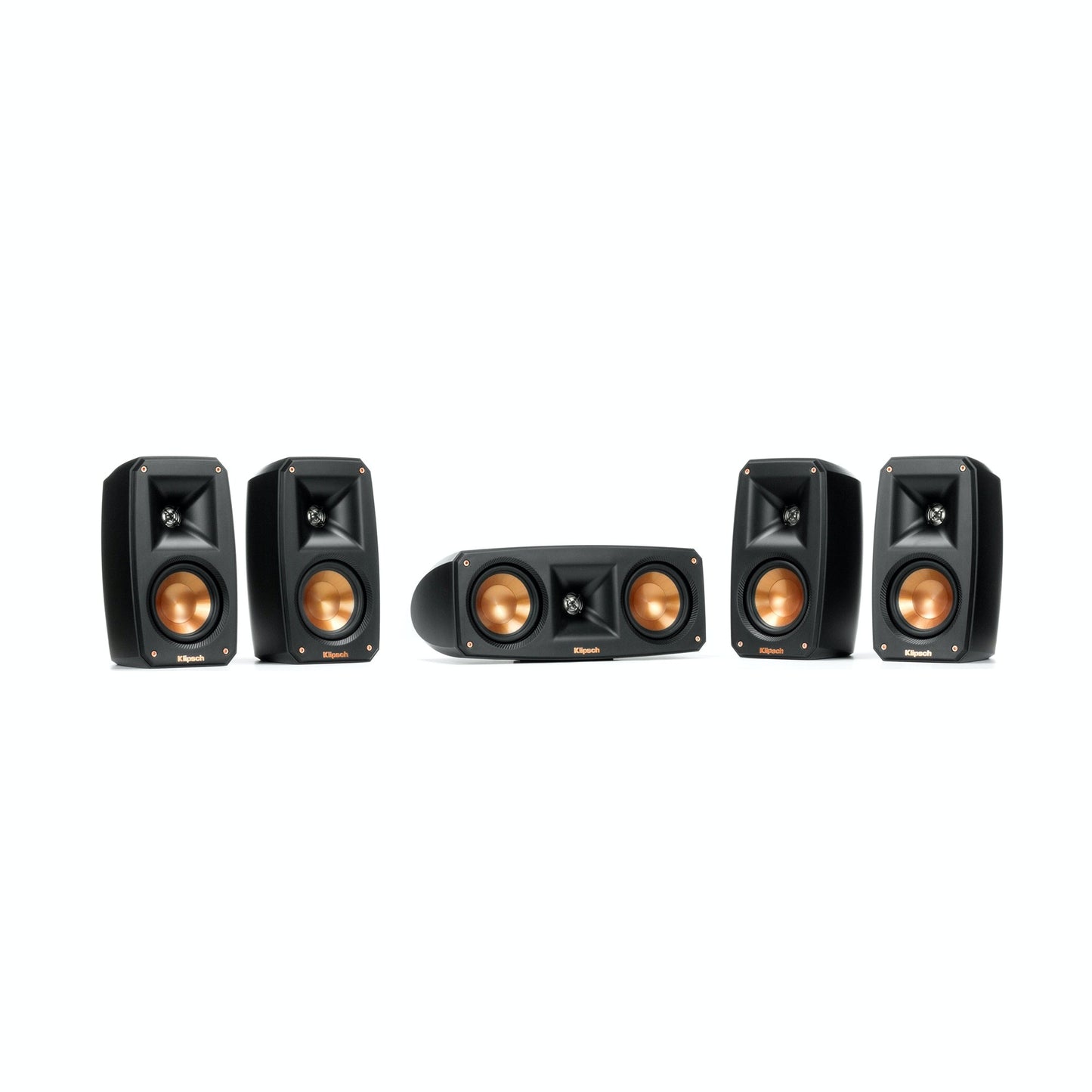

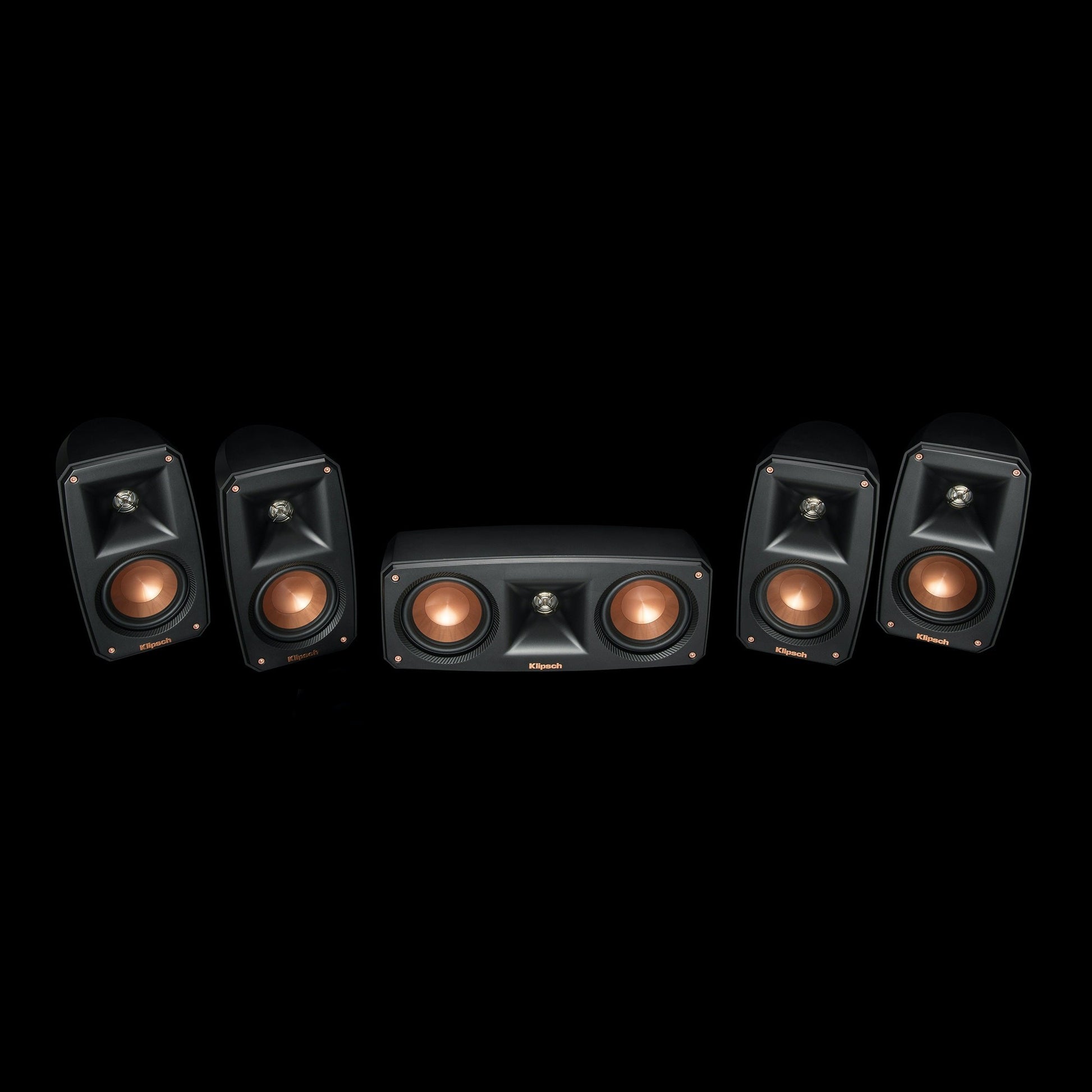

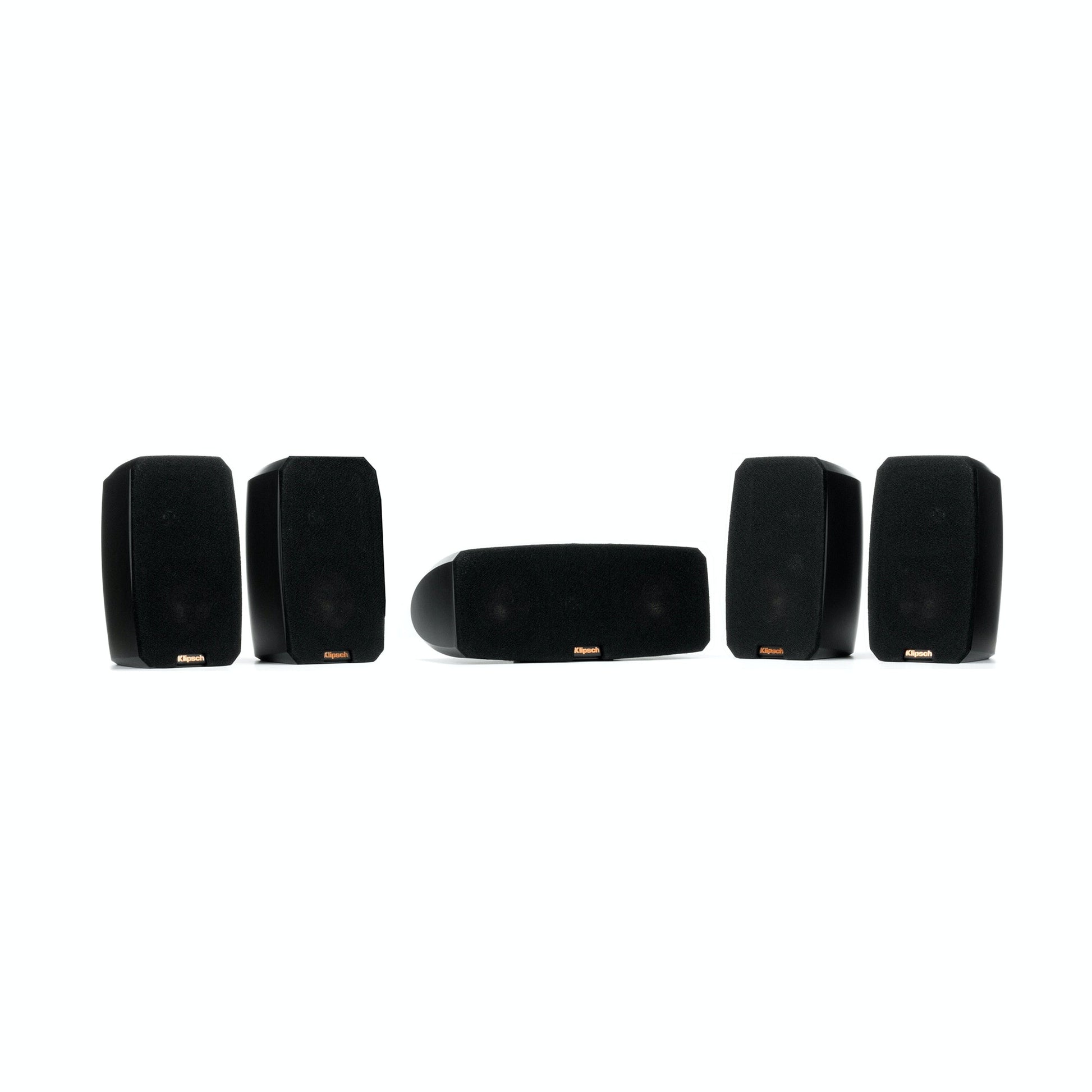

KLIPSCH - REFERENCE THEATER PACK 5.0 PASSIVE SPEAKER SYSTEM

SPUN COPPER IMG CONES

Injection Molded Graphite (IMG) woofers are exceptionally light while being extremely rigid — providing remarkable low frequency response, with minimal cone breakup and distortion.

LINEAR TRAVEL SUSPENSION (LTS) TWEETER

A Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters have been a hallmark of our Reference series product lines, making it a core component of some of the best speakers in the world.

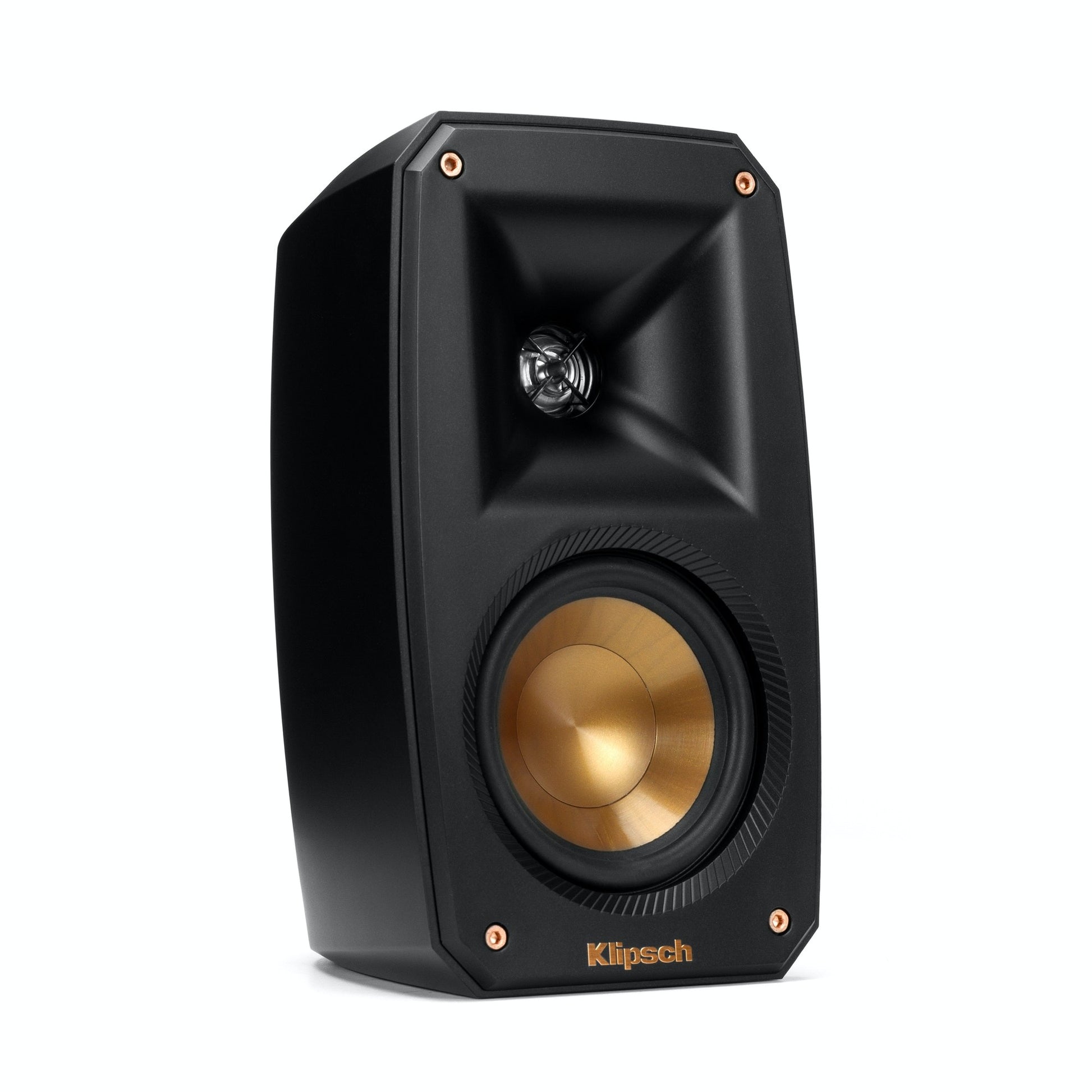

90° x 90° TRACTRIX® HORN

Our exclusive Tractrix horn technology and aluminum tweeters deliver the most impressive high-end response and greater extension, enhanced imaging and powerful dynamics. This creates the cleanest, most natural sound possible.

FLEXIBLE SYSTEM PLACEMENT

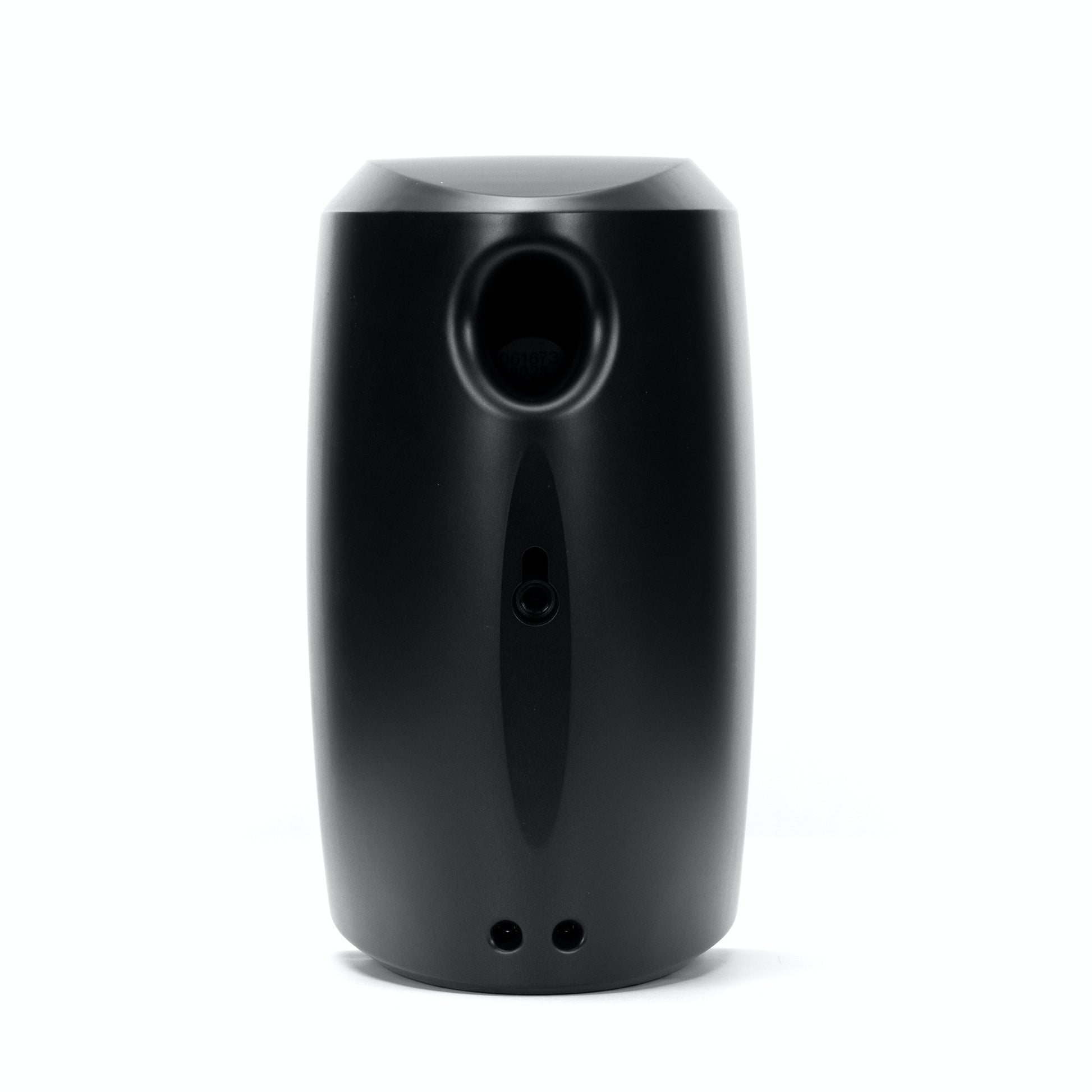

Each satellite speaker has a keyhole mount and a 1/4” x 20 threaded insert (the center channel has dual keyhole / inserts) for maximum mounting flexibility.

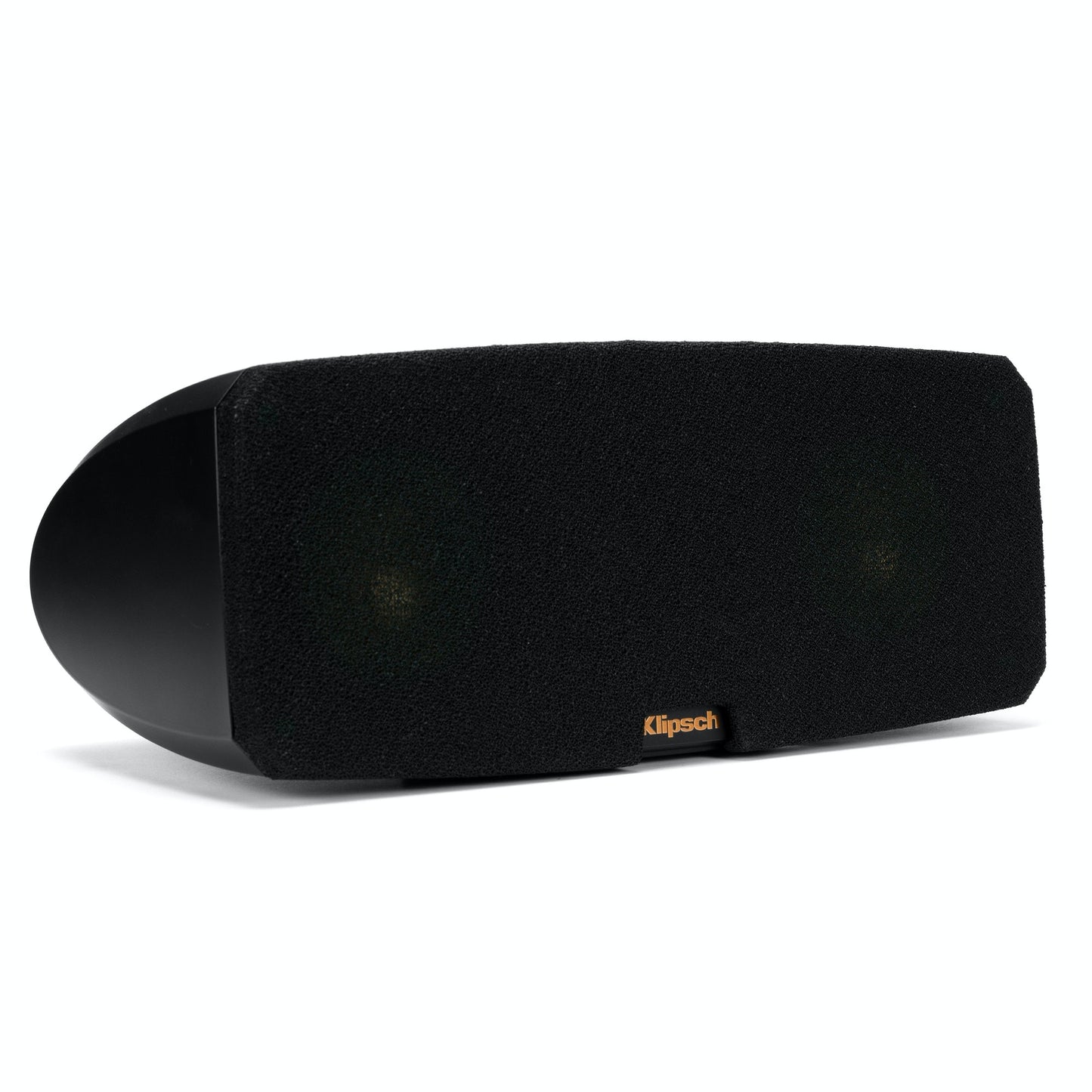

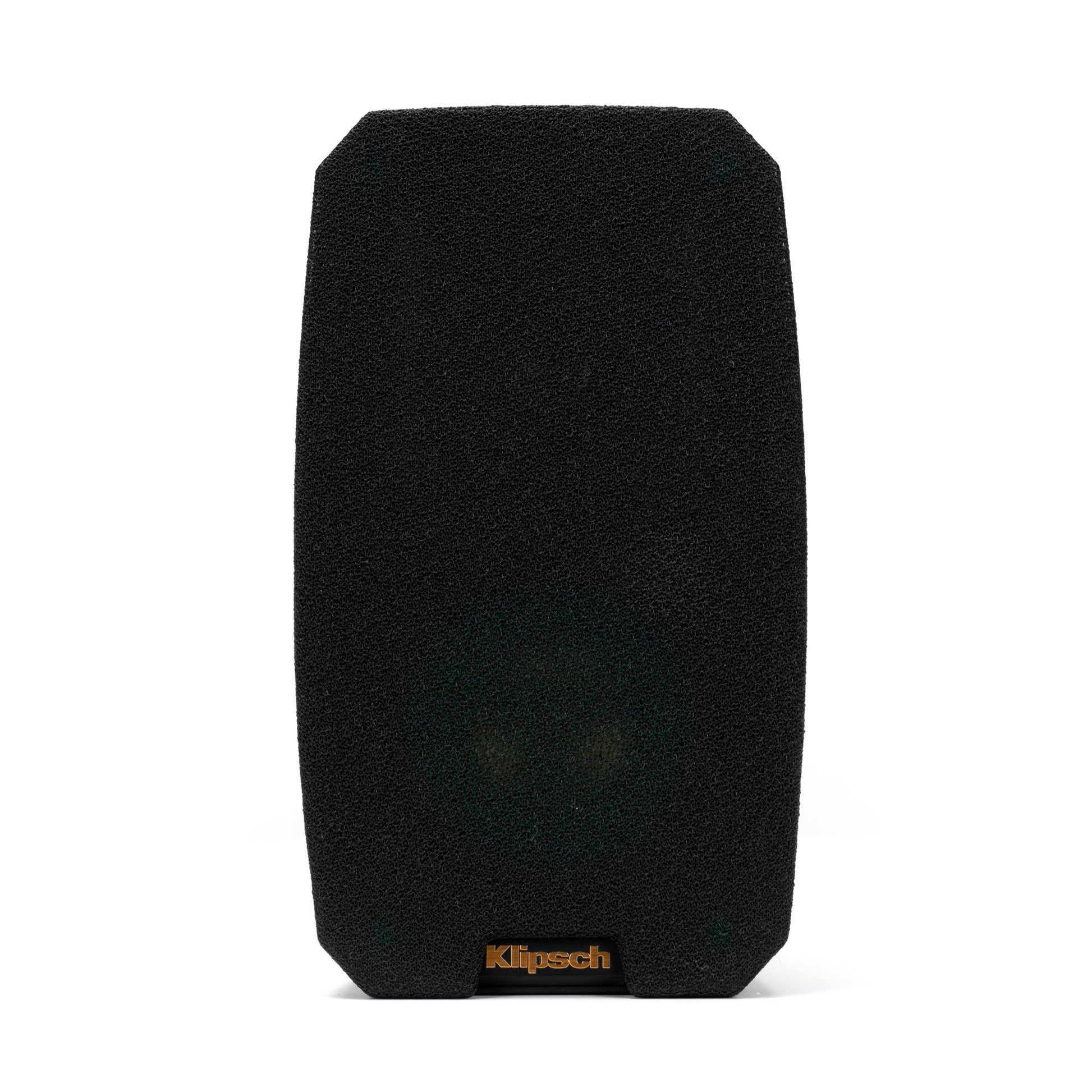

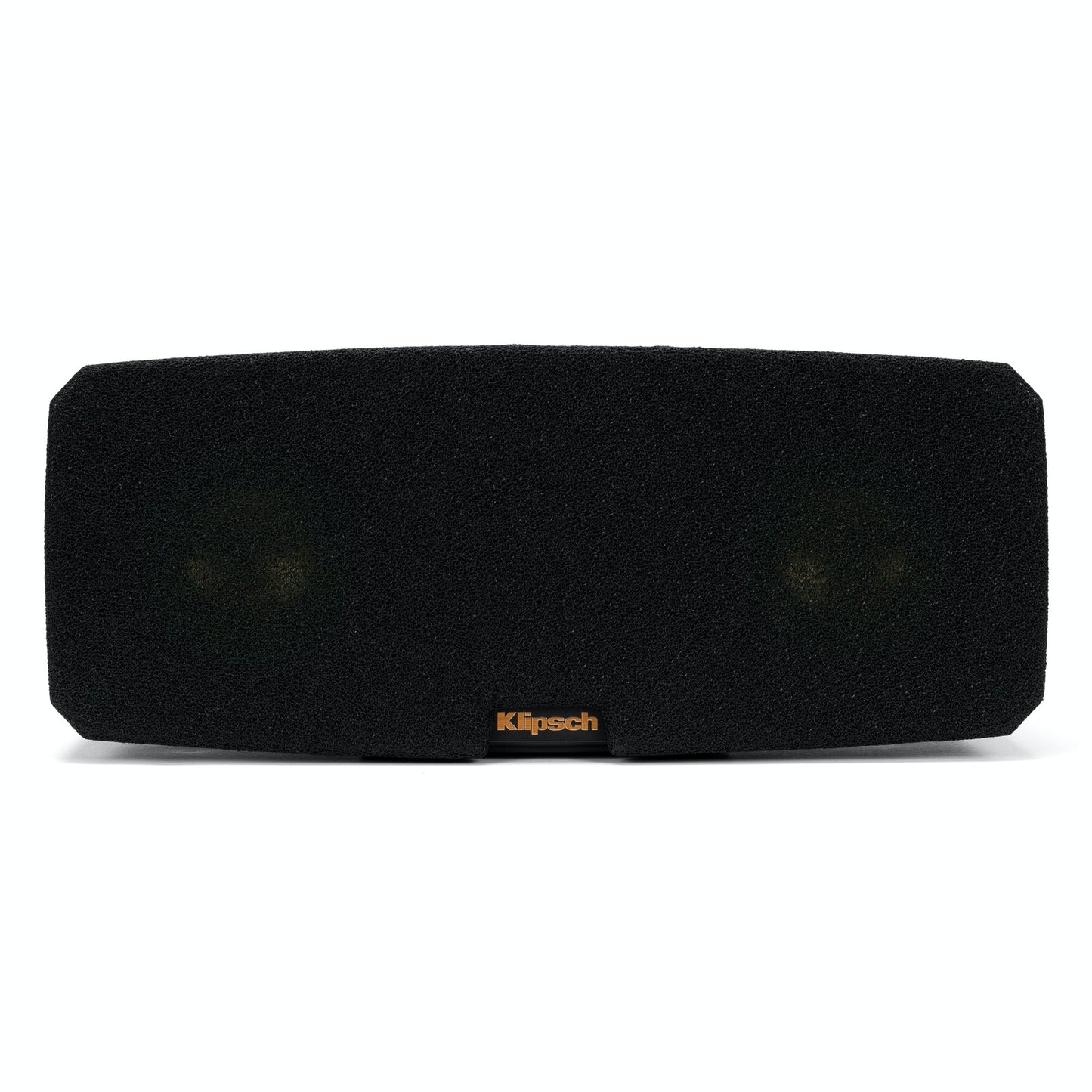

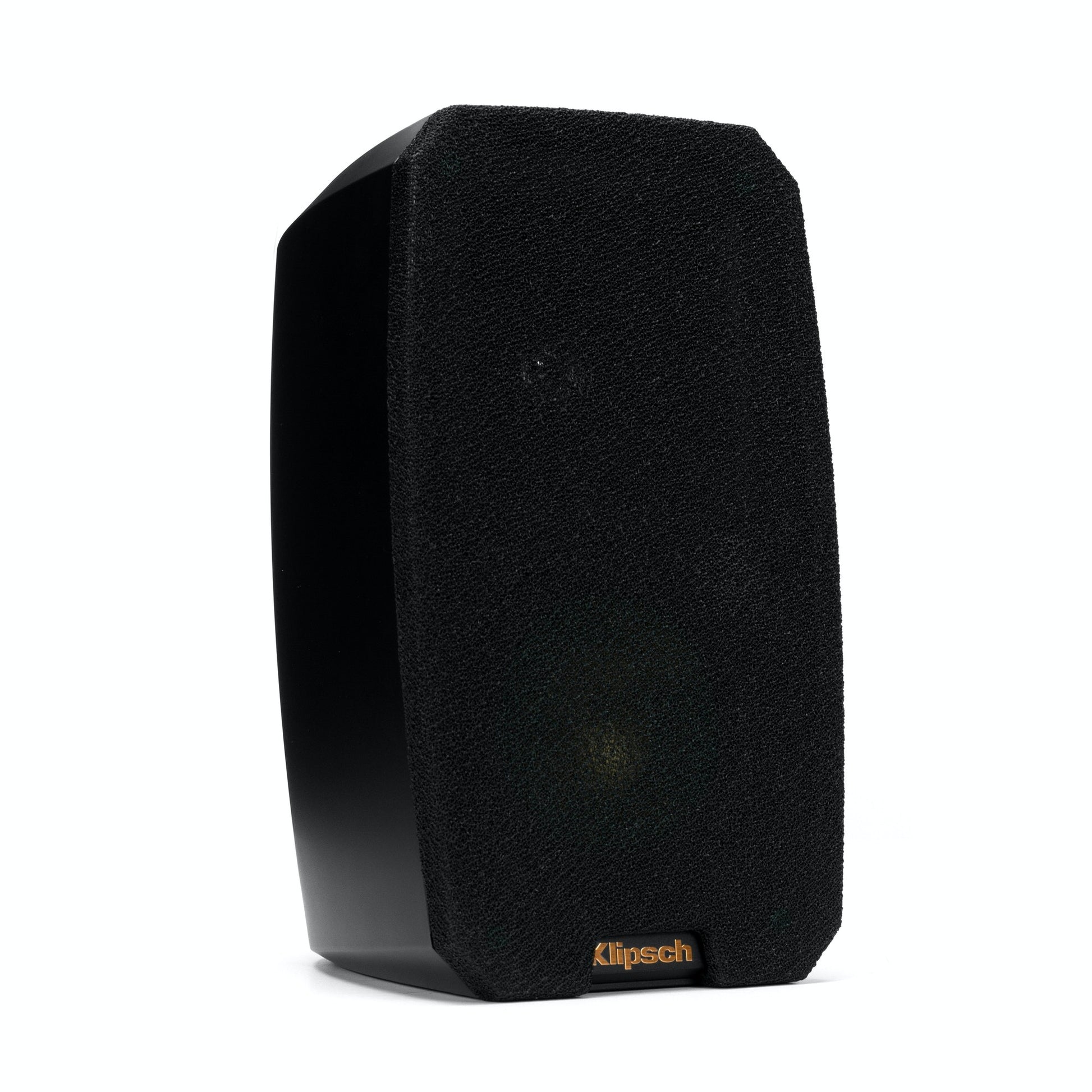

STRONG, FLEXIBLE, REMOVABLE GRILLES

Grilles attach magnetically for a cleaner, more elegant appearance.

HIGH-QUALITY SPRING-LOADED BINDING POSTS

Easy-to-connect spring-loaded binding posts are recessed to maintain a clean cable exit from the rear of the enclosure.

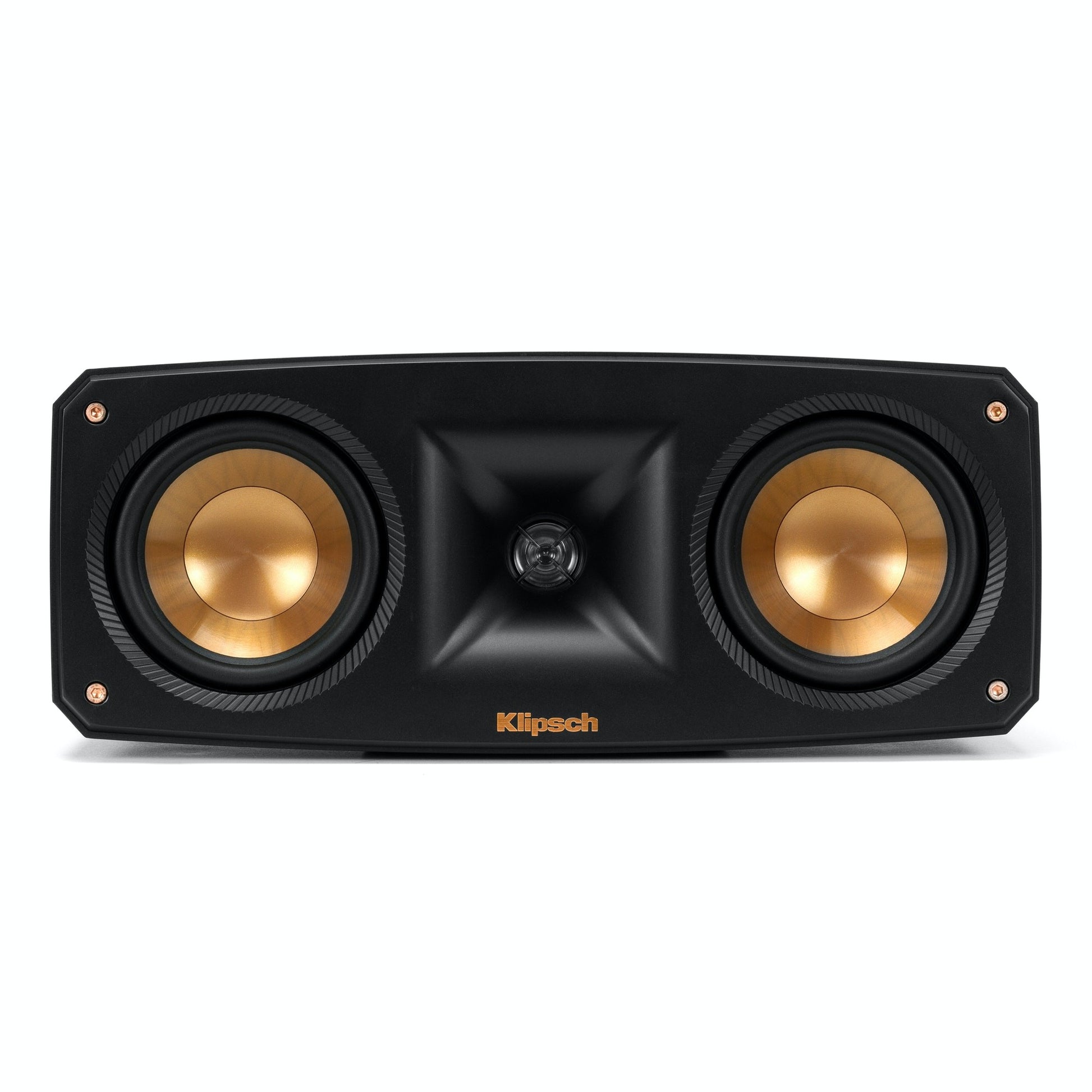

SPECIFICATIONS - SATELLITE & CENTER CHANNEL

• FREQUENCY RESPONSE - 110Hz – 23kHz +/– 3dB
• NOMINAL IMPEDANCE - 8 ohms compatible
• SENSITIVITY - Satellite: 91dB @ 2.83 volts / 1 meter; Center: 94dB @ 2.83 volts / 1 meter
• POWER HANDLING - Satellite: 50 watts (200 watts peak); Center: 75 watts (300 watts peak)
• HIGH FREQUENCY DRIVER - Satellite & Center: 3/4” (1.9 cm) aluminum diaphragm compression driver mated to 90° x 90° Tractrix® horn
• LOW FREQUENCY DRIVER - Satellite: 3.5” (8.9 cm) copper IMG woofer; Center: Dual 3.5” (8.9 cm) copper IMG woofer
• DIMENSIONS - Satellite: 7.75” H (19.7cm) x 4.38” W (11.1cm) x 5.37” D (13.7cm); Center: 4.38” H (11.1cm) x 10.75” W (27.3cm) x 5.37”D (13.7cm)
• WEIGHT - Satellite: 3 Ibs (1.4kg); Center: 5 Ibs (2.3kg)
• MOUNTING - Satellite: Keyhole and 1/4” x 20 threaded insert; Center: Dual Keyhole with dual 1/4” x 20 threaded insert
• SPEAKER WIRE - 14–18 gauge compatible
