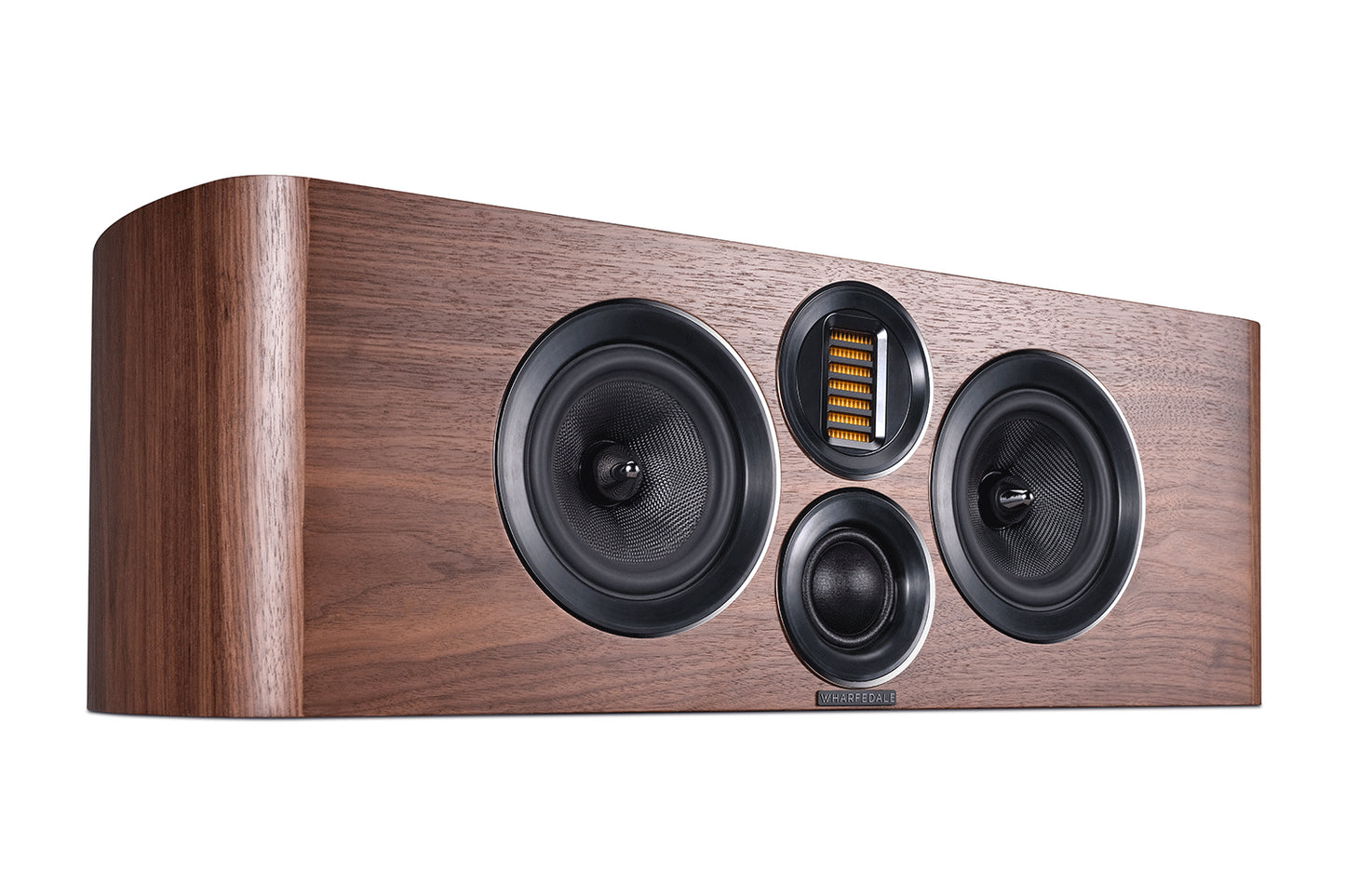

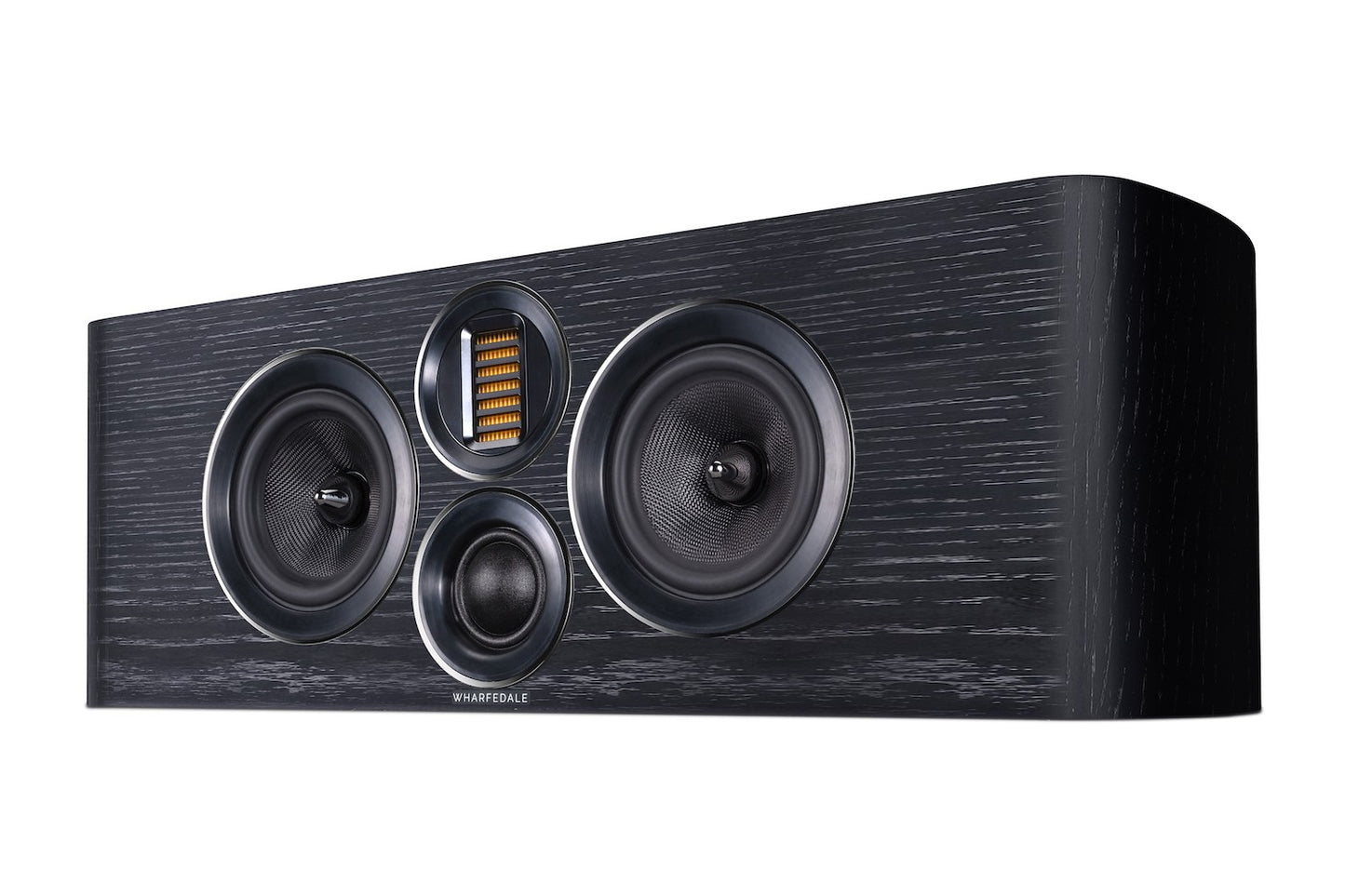

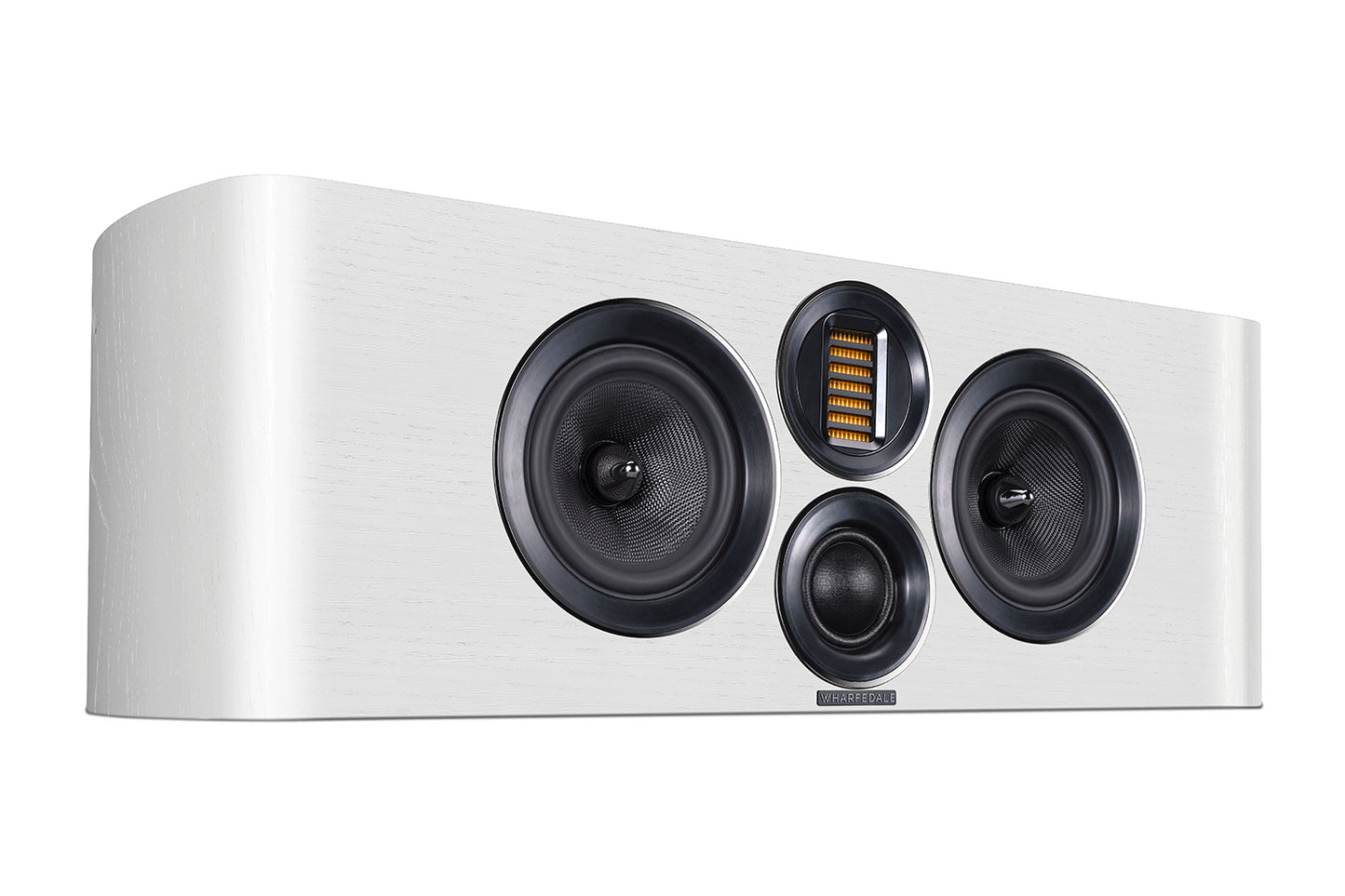

Center Speaker - Wharfedale Evo4.C

The Wharfedale EVO 4.C is a powerful 3-way center channel speaker designed to enhance your home theater setup. Developed alongside the flagship Elysian range, the EVO4 series inherits cutting-edge technologies, tonal accuracy, and build quality, delivering high-quality performance without the premium price tag.

Key Specifications:

1. Speaker Type: 3-way center channel speaker
2. Enclosure Type: Bass reflex
3. Transducer Complement:
   • Bass Driver: Dual 6.5" black woven Kevlar® cones
   • Midrange Driver: 2" soft dome
   • Treble Driver: 30x60mm Air Motion Transformer (AMT)
4. Sensitivity (2.83V @ 1M): 90dB
5. Recommended Amplifier Power: 25-150W
6. Peak SPL: 108dB
7. Nominal Impedance: 8Ω (Compatible Minimum Impedance: 4.3Ω)
8. Frequency Response (+/-3dB): 48Hz ~ 22kHz
9. Bass Extension (-6dB): 42Hz
10. Crossover Frequency: 1.5kHz (midrange to treble), 3.9kHz (bass to midrange)
11. Dimensions (HxWxD): 9.6" x 29.5" x 13.4" (245mm x 750mm x 340+10mm)
12. Net Weight: 15.8 kg (34.8 lbs)

Features:

• AMT Tweeter (Air Motion Transformer):
  • The AMT tweeter employs a pleated lightweight diaphragm driven by strategically placed magnets. It ensures wide bandwidth, low distortion, and exceptional musical detail without harshness.
• Dome Midrange:
  • The specially designed fabric dome midrange disperses rear energy, resulting in improved detail, lower distortion, and extended low-frequency performance.
  • Linear response from 800Hz to 5kHz allows for broader dispersion and greater clarity.
• Classic British Sound:
  • The EVO4 series retains the natural, musical, and addictive sound associated with classic British speakers.
  • Ultra-low coloration and transparency rival Wharfedale’s premium Elysian range.

EVO4 Series:

The EVO4 series bridges the gap between Wharfedale’s award-winning Diamond 11 series and their future flagship, the Elysian speakers. Developed alongside the Elysian project, the EVO4 series benefits from extensive research and development. Notable features include well-built cabinets, beautifully curved sides, and refined driver arrangement.

The AMT high-frequency unit in the EVO4 series produces sound differently from conventional dome tweeters. Its ribbon technology utilizes a large, pleated, lightweight diaphragm driven by magnets, resulting in an open and smooth top end without excessive brightness. Coupled with a responsive midrange driver, the EVO4.C delivers detailed, wide-spread sound.

Low frequencies are handled by Wharfedale’s low-deformation motor system, coupled with woven Kevlar cones for accurate and powerful bass. The EVO4 series also features an advanced version of Wharfedale’s Signature Slot-Loaded Bassport.

Experience cinematic audio excellence with the Wharfedale EVO 4.C center speaker!
