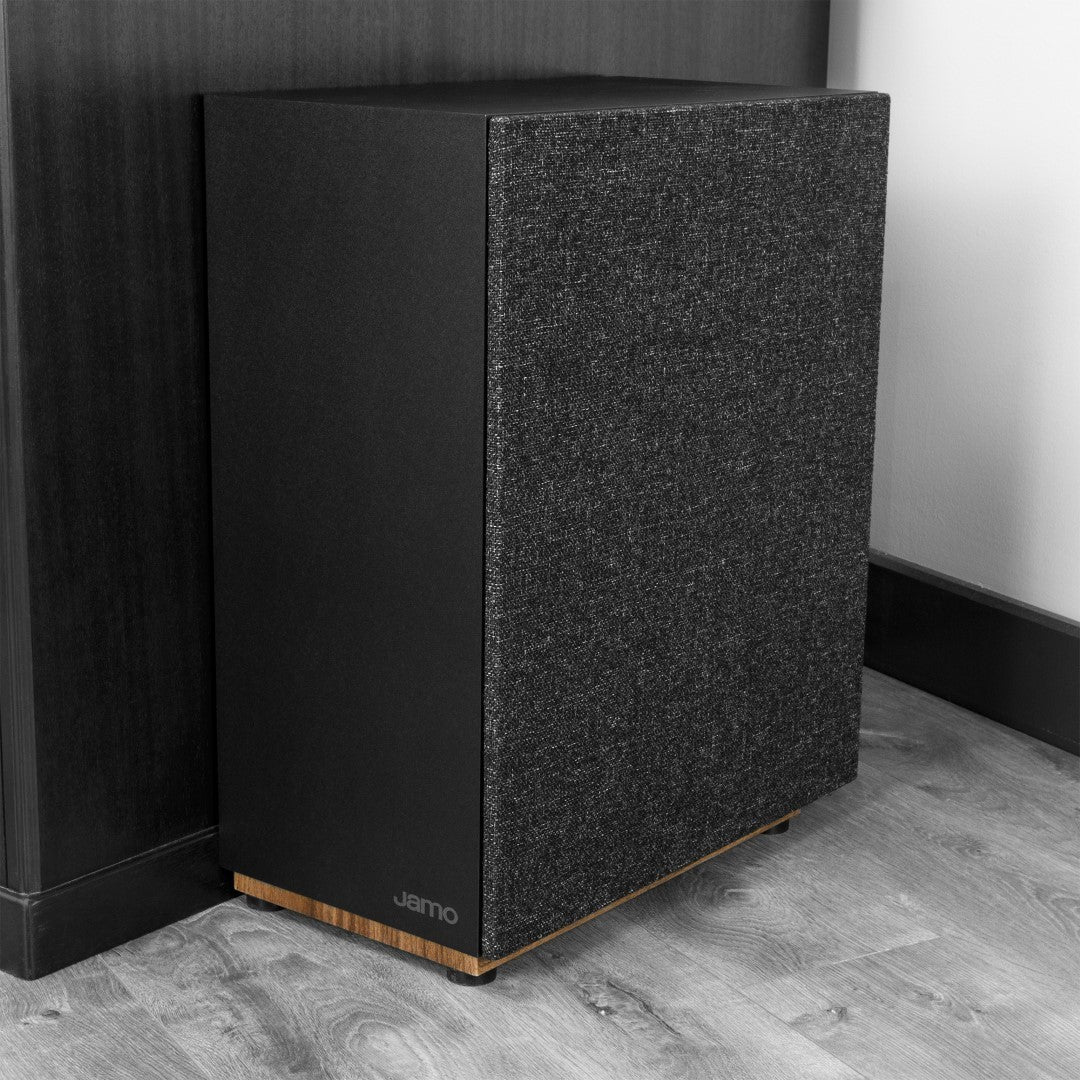

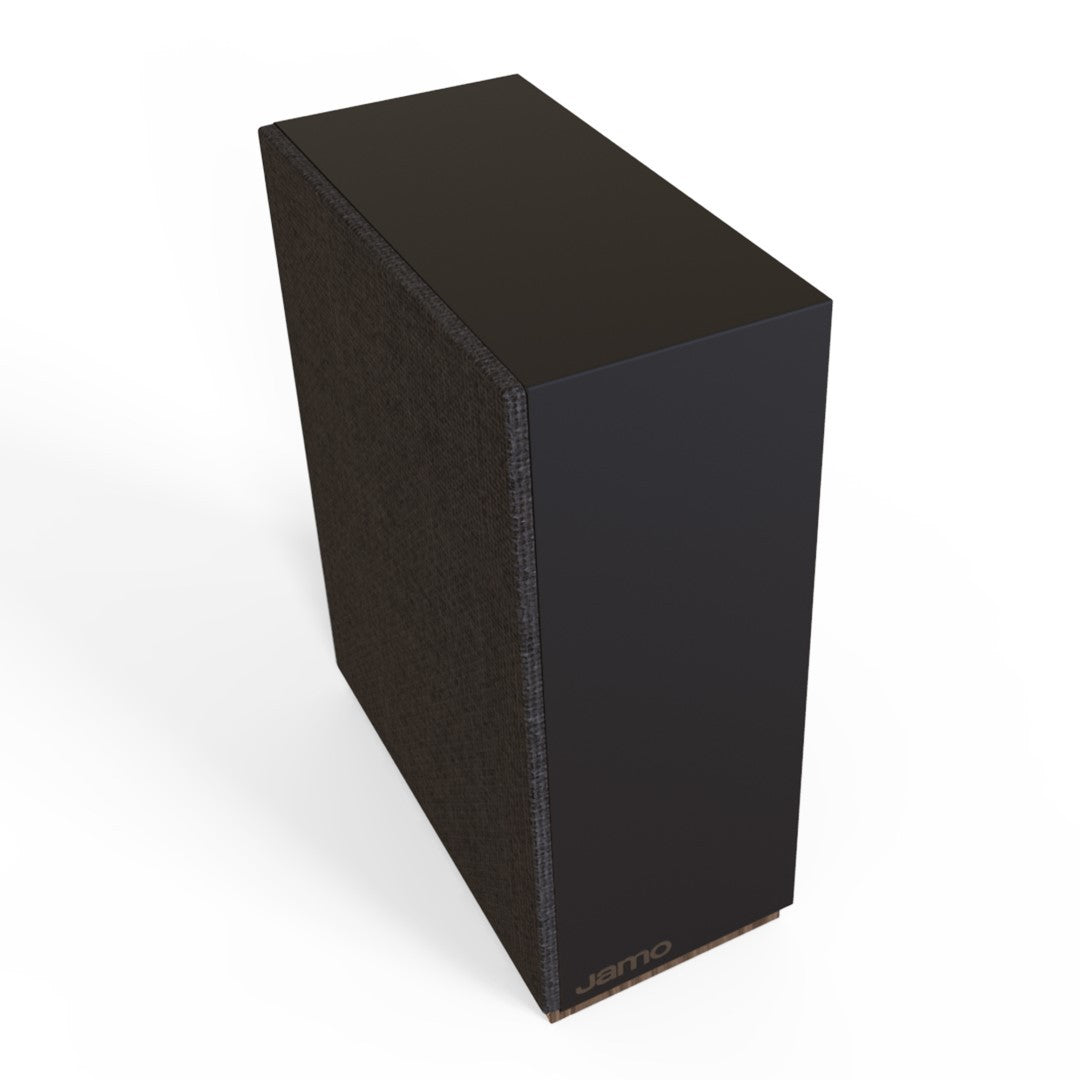

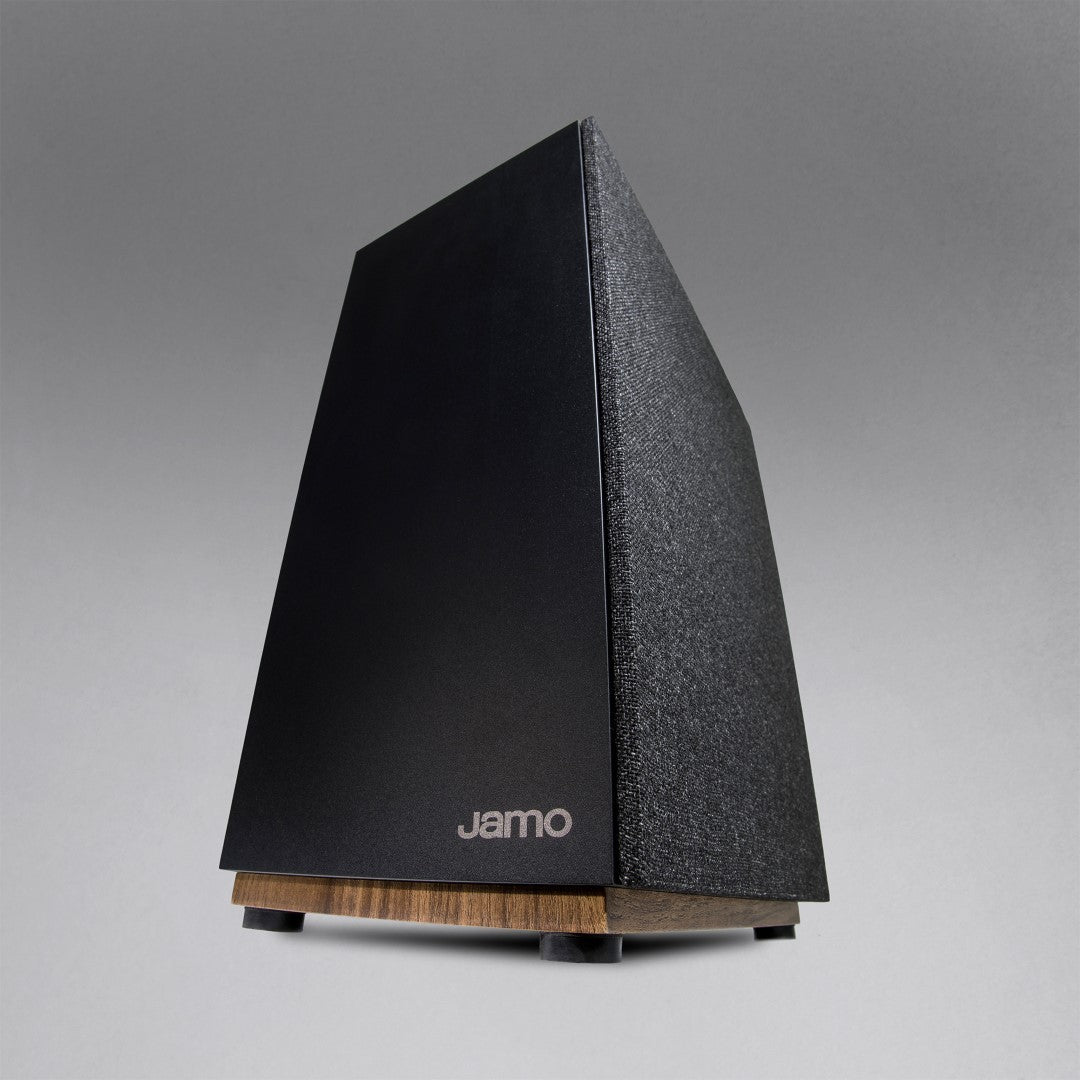

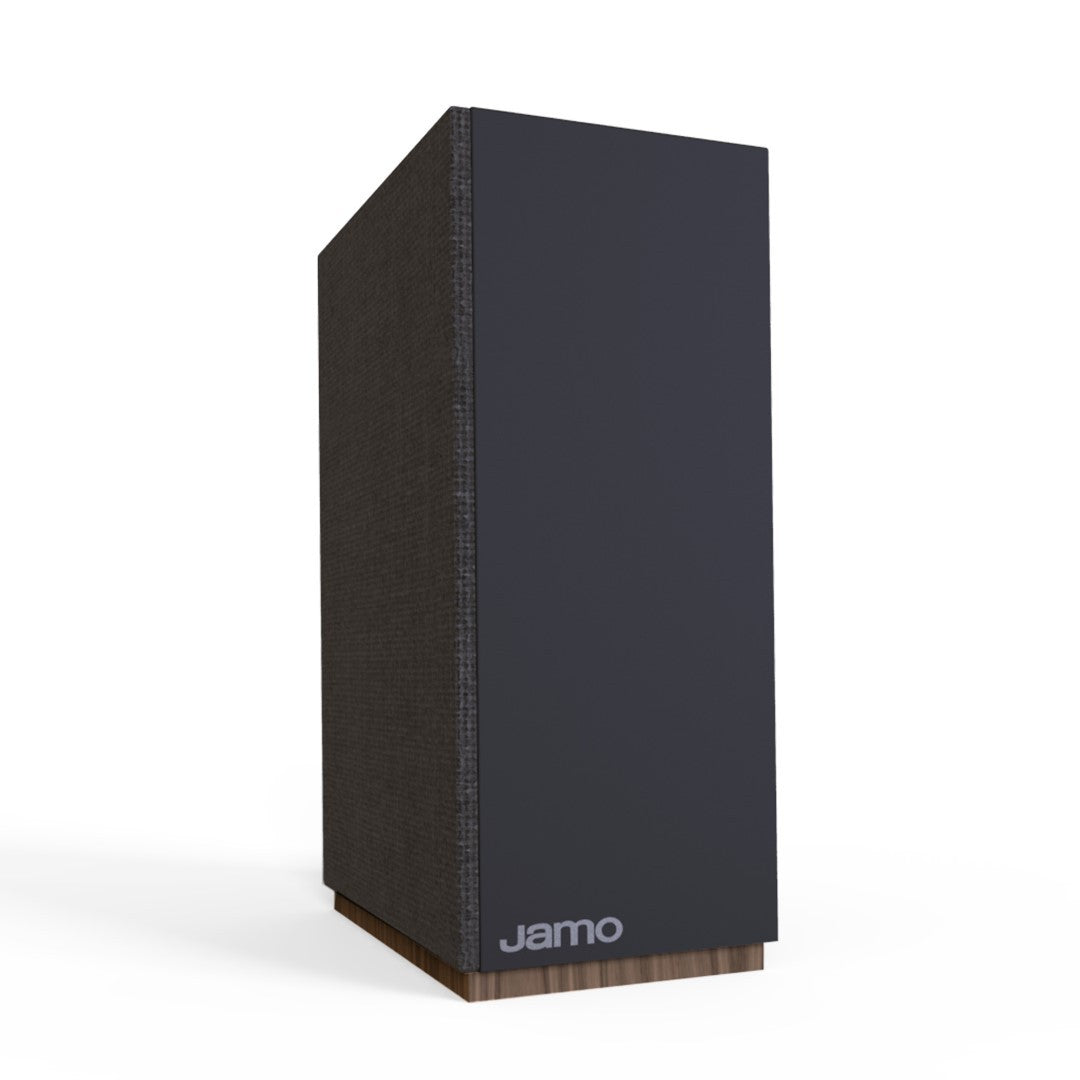

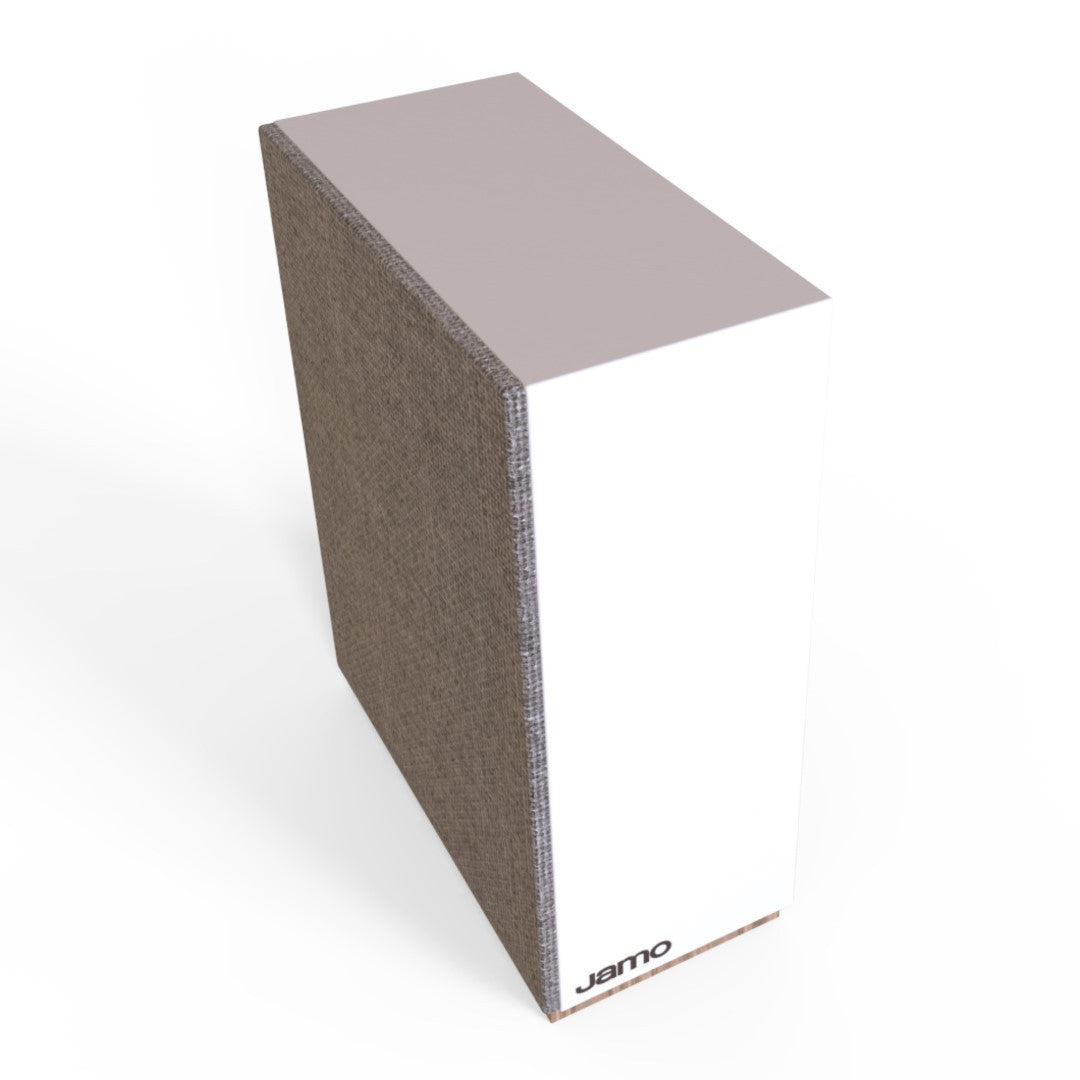

JAMO S810 SUBWOOFER

COMPLETELY NEW, COMPLETELY MODERN

The new Jamo Studio 8 series has been completely reimagined to live seamlessly in modern, premium environments. Contemporary material and finish choices accentuate the clean, minimalist lines of this European design, while the compact cabinet designs are an ideal solution for urban living environments around the world.

TRUE CINEMA LOW FREQUENCIES

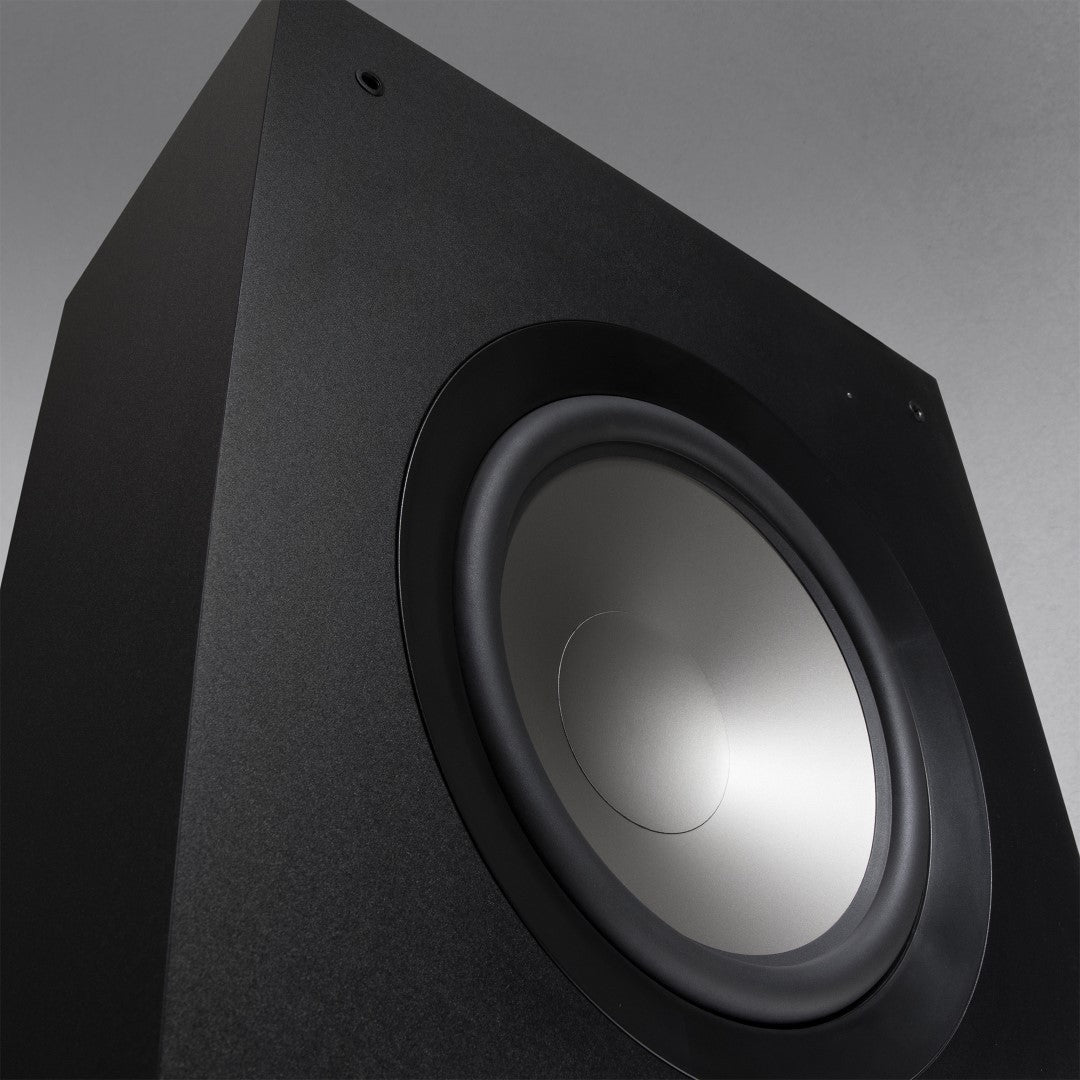

Equipped with a 10” polyfiber woofer and a 150W class D amplifier, the Jamo Studio

S 810 SUB delivers dynamic, powerful bass in any listening environment - from full cinema surround systems to critical 2-channel listening.

ULTRA SLIM CABINET

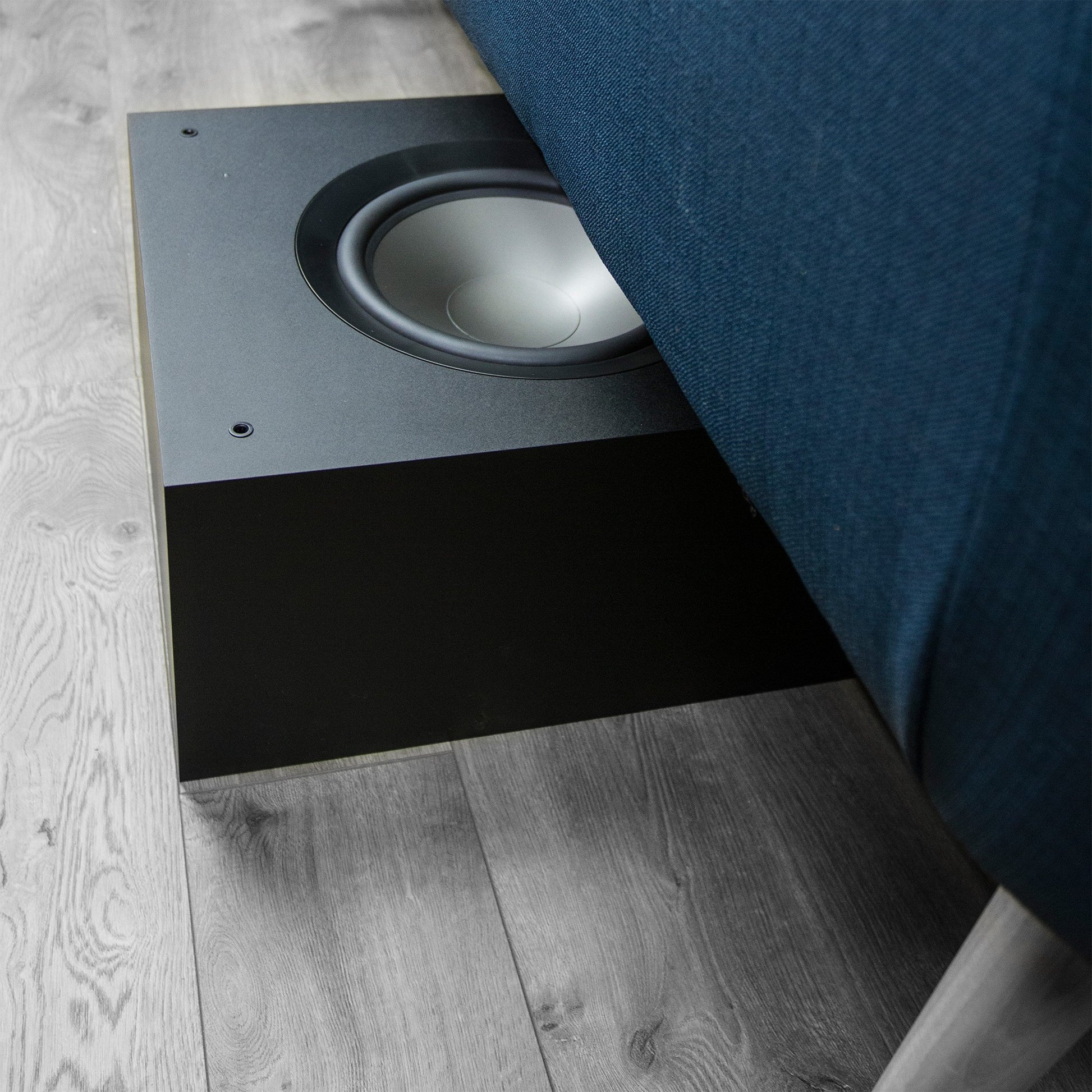

The Jamo Studio S 810 SUB utilizes an ultra-slim cabinet for exceptional placement flexibility and orientation flexibility - front firing against a wall or side firing next to a media console or cabinet. At less than 9” deep, it can even be placed on its side and hidden underneath a sofa or chair. The 90° power cable allows for extra tight placement against the wall, for minimal intrusion into the room.

BOTTOM MOUNTED AMPLIFIER

The high powered class D amplifier and input panel is mounted on the bottom of the cabinet, making for a clean, unobtrusive look in any orientation. 90° power cable and RCA cable are included for exceptional space management.

SPECIFICATIONS

FREQUENCY RESPONSE - 36Hz - 180Hz
AMPLIFIER TYPE - Class D
AMPLIFIER POWER (CONT/PEAK) - 75W / 150W
DRIVER - 25.4mm (10”) Polyfiber Woofer
MAXIMUM OUTPUT - 110dB
ENCLOSURE MATERIAL - MDF
ENCLOSURE TYPE - Bass Reflex via slot port
INPUTS - RCA Line-In/LFE
FINISHES - Black, White
DIMENSIONS (HxWxD) - 507mm x 404mm x 226mm
