Melodika - USB Type A - Type B cable

USB Type A - Type B cable

The high-quality USB 2.0 cable enables a secure and reliable connection between two devices equipped with USB A and USB B sockets.

The original project of the USB cable, designed by Melodika and manufactured in Poland, offers significantly better shielding and larger conductor cross-section than required by the USB standard. Correct impedance results in low jitter and eliminates timing faults and some distortions in digital signal. Thus, by replacing the factory-supplied cable of your audio equipment, such as a digital-to-analog converter (DAC) with the Melodika MDUAB cable, you can easily and quickly improve the quality of the transmitted signal while maintaining low jitter.

The Melodika Purple Rain MDUAB cable was designed to transmit digital sound in the best possible quality. The MDUAB is constructed with two pairs of wires (4x 0.2mm2), one for data transmission and the other for power. The data transmission line is separated and has its own shielding, which minimizes external interference. This way, power is isolated from signal conductors, allowing for a cleaner and more natural sound.

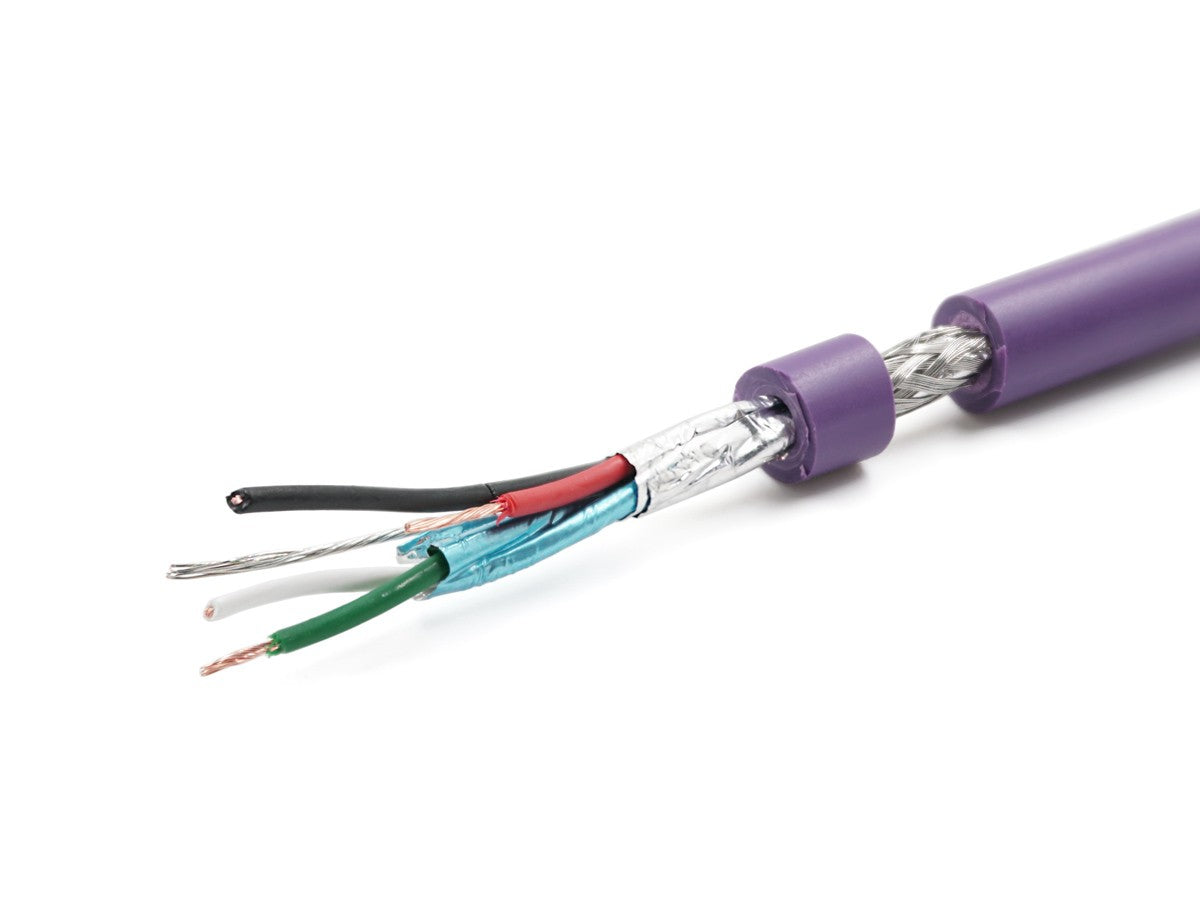

Triple shielding, consisting of two Mylar foil layers and a tin-plated copper braid, reduces electrical noise and electromagnetic interference (EMI) and prevents crosstalk between neighbouring wires. 24-karat gold-plated connectors reduce losses at the plug-socket connection. The Melodika cable is precisely soldered to the plugs using the highest-quality silver-copper solder.

The Melodika MDUAB USB 2.0 cable is made with the utmost care, ensuring durability and safety of use. The durable PVC insulation means that the cable can also be used in installations. The USB connector allows you to connect peripheral devices such as digital-to-analog converters (DACs), hard drives, medical devices, etc. Whenever quality and stability of the connection and minimized interference are particularly important, you can count on Melodika MDUAB.

Like all Melodika cables, due to its high quality also the MDUAB comes with a 5-year manufacturer's warranty.

The Melodika USB cable is marked with the MDUAB symbol, where "U" stands for USB, and AB indicates the type of connectors used in this cable (USB-A/USB-B). The numbers following this symbol indicate the cable length, so a 1.5m cable will have the symbol MDUAB15, and a 7m cable will have the symbol MDUAB70. The Melodika Purple Rain MDUAB is available in lengths ranging from 0.3 to 7 meters (MDUAB03 - MDUAB70), with prices depending on the length.

Specification

• Length: From 0.3m to 7m
• Conductor material: OFC oxygen-free copper: 99.99%
• Shielding: YES, triple (2x Mylar foil + zinc-coated copper braid)
• Construction: 2 pairs of twisted wires: 4x 0.2mm2
• Standard: USB 2.0 up to 480 Mb/s
• Shape: Round
• Diameter: 6.5mm
• Connectors: Shielded USB Type-A to USB Type-B; 24k gold-plated  connectors; High quality tin silver soldering
• Correct impedance results in low jitter
• Isolation: Purple outer insulation which is resistant to: UV radiation, seawater, ozone, alcohol.
• Wire capacity: 62 nF/1km - 62 pF/m
• Operating temperature: From -30 to +70ºC
• Certificate: RoHS 2
• Warranty: 5 years
• Origin: Manufactured in Poland (EU)
