Synthesis ROMA 79DC Tube Phono Stage MM-MC

The Quintessential Vinyl Companion

Elevate your vinyl experience with the Synthesis ROMA 79DC Tube Phono Stage, a complete pre-amplifier solution designed for both moving magnet (MM) and moving coil (MC) turntable cartridge systems. This phono stage is the perfect blend of vintage warmth and modern precision, ensuring that every spin of your record is a performance to remember.

Specifications:

• Gain Stages:
  • MM: 1 x 12AX7/ECC83
  • MC: Ultra-low noise JFET
• Output Stage: 1/2 x 12AU7/ECC82 per channel
• Frequency Response: 20Hz - 20KHz ± 1dB
• Gain:
  • MM: 40 dB
  • MC: 60 dB
  • MC+: 65 dB
• S/N Ratio:
  • MM: >80 dB (A-weighted)
  • MC: >70 dB (A-weighted)
• Cartridge Load (Selectable):
  • MM: 47 KOhm, Capacitance: 47/100/150/200/270/320/370/420 pF
  • MC: 100 pF, Resistance: 22/33/50/75/100/150/330/1000 Ohm
• Output Level: >2V RMS
• Output Impedance: <500 Ohm
• Dimensions: 260mm (W) x 380mm (D) x 95mm (H)
• Weight: 5Kg
• Power Requirements: 117, 230, 245 Vac ±10%, 50/60 Hz (see rear label)
• Fuse: See rear label
• Power Consumption: 30W max

Designed for Audiophiles

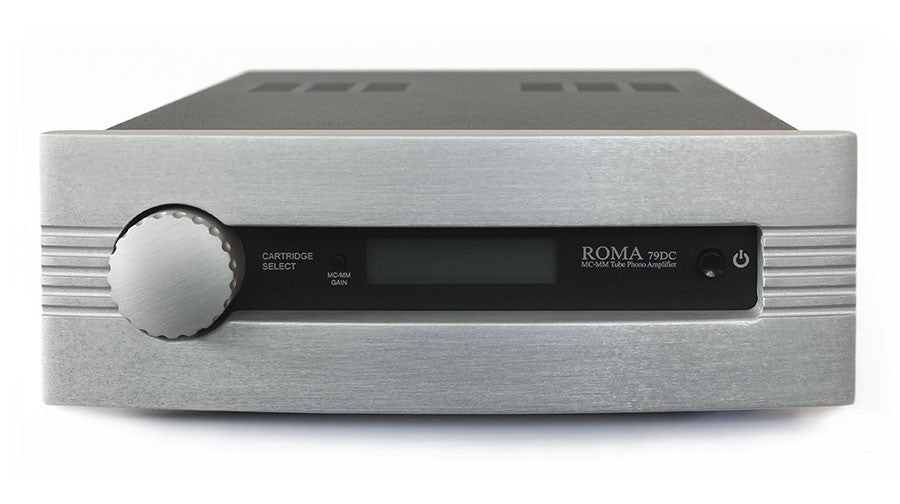

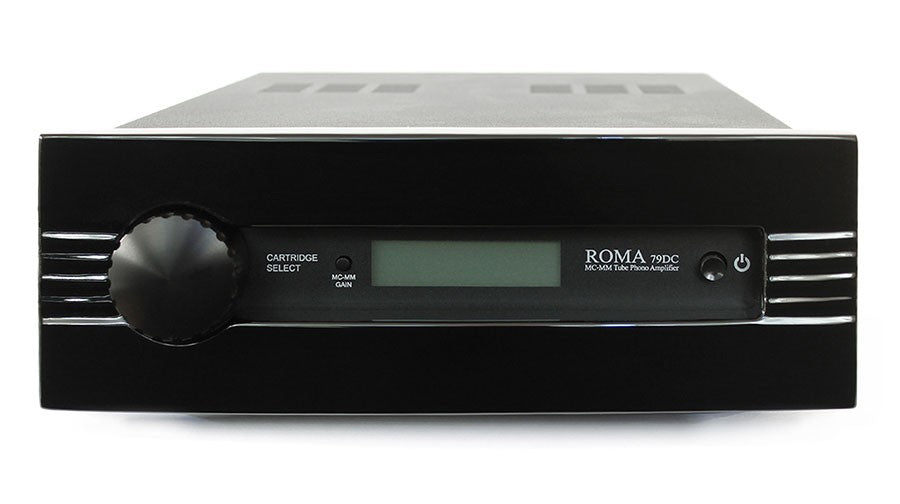

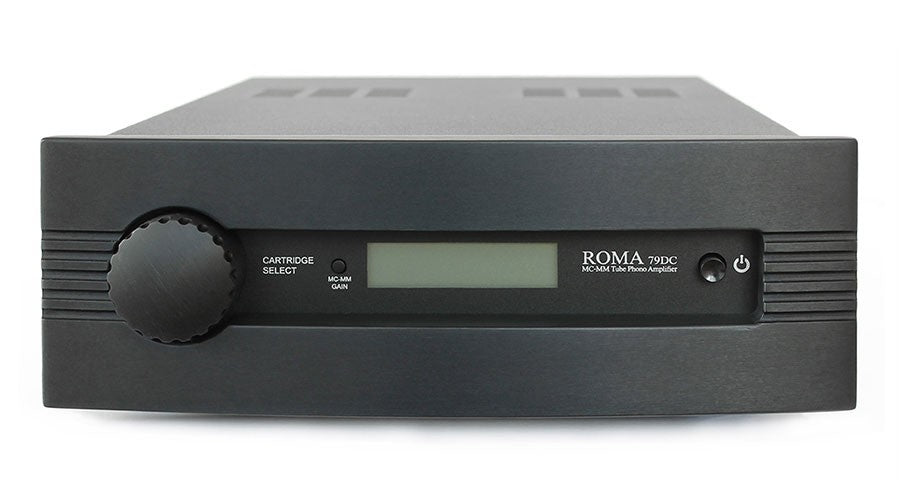

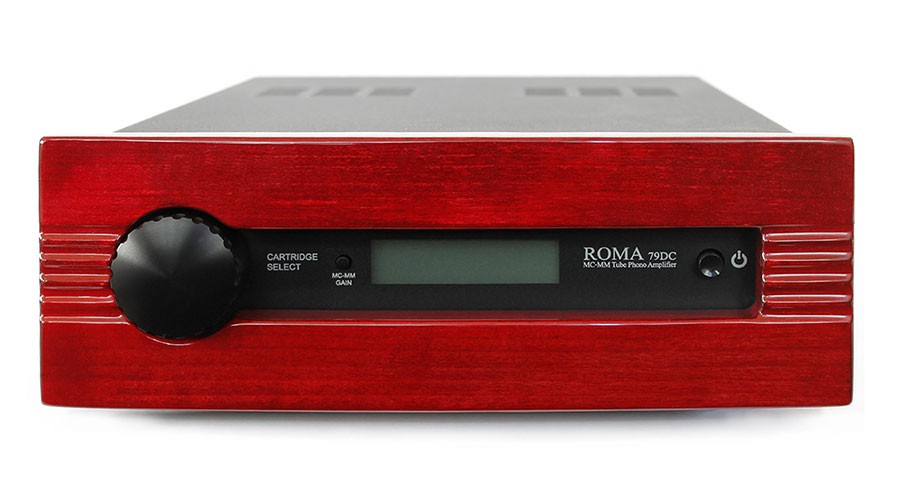

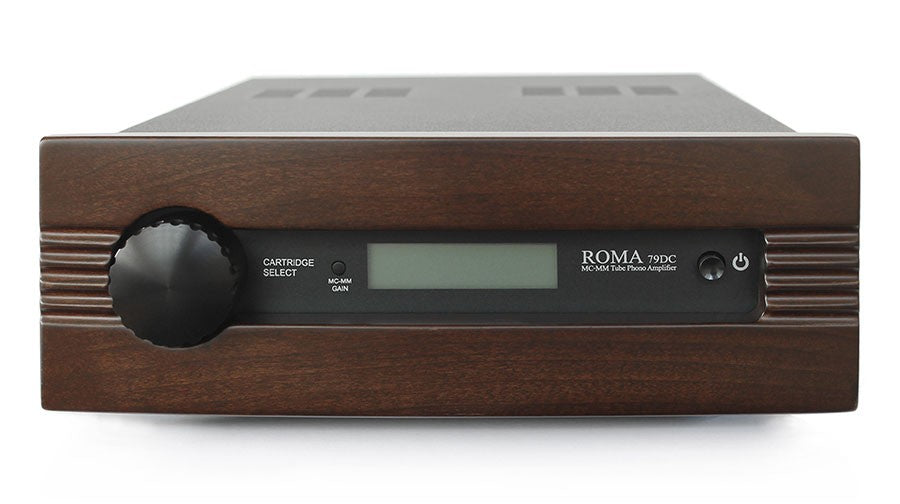

The ROMA 79DC is not just a piece of equipment; it’s an essential component for any audiophile’s setup. With easily selectable capacitors and impedances, you can tailor the sound to match your cartridge’s unique characteristics. The front-mounted knob selector and LCD display make adjustments a breeze.

Advanced Tube Circuitry

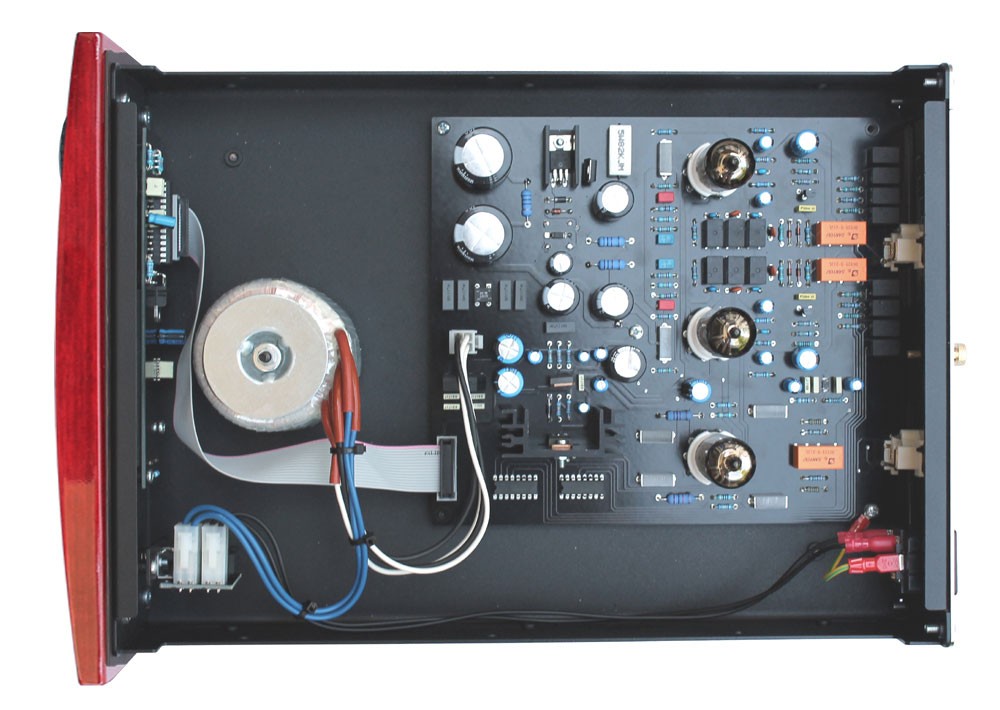

At the heart of the ROMA 79DC lies a multi-stage fully regulated power supply, backed by an oversized shielded power transformer to reduce interference. High-grade metalized polypropylene capacitors control the audio signal circuits, delivering a sound that’s as pure as it is powerful.

Aesthetic and Functional Harmony

The ROMA 79DC’s sleek design is matched by its functional prowess. The low noise JFet and ECC82/12AU7 tube on the output stage ensure a very low output impedance without losing signal, giving you a sound that’s both expansive and detailed.
