Pylon Jade 30

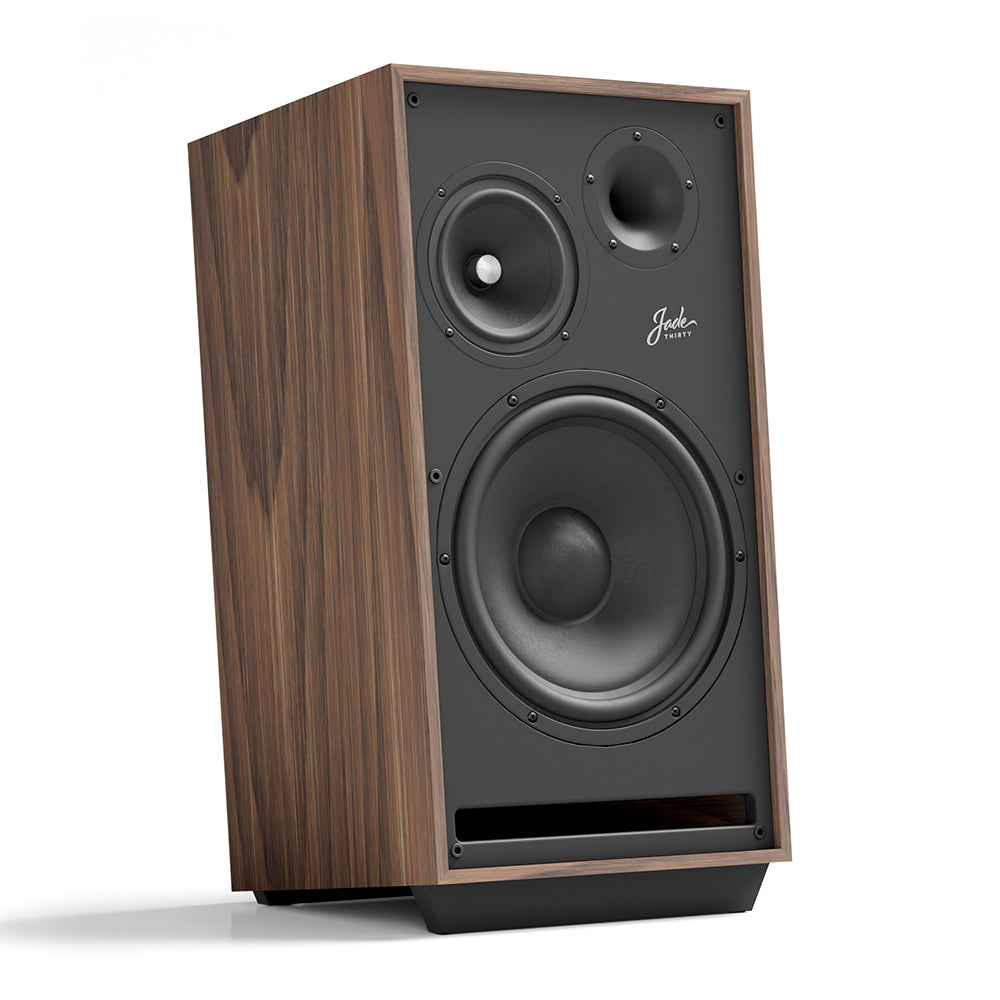

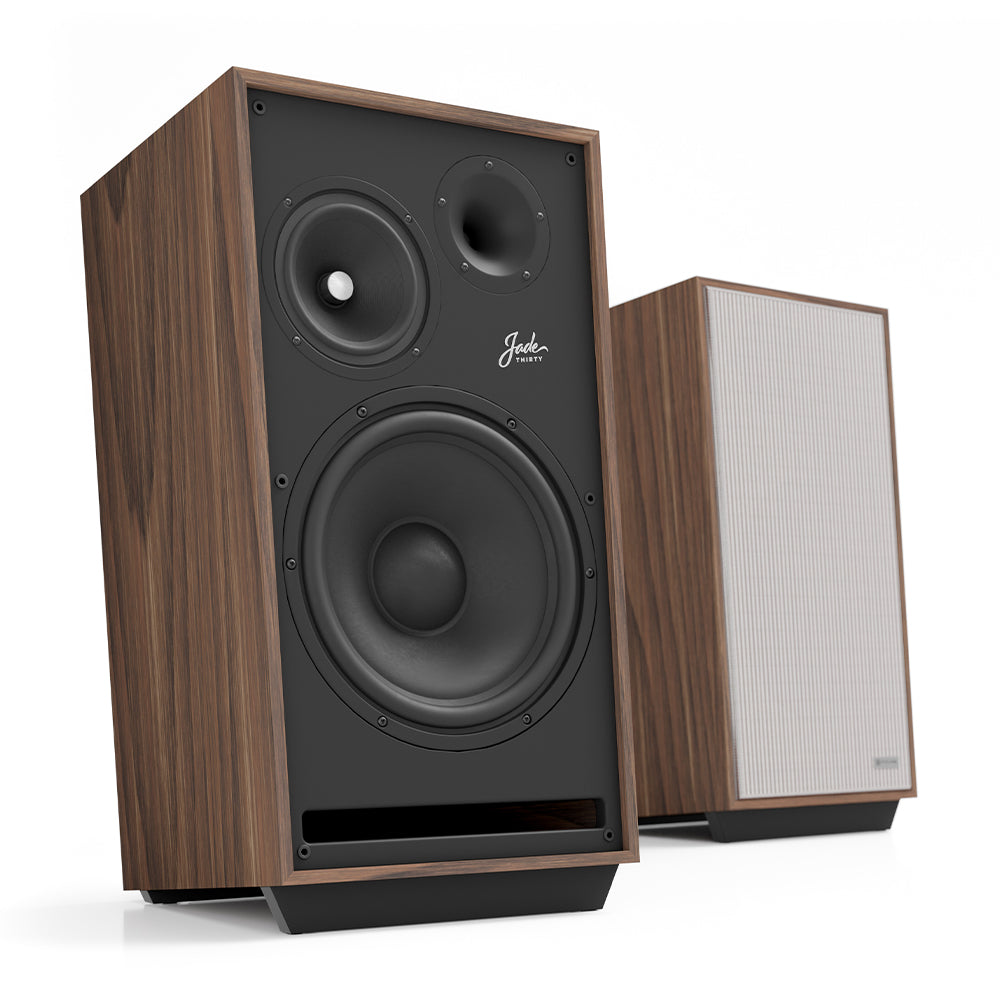

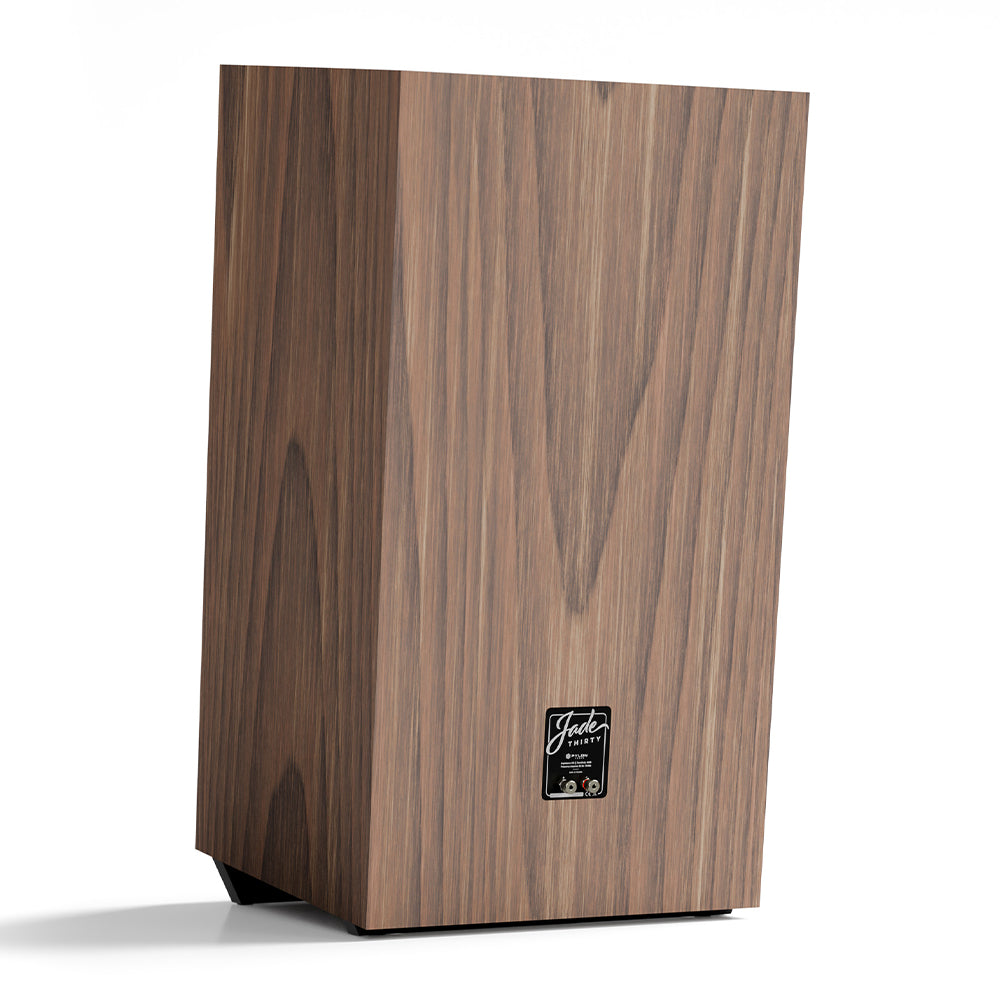

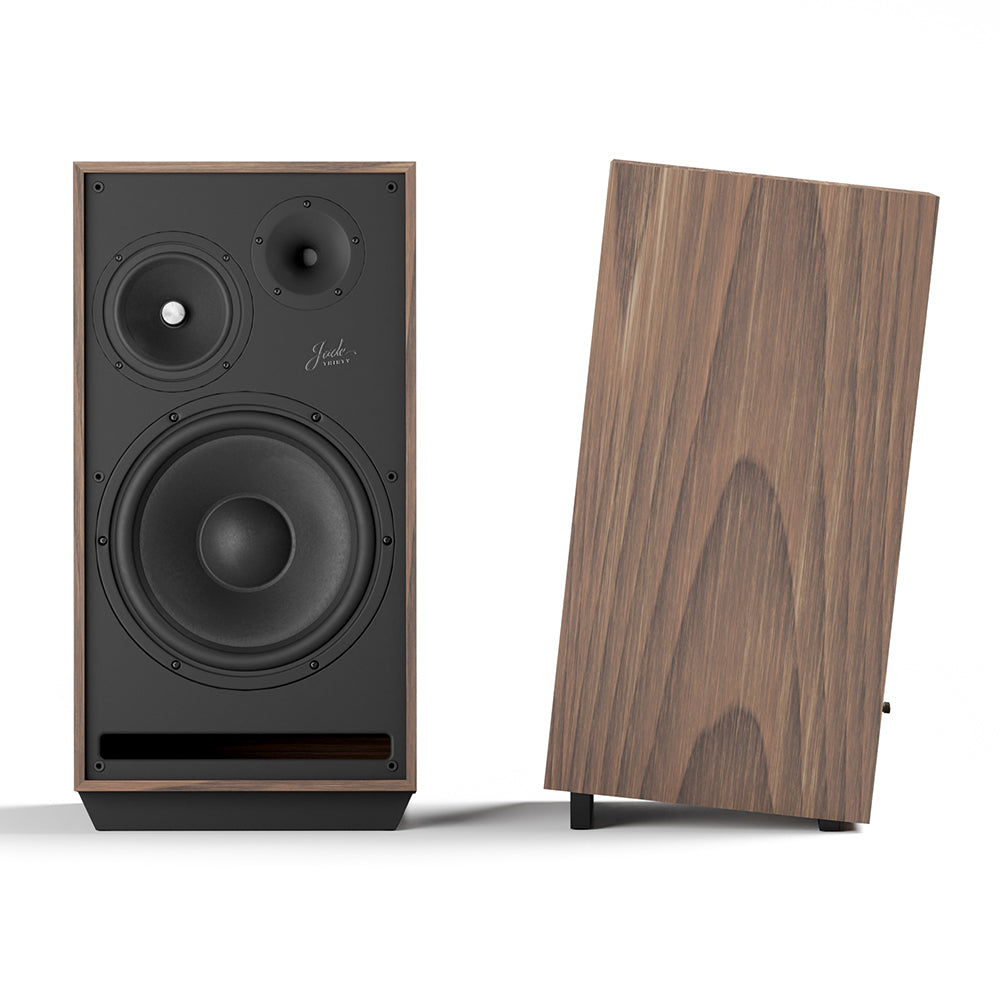

Pylon Jade 30 – Flagship 3‑Way Floorstanding Loudspeakers

The Pylon Jade 30 represents the pinnacle of Pylon Audio’s engineering and craftsmanship. These reference‑grade loudspeakers are designed for listeners who demand uncompromising performance, precision, and musical realism. Combining advanced driver technology with a meticulously constructed cabinet, the Jade 30 delivers a sound experience that is both powerful and refined.

As the flagship of the Jade series, the Jade 30 integrates high‑efficiency transducers and a massive, acoustically inert enclosure to provide lifelike dynamics, expansive soundstage, and effortless control across the entire frequency range. Every component—from the crossover to the driver selection—has been optimized for transparency, speed, and tonal balance.

Acoustic Design

The Jade 30 is a three‑way bass‑reflex design featuring a 15‑inch bass driver, a 6.5‑inch midrange, and a high‑performance compression tweeter from BMS. The system achieves stunning dynamics and room‑filling presence, yet remains remarkably coherent and natural even at low playback levels.

The large woofer provides deep, controlled bass extension down to 32 Hz, while the dedicated midrange driver ensures clarity and tonal richness through the vocal region. The compression tweeter offers fast, detailed treble with superb dispersion and precision imaging.

Cabinet & Build Quality

The Jade 30’s cabinet is built from thick, vibration‑damped MDF panels with multiple internal braces to suppress resonance. The bass‑reflex ports are carefully tuned to maintain linear response and eliminate turbulence. The front baffle is slightly contoured to improve phase alignment and imaging accuracy. Each enclosure is hand‑finished in Pylon’s factory in Poland using premium natural veneers or high‑gloss lacquers.

Weighing 55 kg per speaker, the Jade 30 is engineered as a true full‑range transducer—solid, stable, and acoustically inert. Magnetic grilles and adjustable spikes are included for precise placement and acoustic optimization.

Technical Specifications

• Type: 3‑way floorstanding, bass reflex
• Drivers:
  • Tweeter: 1 × BMS compression driver
  • Midrange: 1 × 6.5‑inch (165 mm) Pylon cellulose‑based cone
  • Woofer: 1 × 15‑inch (380 mm) Pylon custom low‑frequency driver
• Frequency Response: 32 Hz – 20 kHz
• Sensitivity: 93 dB / 2.83 V @ 1 m
• Nominal Impedance: 8 Ω
• Recommended Amplifier Power: 30 – 350 W
• Cabinet Construction: MDF with internal bracing and acoustic damping
• Enclosure Finish: Natural veneer or high‑gloss lacquer options
• Dimensions (W × H × D): 480 × 934 × 460 mm
• Weight: 55 kg each
• Included Accessories: Magnetic grilles, floor spikes, user manual

Ideal Applications

• High‑end stereo systems and dedicated listening rooms
• Large spaces requiring effortless dynamics and low‑frequency depth
• Listeners seeking natural tonal balance and holographic soundstage
• Vinyl, SACD, and high‑resolution streaming playback

Sound Character

• Authoritative and extended bass with precise control
• Open, expressive midrange revealing natural timbre and texture
• Airy, dynamic treble with lifelike detail and scale
• Expansive soundstage and pinpoint imaging
• Effortless dynamics even at concert‑level playback

The Pylon Jade 30 is more than a loudspeaker—it is a statement in acoustic design. With its combination of high sensitivity, full‑range performance, and handcrafted artistry, it embodies the philosophy that true high fidelity should move both the mind and the senses.

Handcrafted in Poland • 5‑Year Manufacturer Warranty
