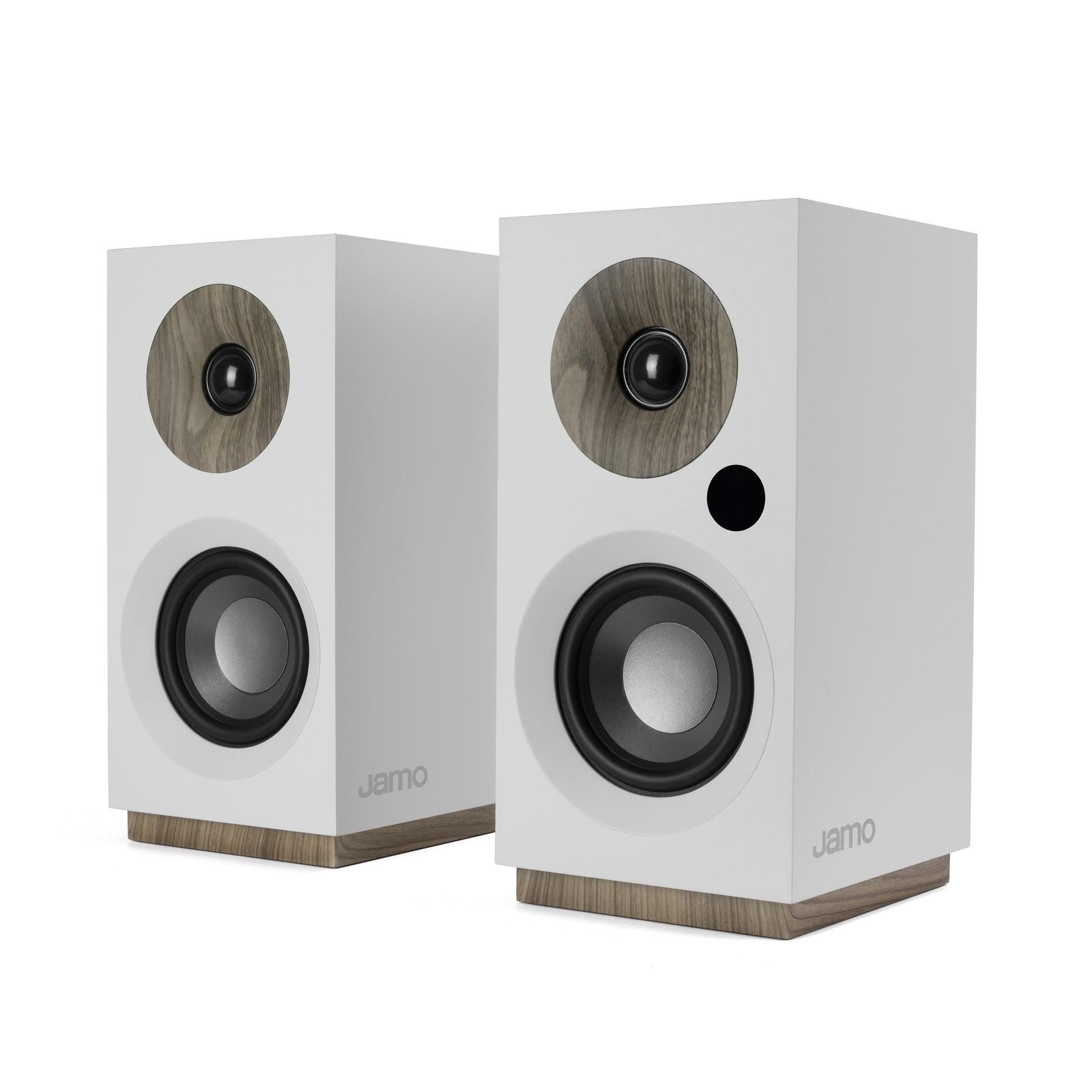

JAMO - S 801 PM POWERED MONITORS

MODERN DESIGN AND PERFORMANCE

The Jamo Studio 8 Powered speakers feature contemporary materials and minimal ist Danish design in compact, wireless cabinets wit h integrated power for a simple yet powerful sound experience.

INTEGRATED TECHNOLOGY FOR SIMPLE SETUP

The S 801 PM is ready to play, right out of t he box. The built-in amplifier wit h Bluetooth, analog, USB inputs and a subwoofer output provide simple connect ions for a full and easy to use sound experience.

SMALL CABINET, BIG SOUND

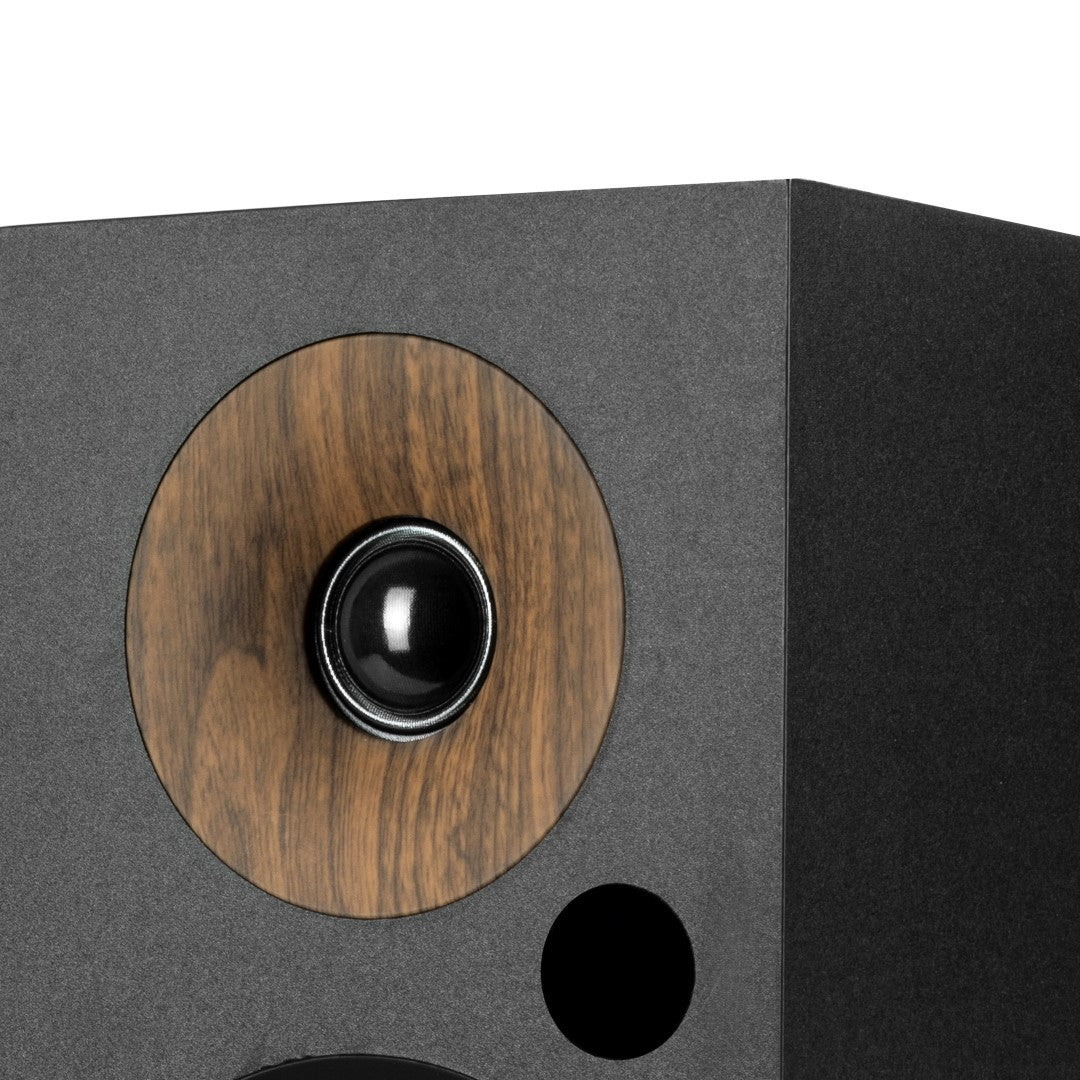

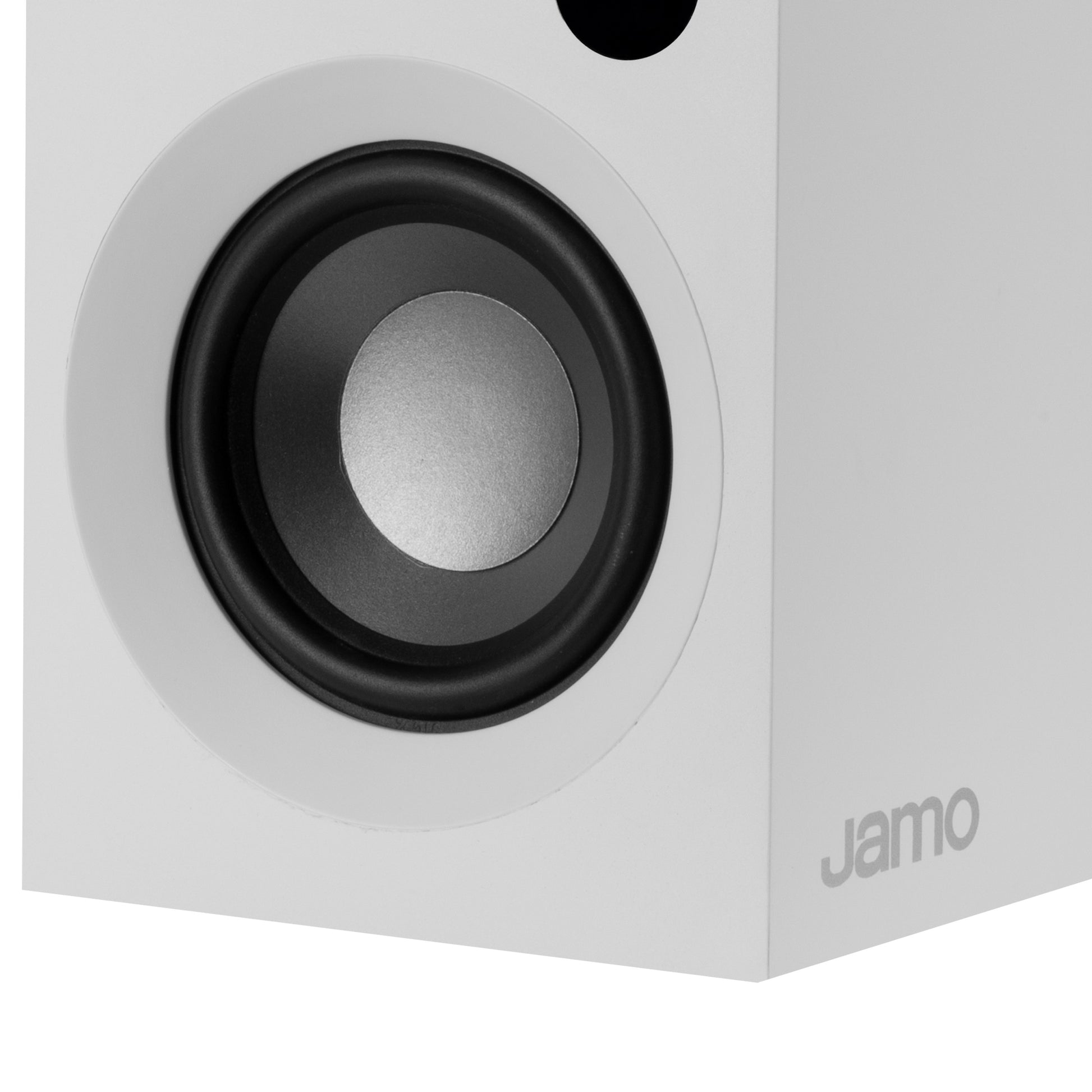

Utilizing 1” soft dome tweeters for smoot h, refined high frequencies and a 4” polyfiber woofer for balanced musical low end, t he compact cabinets of t he S 801 PM al low for extremely versatile placement opt ions while treating the listener to dynamic, true-to-life audio reproduction. The S 801 PM is specifically designed to provide exceptional output and balanced, full sound in any application despite t he small stature.

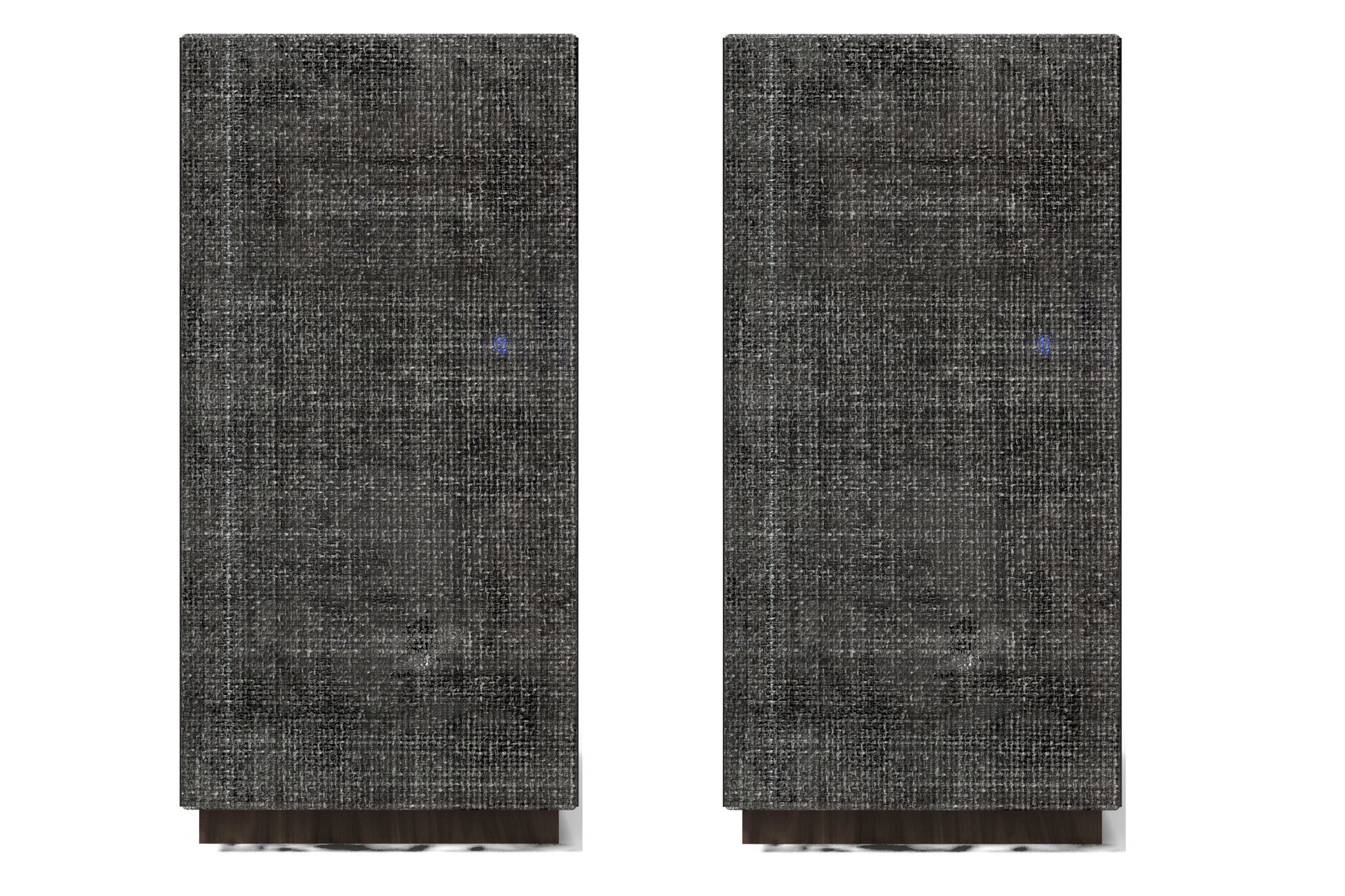

MAGNETIC GRILLES

Fully magnetic grilles – no mounting holes or push pin provide a clean, minimalistic front baffle design, while t he large woven linen grille cloth creates visual interest with heavy texture.

SPECIFICATIONS

FREQUENCY RESPONSE - 76Hz - 26kHz
SENSITIVITY - 85dB (2.83V @ 1m)
TOTAL SYSTEM POWER - 48W Total System Power (96W Peak); 24W per channel cont. @ <%1 THD
NOMINAL IMPEDANCE - 8 Ohm
HIGH FREQUENCY DRIVER - 25mm (1”) Soft Dome Tweeter
LOW FREQUENCY DRIVER - 102mm (4”) Polyfiber Woofer
CROSSOVER - 1730 Hz (Passive)
ENCLOSURE MATERIAL - MDF

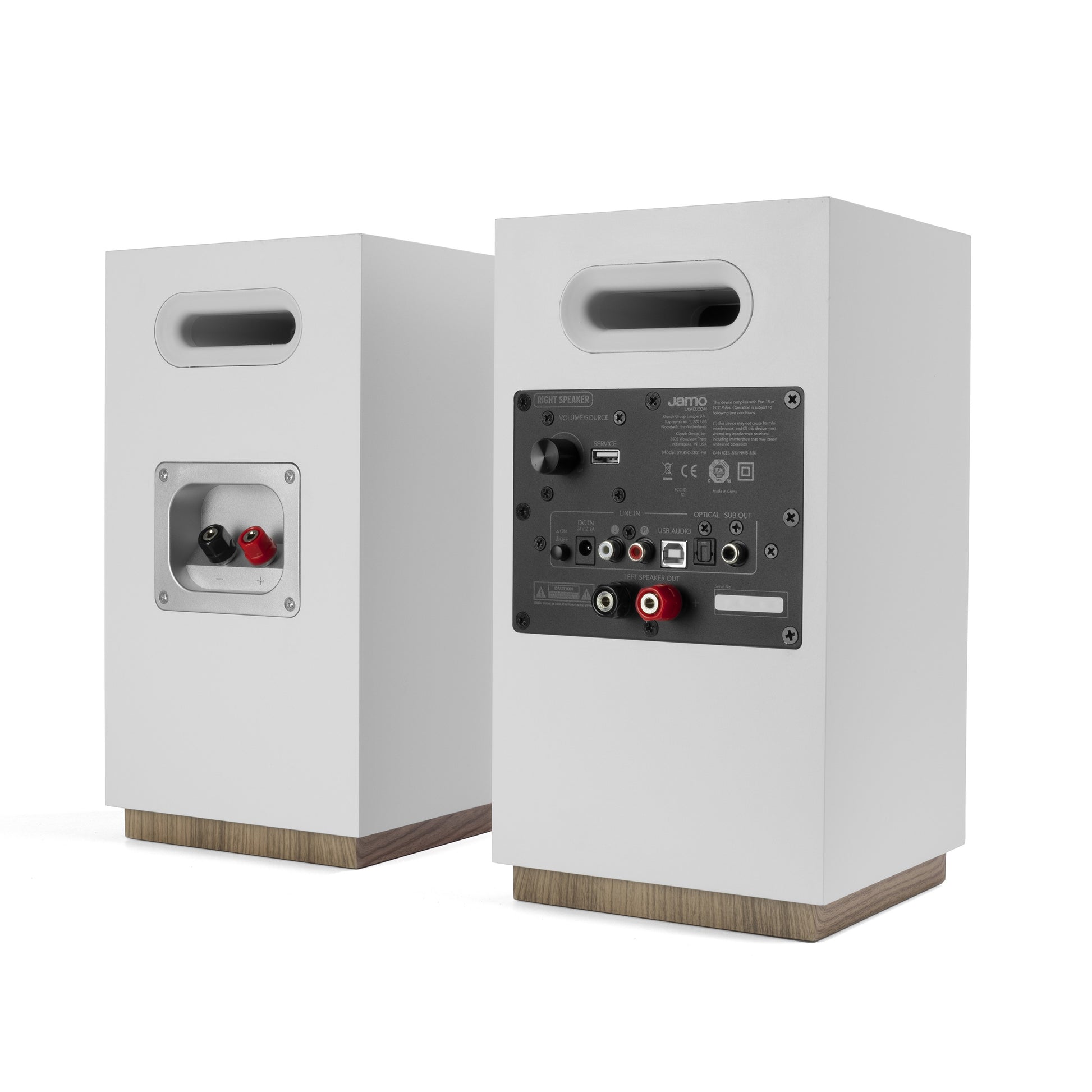

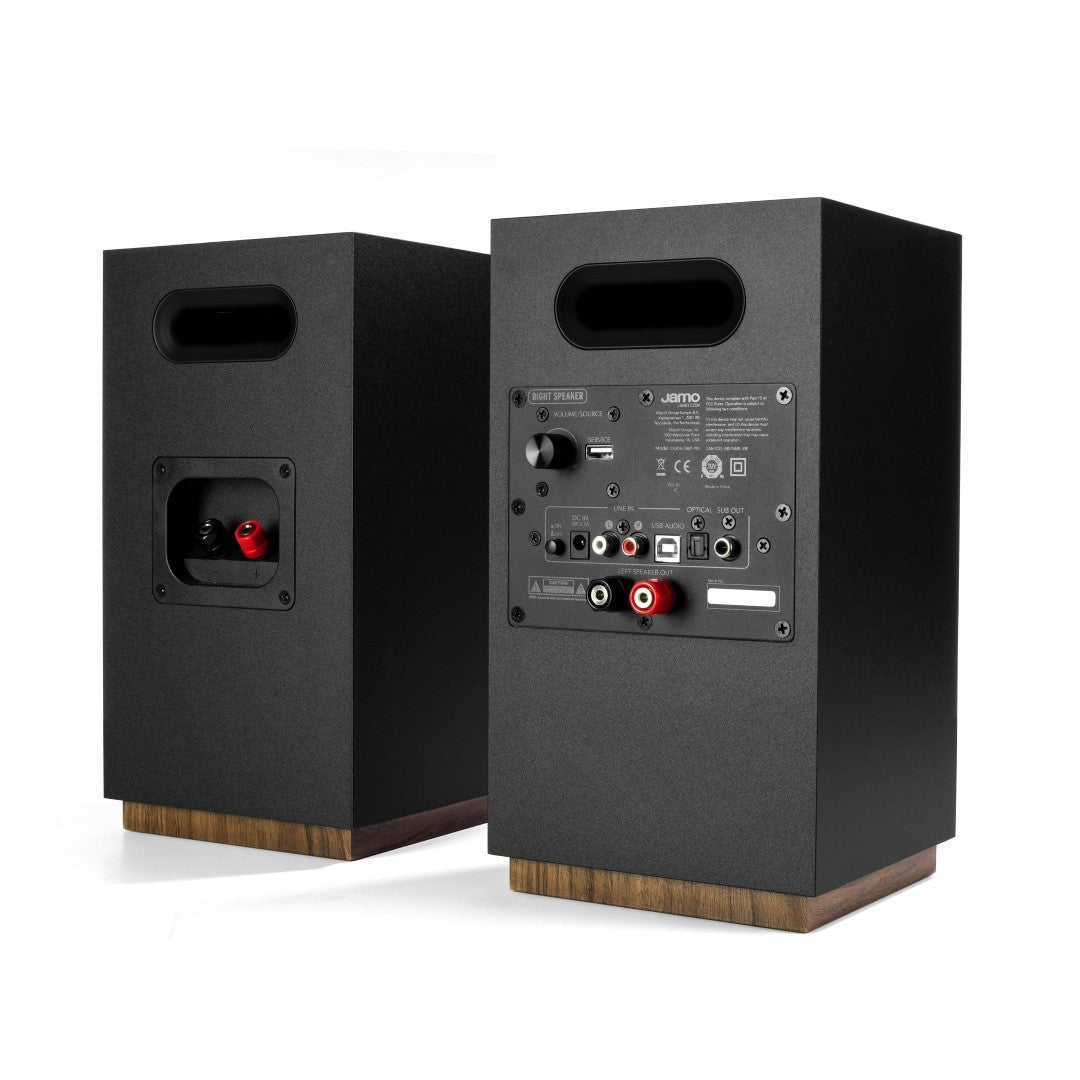

ENCLOSURE TYPE - Bass Reflex via Rear Firing Slot Port
VOLTAGE - 100-240V 50/60Hz External power supply
INPUTS - Bluetooth® wireless technology; RCA Line analog; USB digital; Optical digital
OUTPUTS - Subwoofer Output

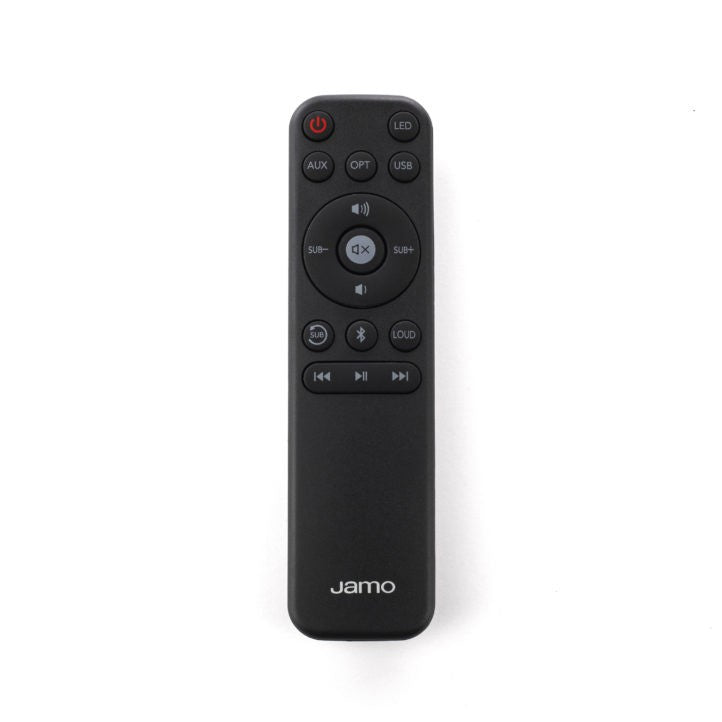

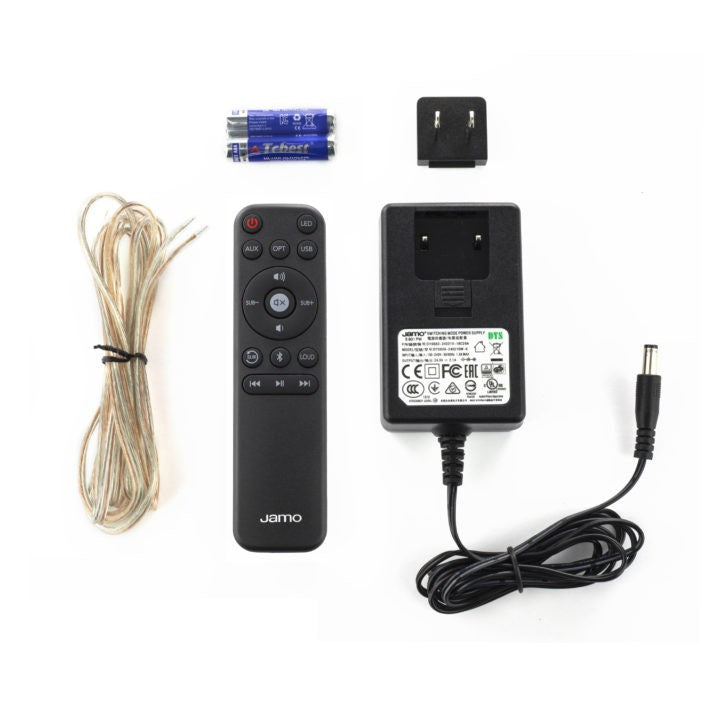

ACCESSORIES - Remote control; Power Supply (1.5M Region specific); Speaker Wire (4M); USB Type A to Type B cable (4M); AA batteries (2)
FINISHES - Black, White
DIMENSIONS (HxWxD) - 285mm x 156mm x 163mm (11.22” x 6.14” x 6.42”)
WEIGHT - 5.9 Lbs (Passive) / 6.5 Lbs (Active)
