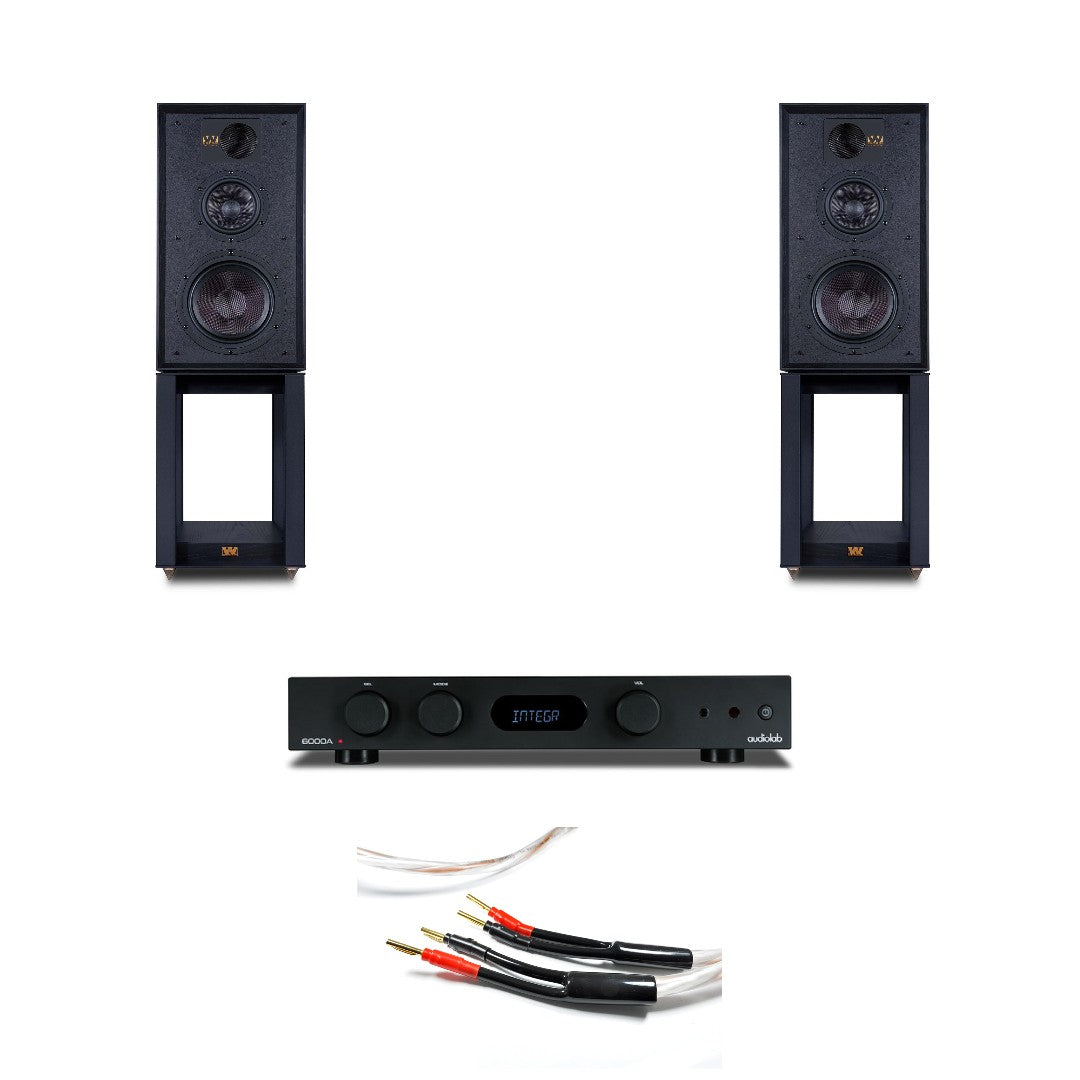

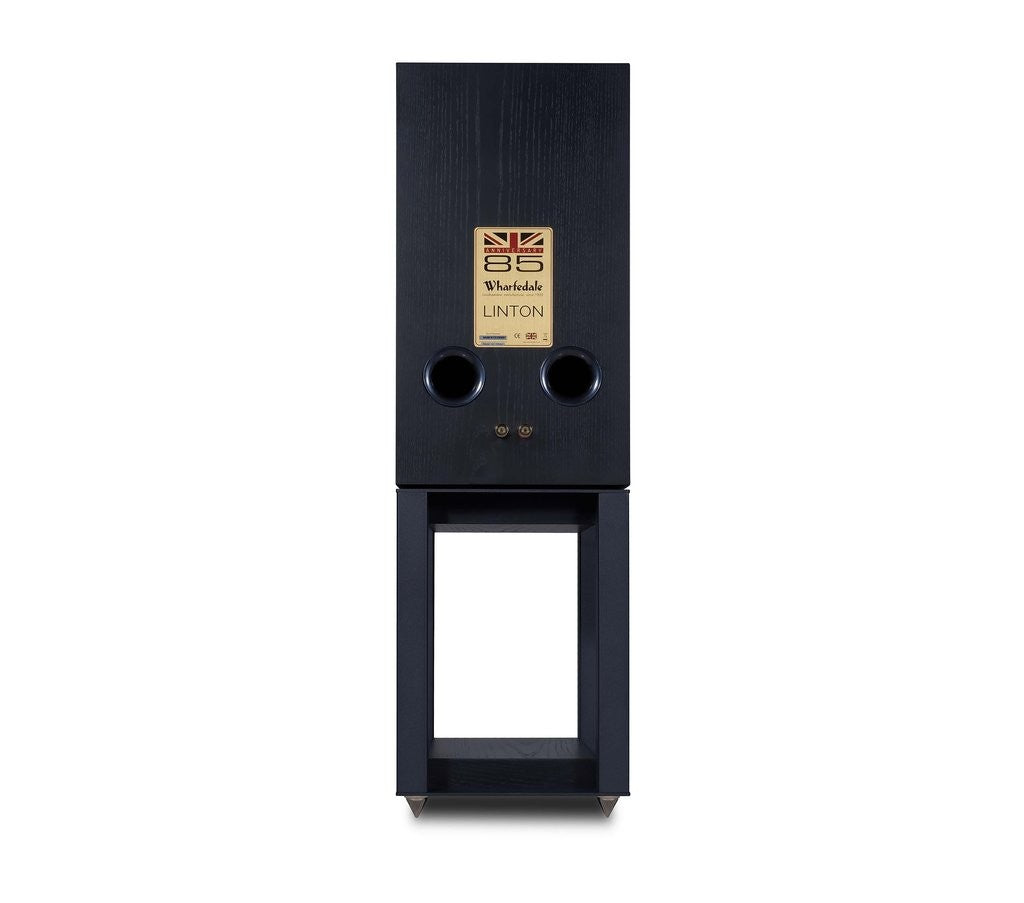

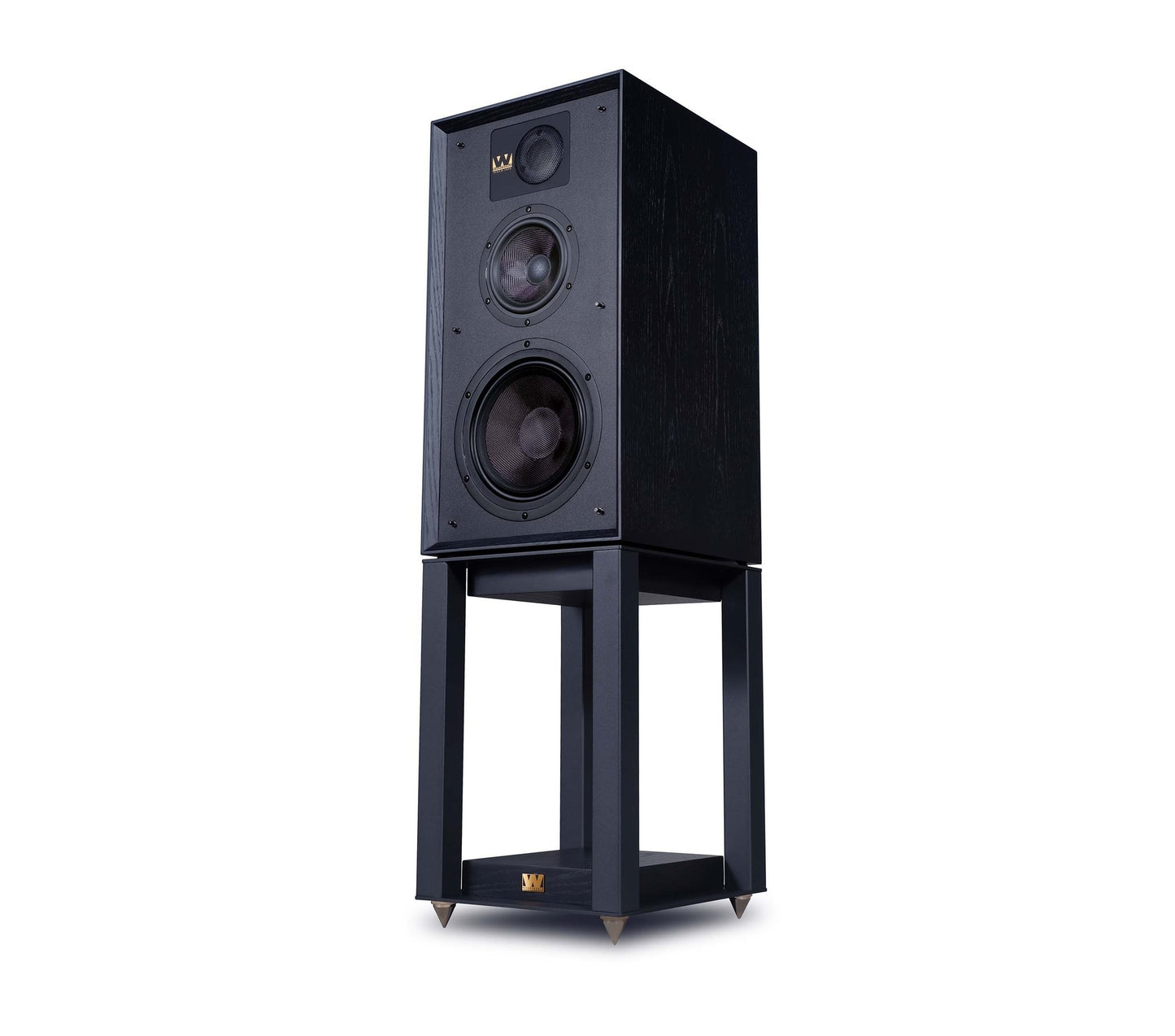

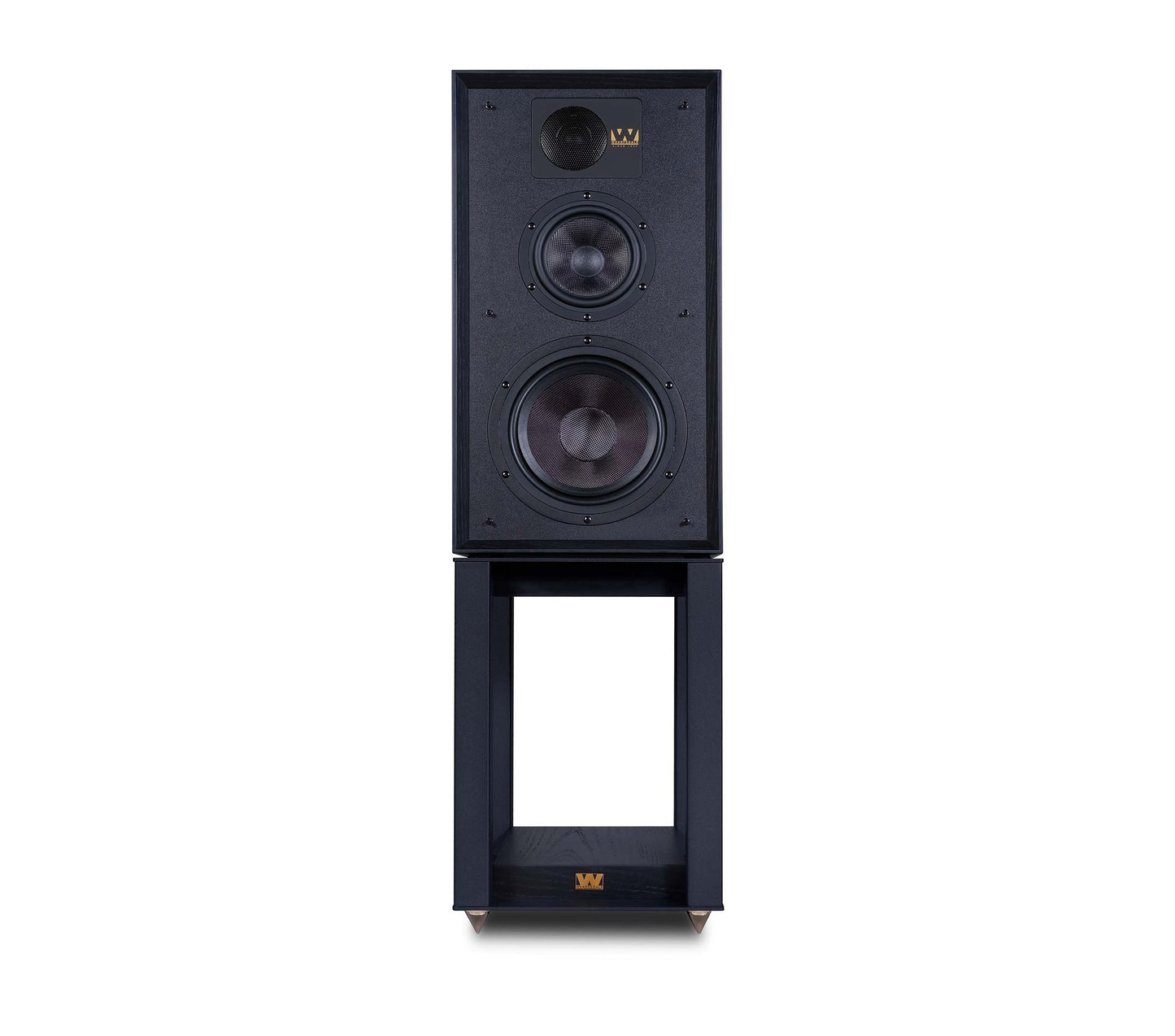

Black Pack - audiolab 6000a and Wharfedale Linton with stands

Black Pack - audiolab 6000a and Wharfedale Linton with stands

Regular price €2.699,00 EUR
Regular price Sale price €2.699,00 EUR
-% Sold out
Taxes included. Shipping calculated at checkout.

Backorder usually available within 2 to 7 days

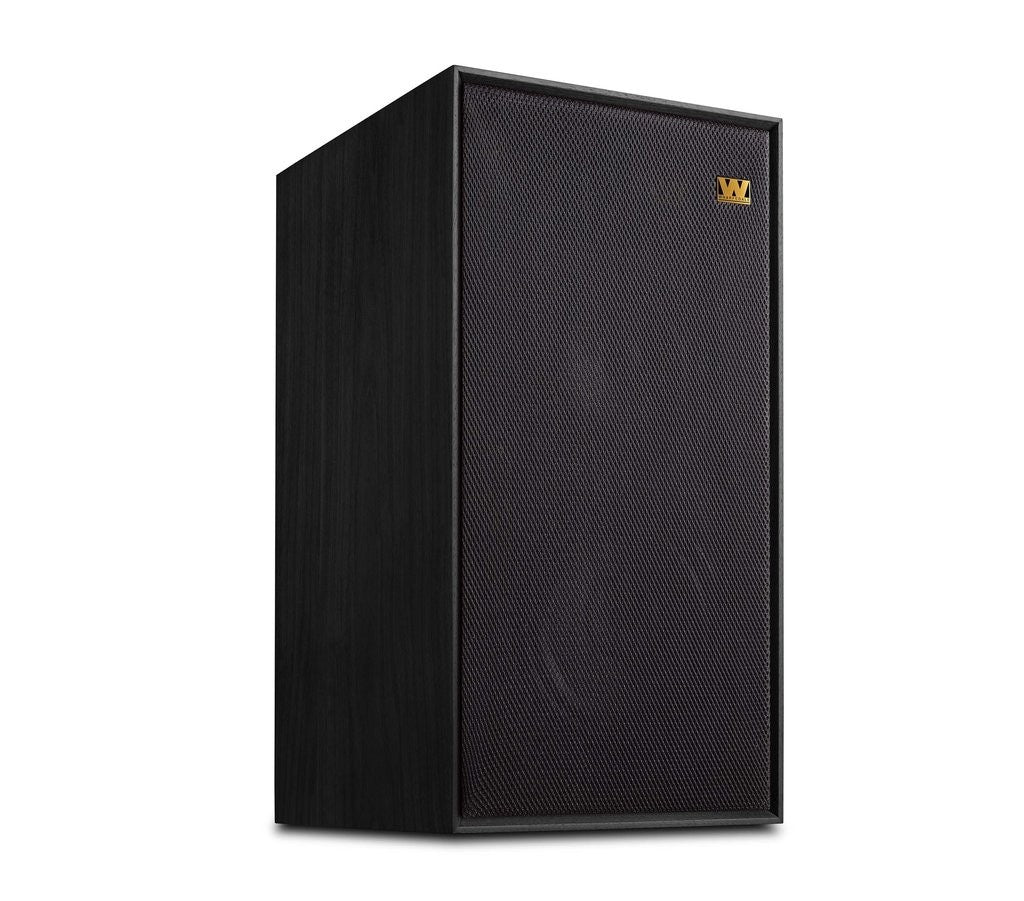

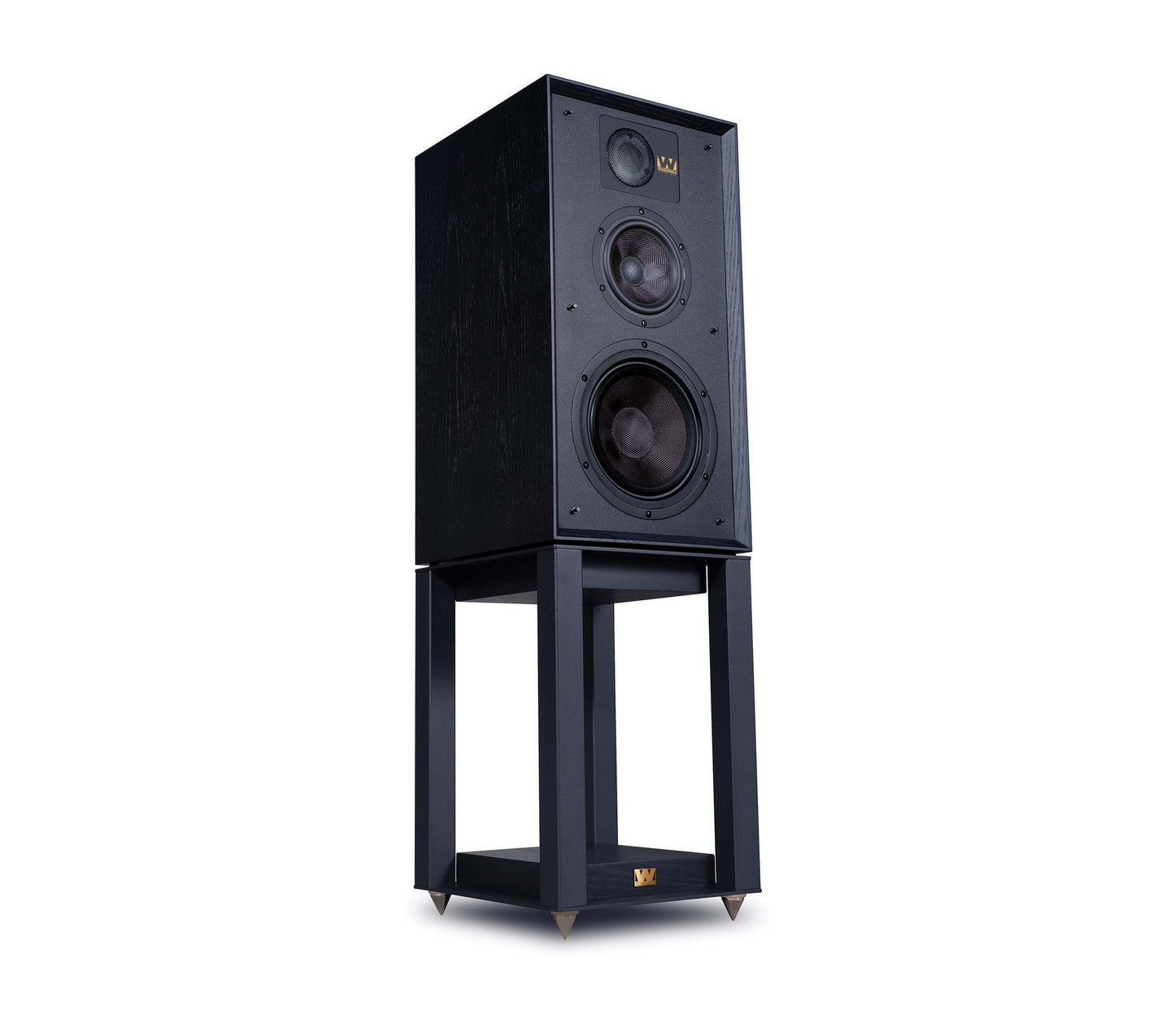

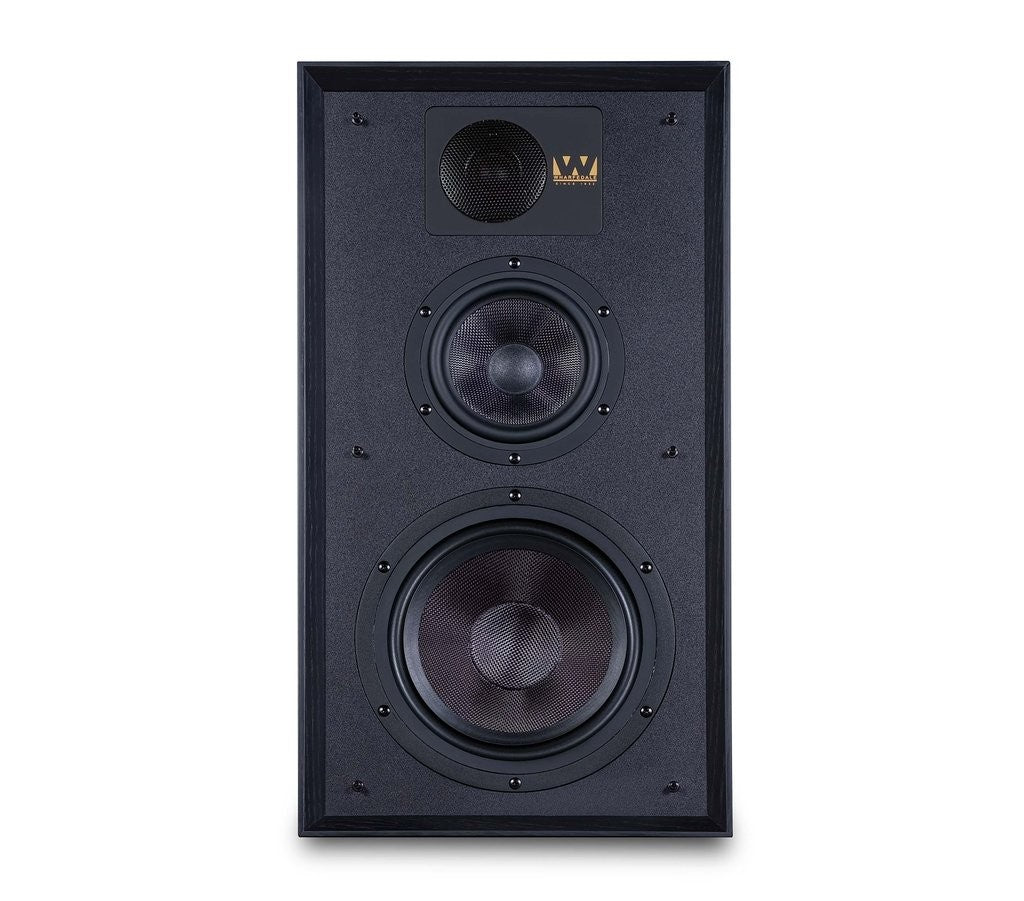

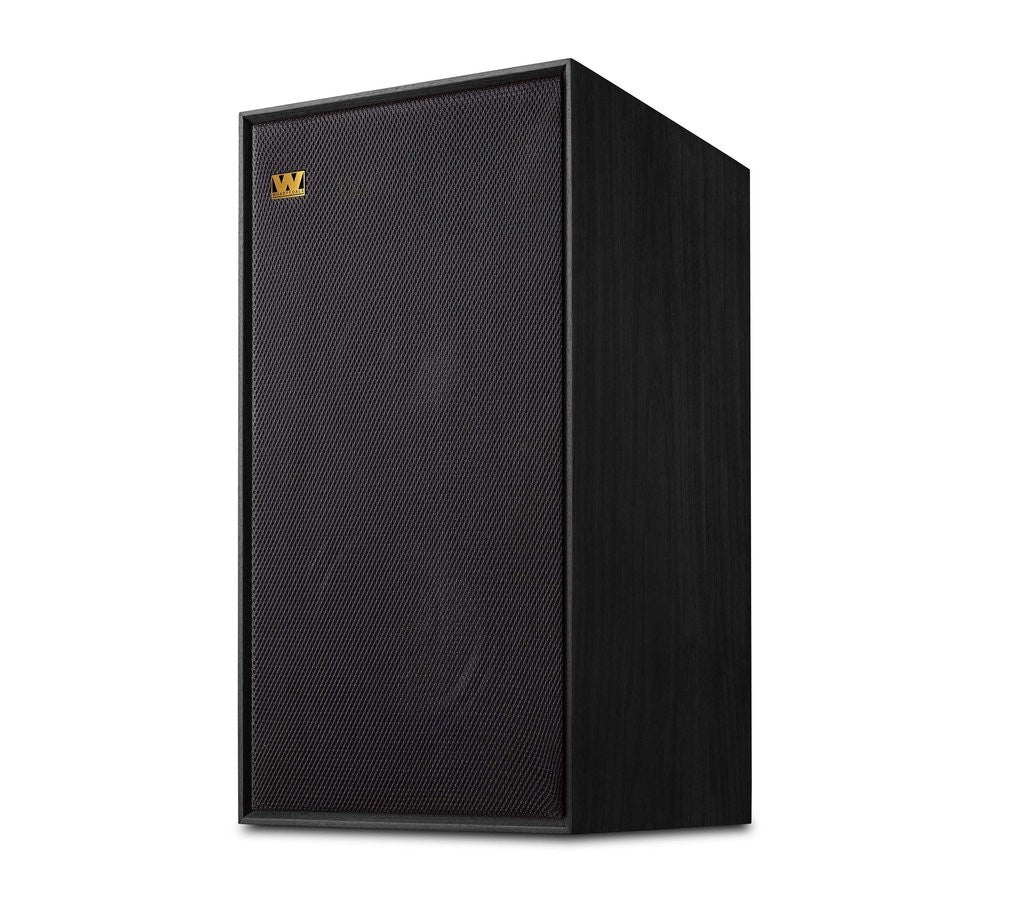

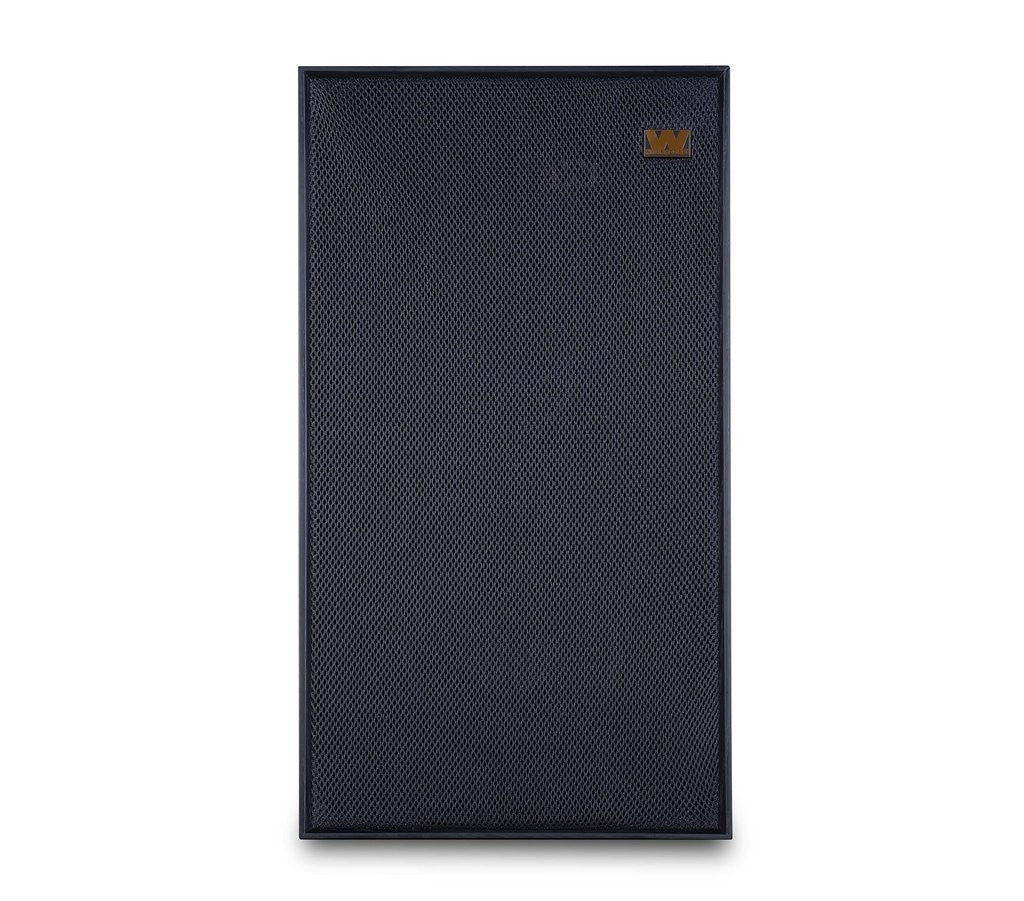

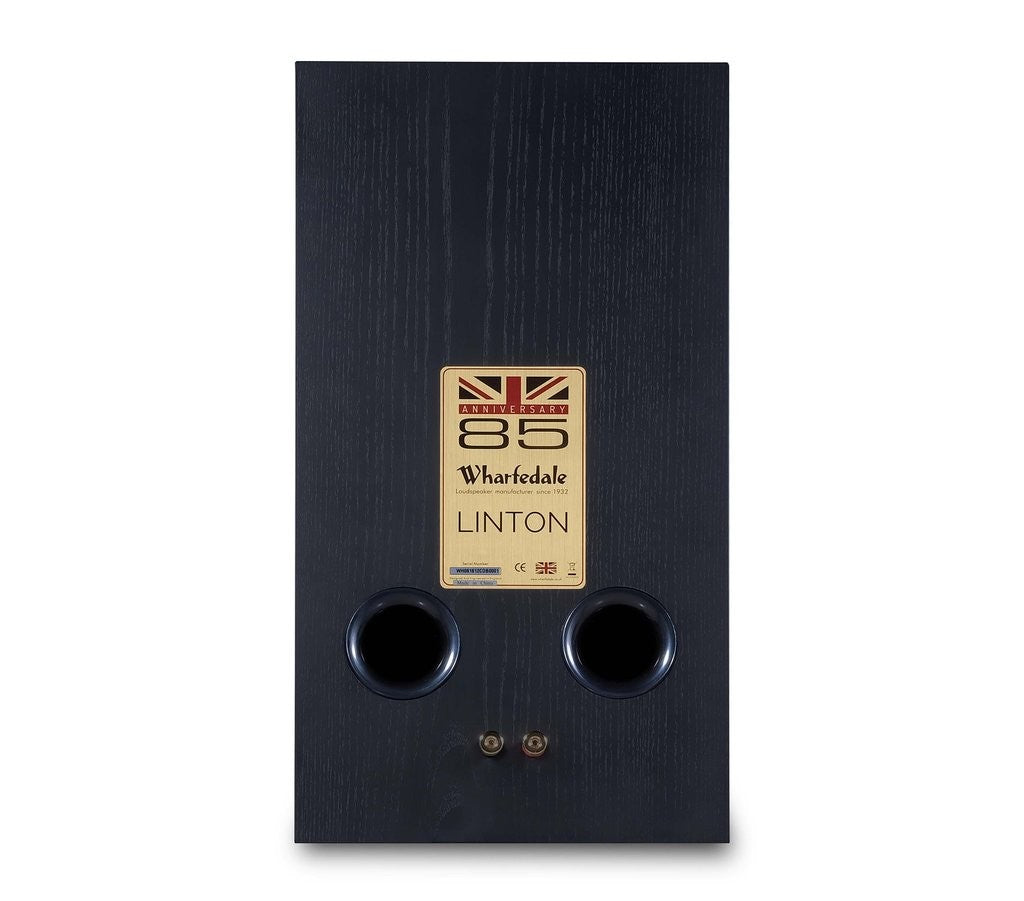

Wharfedale Linton Specifications

  • 3-way vented-box/standmount
  • Enclosure Type: Bass reflex
  • Transducer Complement: 3-way
  • Bass Driver: 8"(200mm) black woven Kevlar® cone
  • Midrange Driver :5"(135mm) black woven Kevlar® cone
  • Treble Driver: 1" (25mm) soft dome
  • AV Shield: No
  • Sensitivity (2.83v @1m): 90dB
  • Recommended Amplifier Power: 25-200W
  • Peak SPL: 110dB
  • Nominal Impedance: 6Ω
  • Minimum Impedance: 3.5Ω
  • Frequency Response(+/-3dB): 40Hz ~ 20kHz
  • Bass Extension(-6dB): 35Hz
  • Crossover Frequency: 630Hz & 2.4kHz
  • Height (on plinth): 565mm
  • Width: 300mm
  • Depth (with terminals): (330+30)mm
  • Net Weight: 18.4kg/pcs

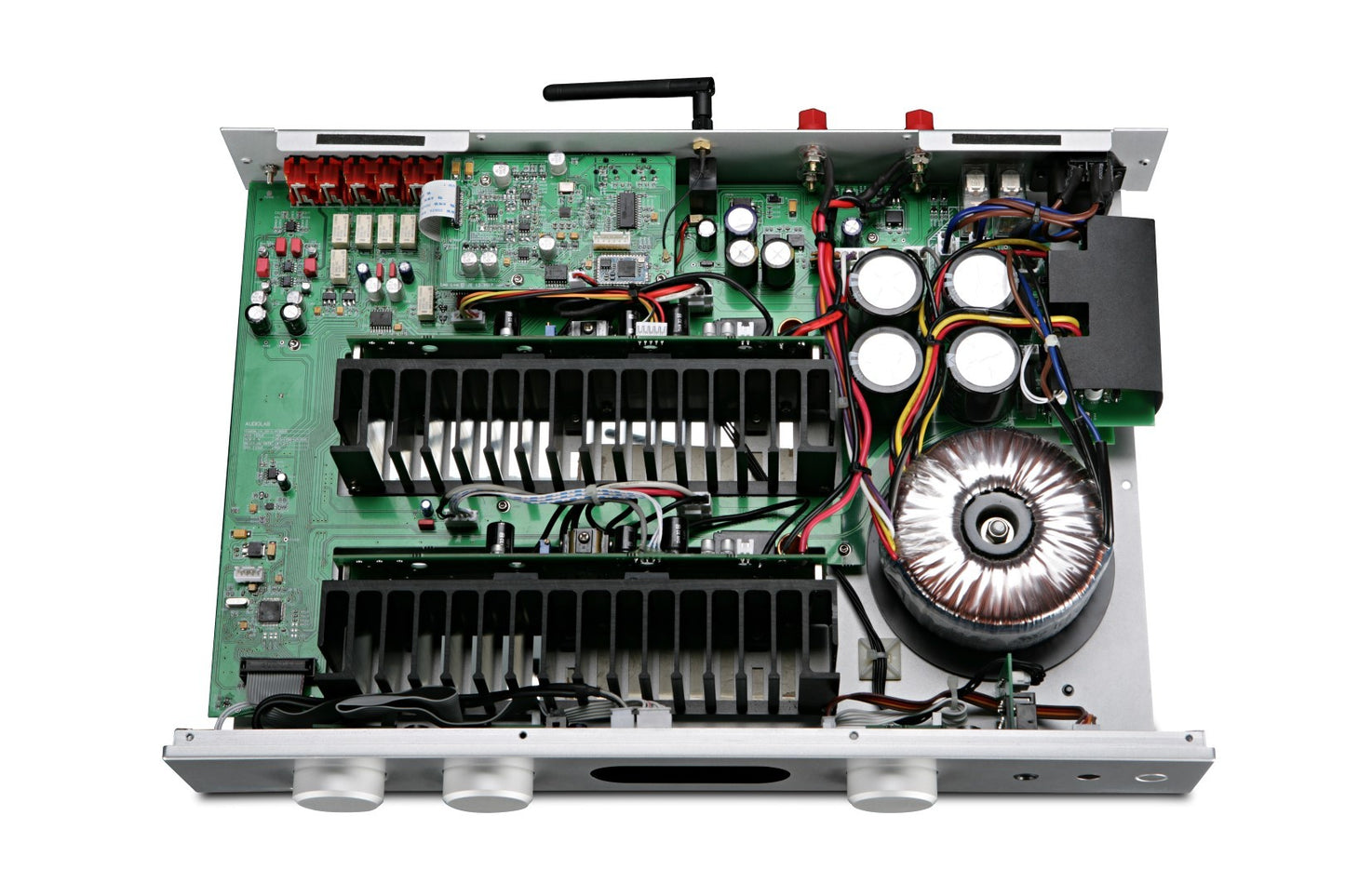

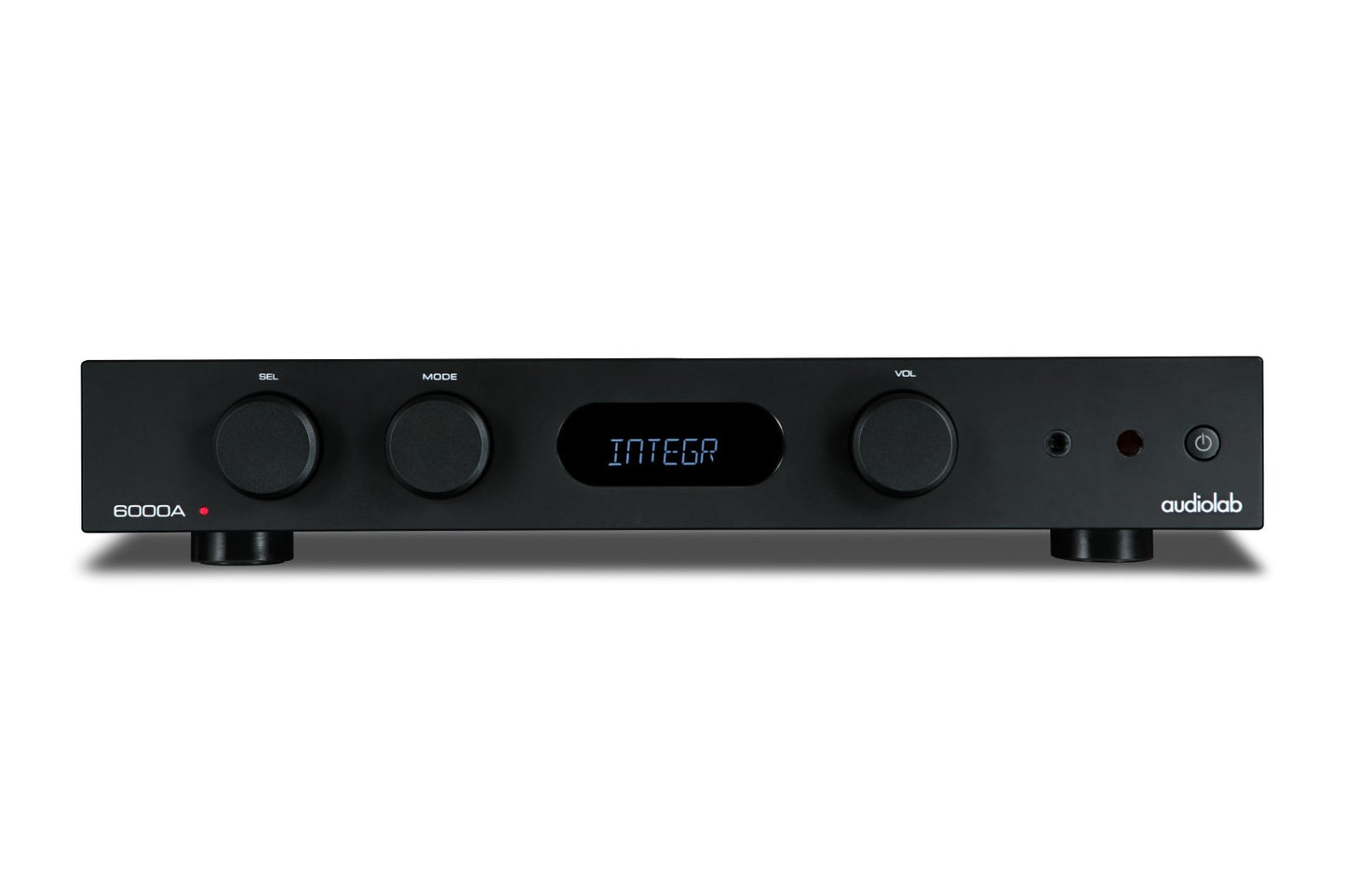

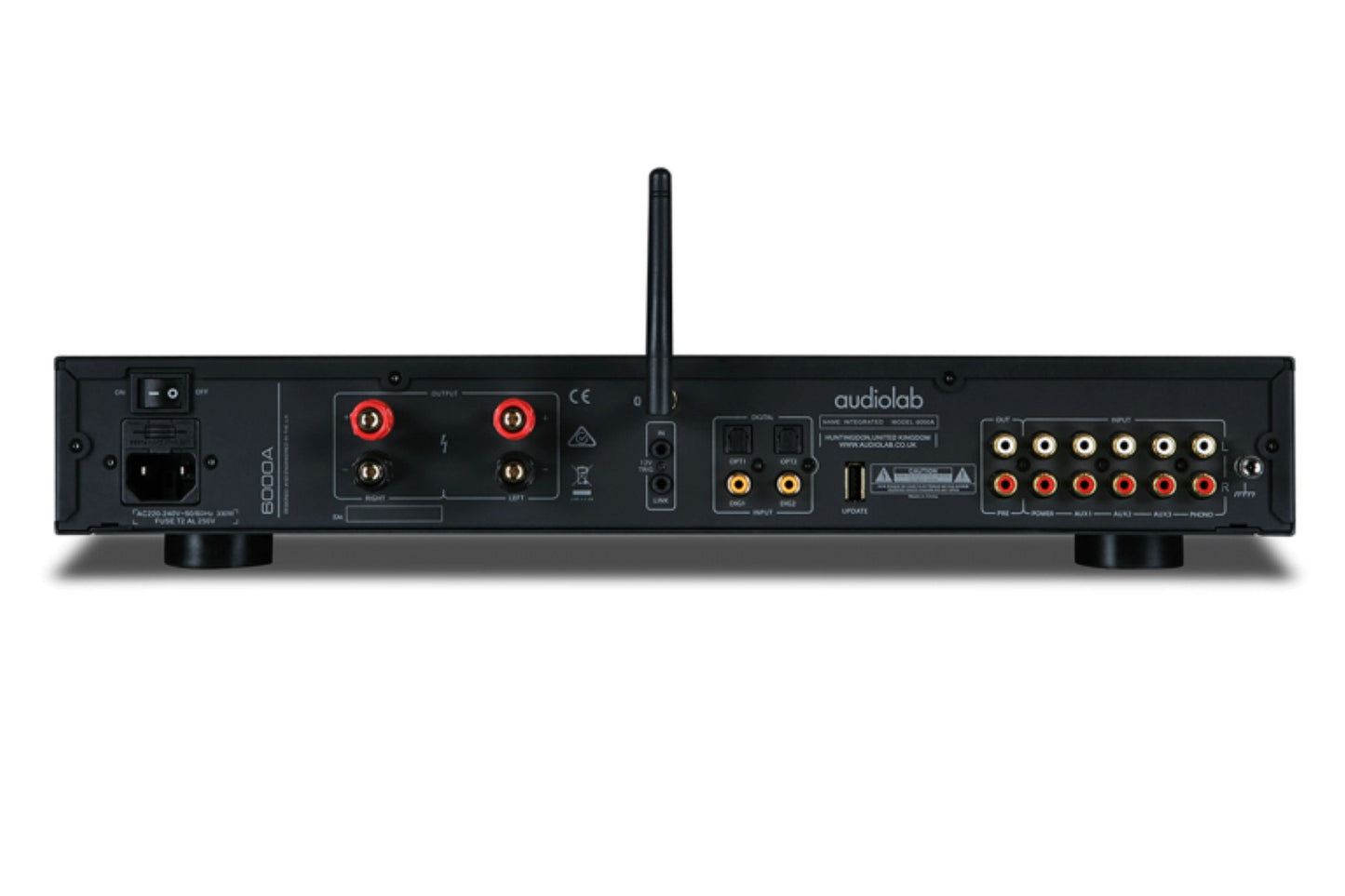

6000A Specifications
  • Gain (max.) +8dB (Line)
  • +55dB (Phono MM)
  • Input Sensitivity 720mV (Line, Volume = 0dB)
  • 3.1mV (Phono MM, Volume=0dB)
  • Input Impedance 10K (Line)
  • 47K//100pF (Phono MM)
  • Total Harmonic Distortion (THD) < 0.0004% (Line, 1KHz @ 2V, Volume = 0dB)
  • Frequency Response 20Hz-20kHz (+/-0.1dB)
  • Output Voltage 2.3V max. (Volume = 0dB)
  • Output Impedance 120Ω
  • Signal-to-Noise Ration (S/N) > 110dB (Line, A-weighted); >76dB (Phono MM, A-weighted)
  • D to A converter ES9018K2M
  • Total Harmonic Distortion (THD) < 0.0006% (1kHz @ 0dBFS)
  • Output level (0dBFS, 1KHz) 2.05V
  • Max. Sampling Frequency 192kHz
  • Signal-to-noise ratio (S/N) > 112dB (A-weighted)
  • Digital Filters Fast Roll-off , Slow Roll-off , Minimum Phase
  • Power Amplifier Section
  • Gain +29dB
  • Rated Max. Power Output 2 X 50W (8Ω, THD<1%)
  • 2 X 75W (4Ω, THD<1%)
  • Frequency Response 20Hz-20kHz (+/-0.3dB)
  • Input Sensitivity 720mV
  • Total Harmonic Distortion (THD) <0.003% (1kHz @ 40W/8Ω)
  • Signal-to-Noise ratio (S/N) > 110dB (A-weighted)
  • Max. Output Current 9A
  • Headphone Amplifier
  • Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
  • Output Impedance 2.35Ω
  • Load impedance 20-600Ω
  • Standby Power Consumption <0.5W
  • Power Requirements 240V ~ 50 - 60Hz; 230V ~ 50 - 60Hz; 115V ~ 50 - 60Hz; 100V ~ 50 - 60Hz
  • Dimensions (mm) (W x H x D) 445 x 80 x 330mm including feet, terminals and controls
  • Carton Size (mm) (W x H x D) 512 x 467 x 146
  • Weight 7.8kg (Net)
