Lyngdorf - BW-20

High-performance boundary woofers

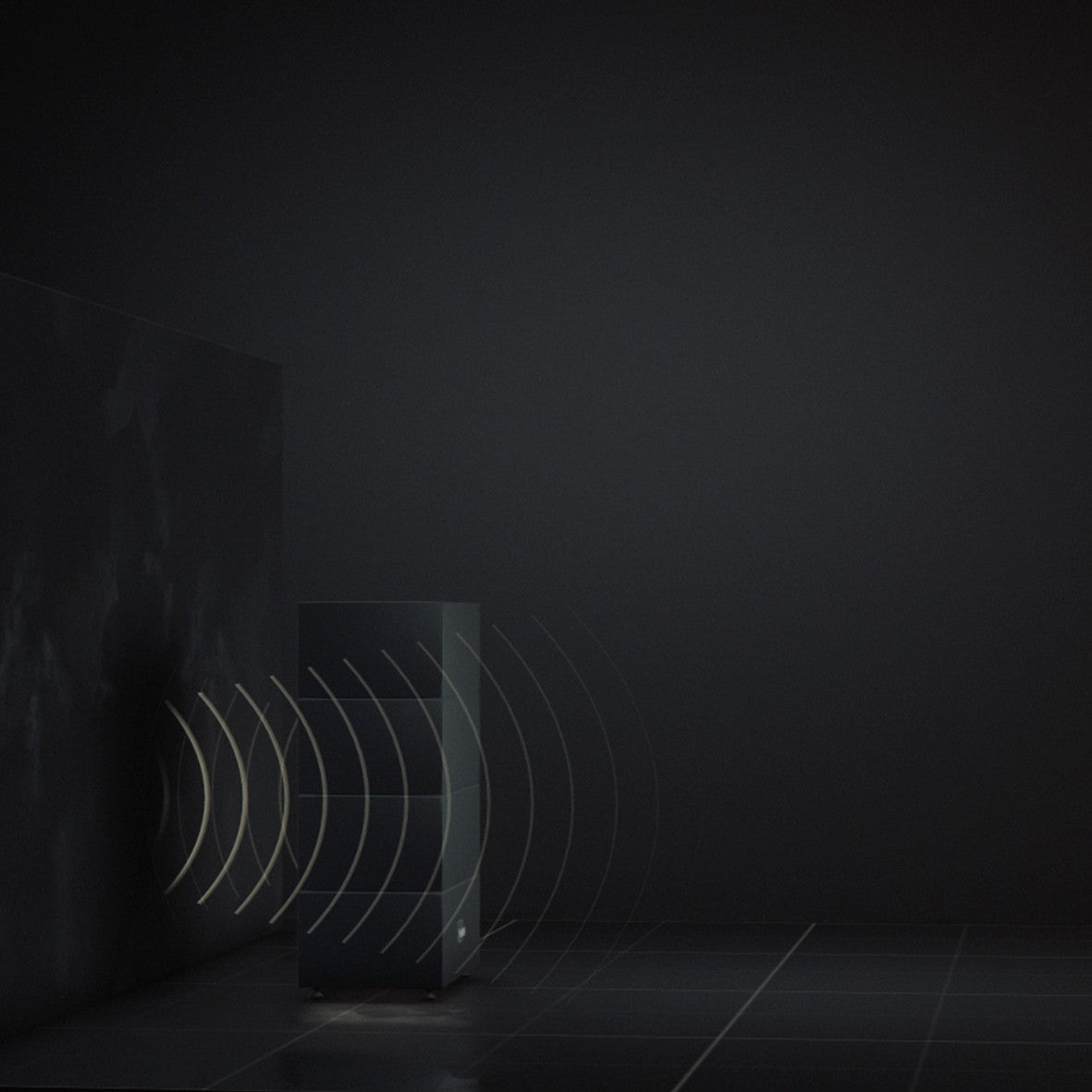

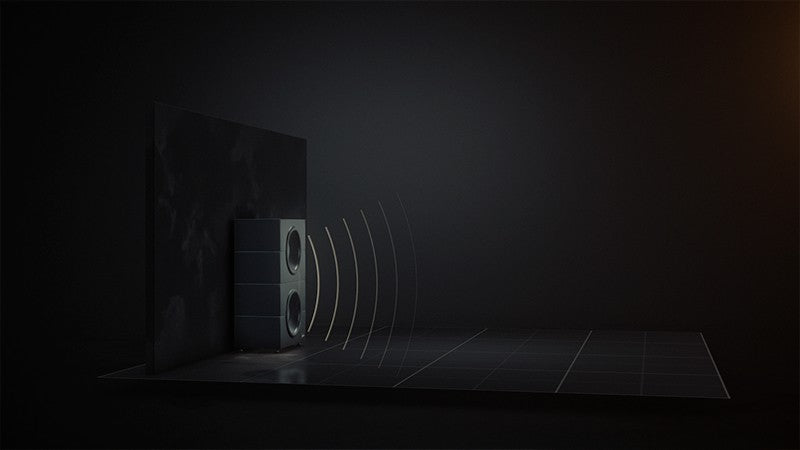

BW stands for Boundary woofer – a Lyngdorf approach where a subwoofer is designed to be placed near the wall boundaries to achieve the best bass response. A boundary woofer avoids reflected bass bouncing off the back wall and side walls, instead taking advantage of room acoustics.

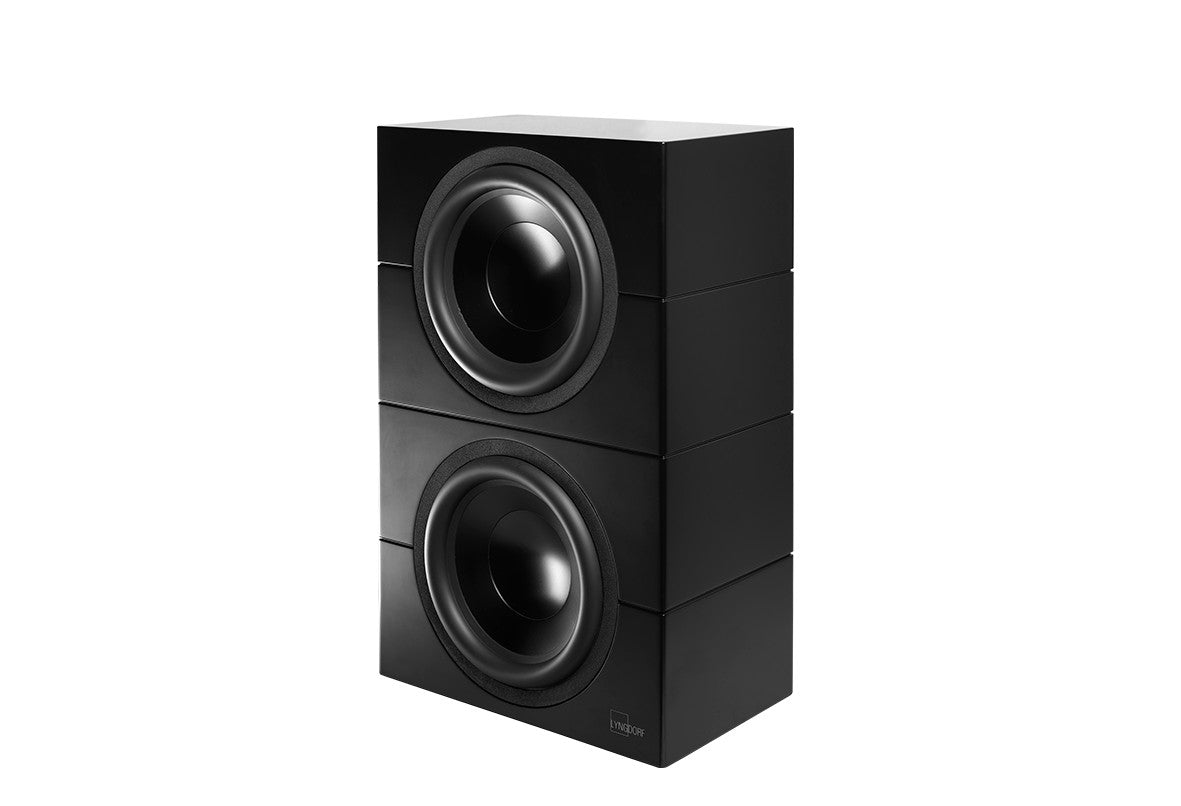

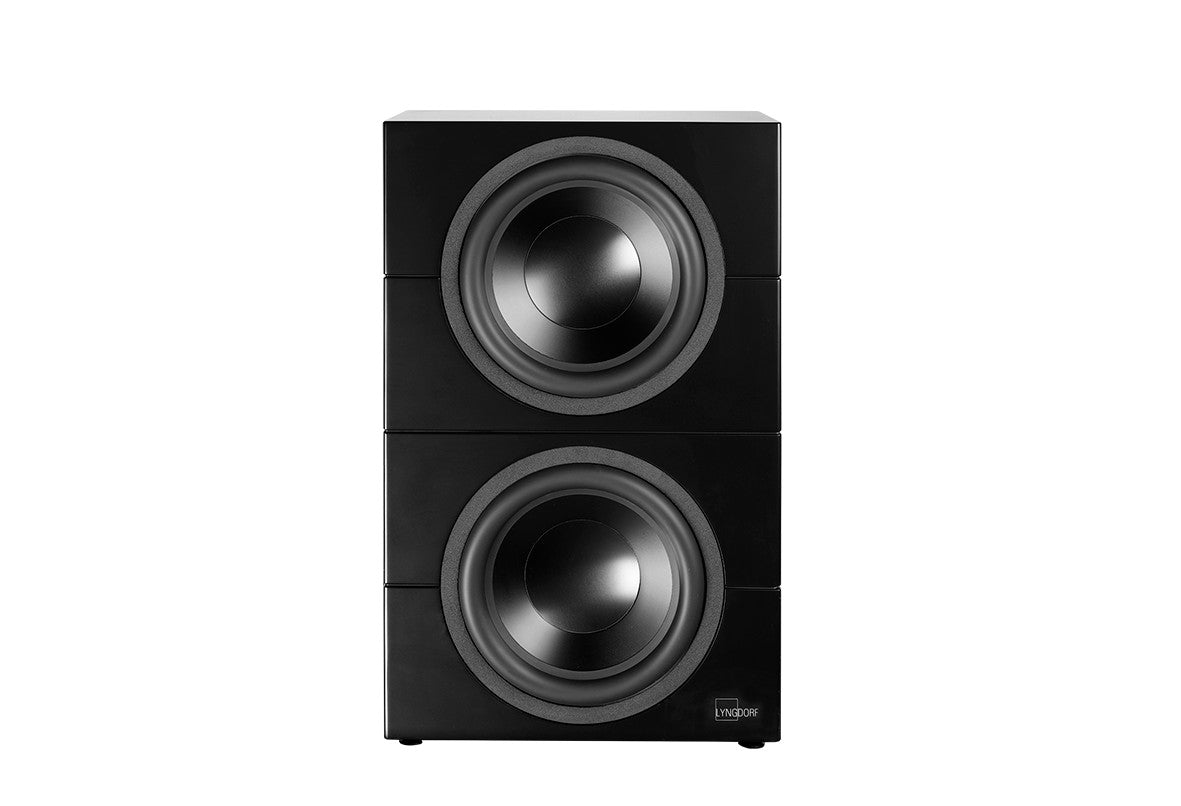

Two high-performance 12” woofers are equipped with large vented magnets, double spiders, and aluminum cones. The high-excursion design allows an excursion of +/- 20mm and enables the BW-20 to play the lowest frequencies at a very high volume level.

High-bandwidth design

The BW-20 is a high-bandwidth woofer design, reaching down to 20Hz but also up to 500Hz. This allows a seamless integration with any front speaker size and any crossover filter type, and avoids the typical sound performance gap if the front speakers are not low-reaching full-range speakers.

Flexible placement

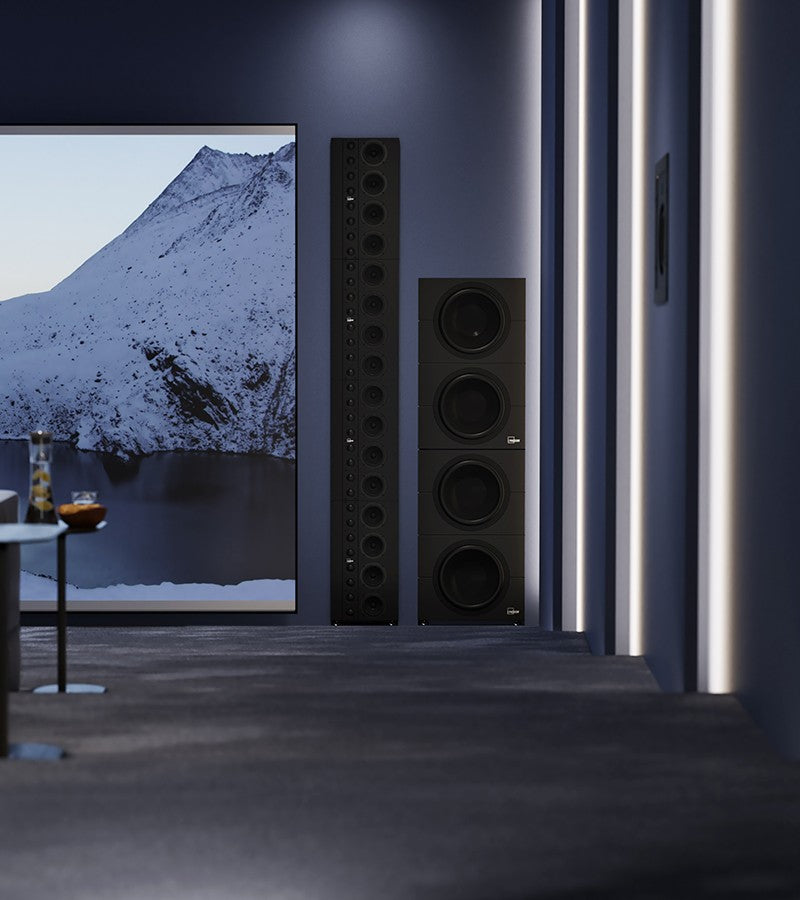

The overall construction with both woofers on one side, closet cabinet design, shallow cabinet depth and satin-matte finish allows both in-wall and in-room placement.

Specifications

• Description: Passive boundary woofer, closed
• Woofer: Two 12” long throw +/- 20mm, 67mm voice coil, aluminum cone, double
• spider, vented magnet
• Enclosure: MDF, closed 64 L net
• Frequency range: 19 – 500 Hz (-3 dB)
• Frequency extension depending on EQ
• Nominal Impedance: 4 Ohm
• Power handling: 700 W (IEC)
• Maximum SPL: 118 dB
• Connections: Neutrik speakON
• Mounting: Floor standing
• Dimensions (W x H x D): 450 x 710 x 270 mm / 17.7 x 28 x 10.6 inch
• (Cabinet without spike feet and woofer excursion)
• Weight: 35 kg / 77 lb
• Finish: Matte black
