audiolab 7000CDT

New Series, Same Standards

The 7000CDT uses a high-precision optical system with an electronic data buffer for accurate and seamless CD playback. Very similar technology to the 9000CDT, the 7000CDT uses a read-ahead digital buffer to reduce disc-reading failures, helping it plays scratched and damaged CDs that may be unreadable by conventional mechanisms. To ensure a flawless signal reaches the accompanying DAC, the coaxial output of the 7000CDT is fed from a differential line driver. The master clock is controlled by a high-accuracy crystal oscillator, enabling the digital output from both coaxial and optical sockets to exhibit vanishingly low levels of jitter (digital distortion).

Isolation From Vibration

The low-friction loading tray, sturdy aluminium base and chassis of the 7000CDT work to tackle vibrations that are experienced due to the mechanics of a high-spin-velocity motor. Further, the transport is mounted in its own, electromagnetically shielded enclosure with a dedicated power supply. All of these contribute to the exemplary digital signal extraction, while the proven resonance reduction further improves performance and onward effect in ancillary Hi-Fi equipment and signal chains.

Digital Files In Any Format

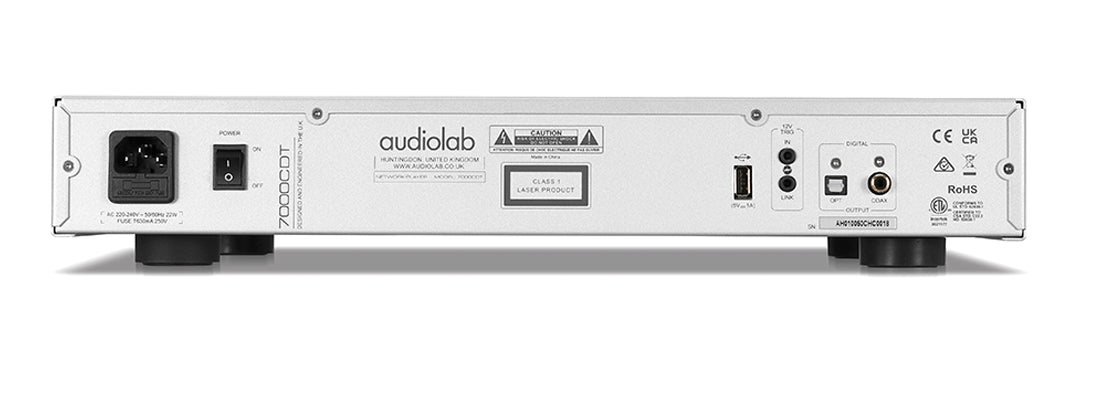

In addition to the class-leading CD playback design, the 7000CDT also offers digital music files compatibly via a dedicated USB ‘Type A’ connection, to the rear of the unit. Every significant hi-res and lossless audio format is catered for, including WAV, AAC and WMA, as well as compressed legacy MP3 formats.

7000CDT Specifications

• General Description: CD Transport
• Design Philosophy and Core Technology: Compatible with CD/CD-R/CD-RW; Support playing USB storage devices (MP3/WMA/AAC/WAV)
• Display indication
• Adjustable screen brightness
• Activate the device automatically via 12V trigger
• Auto standby function can be turned on or off
• USB Storage Device Audio Format: Support MP3, WMA, AAC, WAV format playback
• USB Storage Device File System: Support FAT12, FAT16 and FAT32 format
• Digital Output Amplitude: 500 +/-50mVpp
• Output Impedance: 75Ω
• Frequency Response: -0.01dB (20Hz-20kHz, ref.1kHz)
• Total Harmonic Distortion (THD): < 0.002%
• Sampling Rate: 44.1kHz
• Digital Output Interface: 1 x Coaxial, 1 x Optical
• Standby Power Consumption: < 0.5W
• Power Requirements (according to region) 220-240V - 50/60Hz; 100-120V - 50/60Hz
• Product Size (mm) (W x D x H): 444 x 322 x 78
• Carton Size (mm) (W x D x H): 514 x 470 x 158
• Net Weight: 5.5kg
• Gross Weight: 7.4kg
