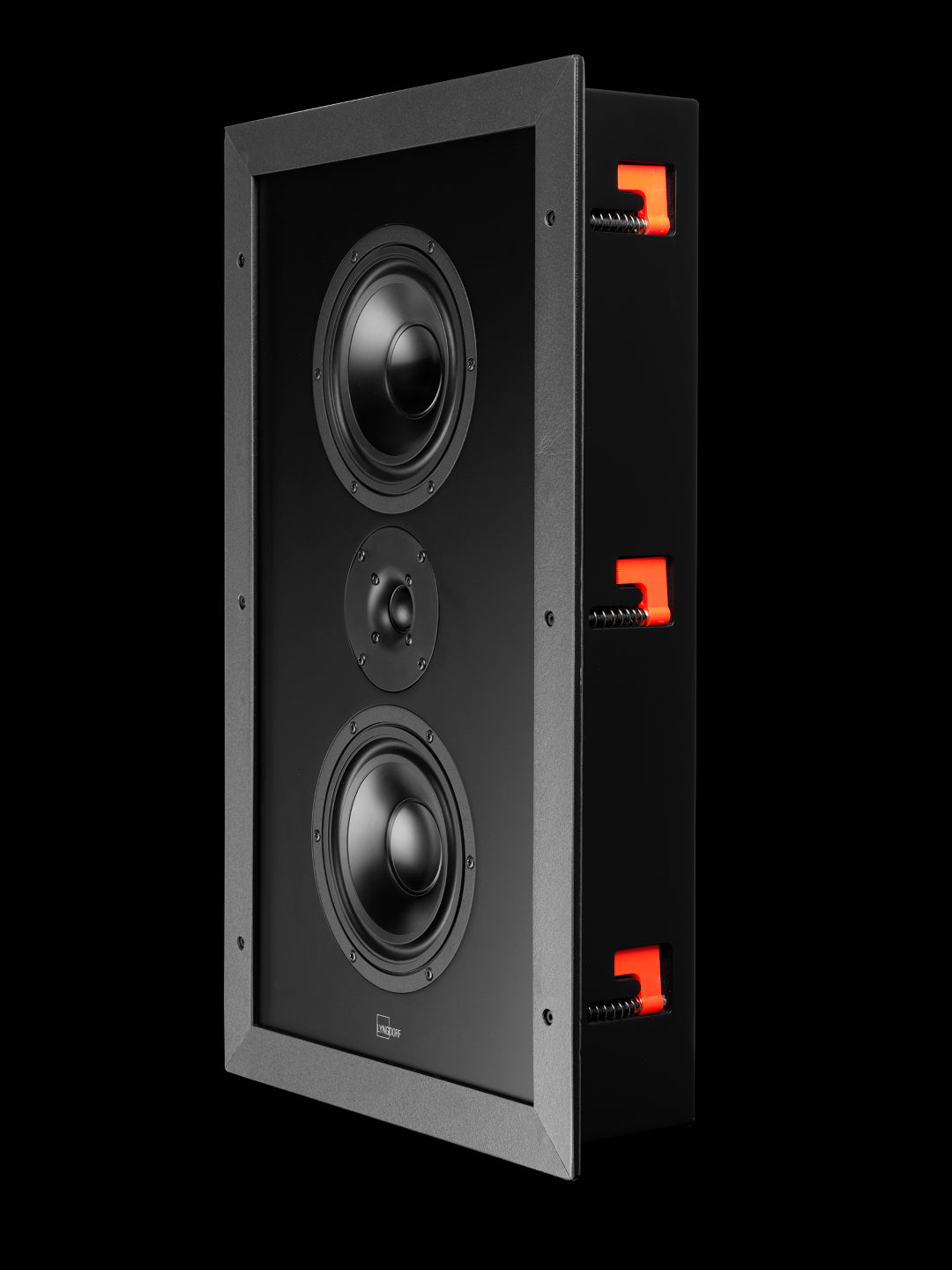

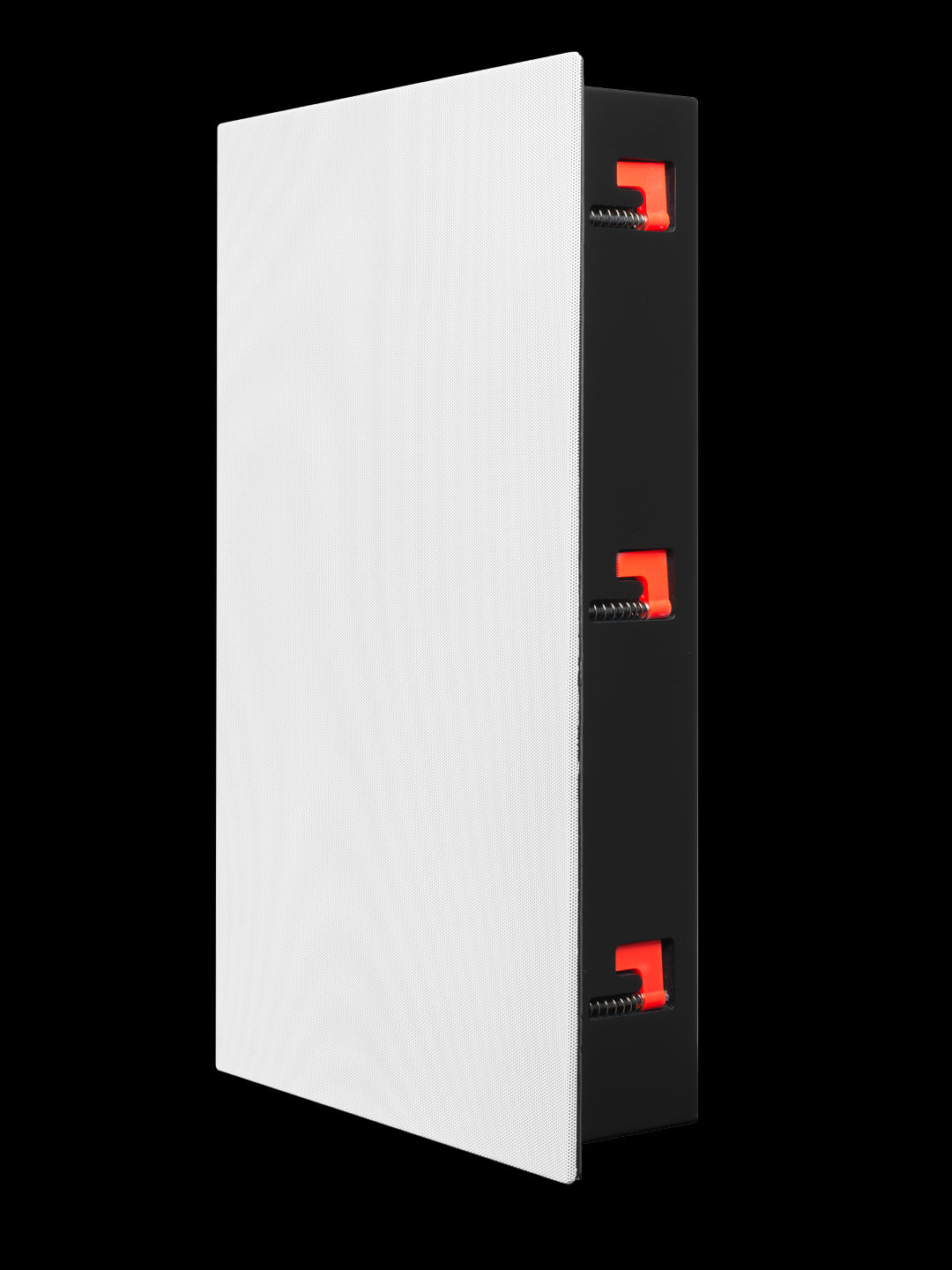

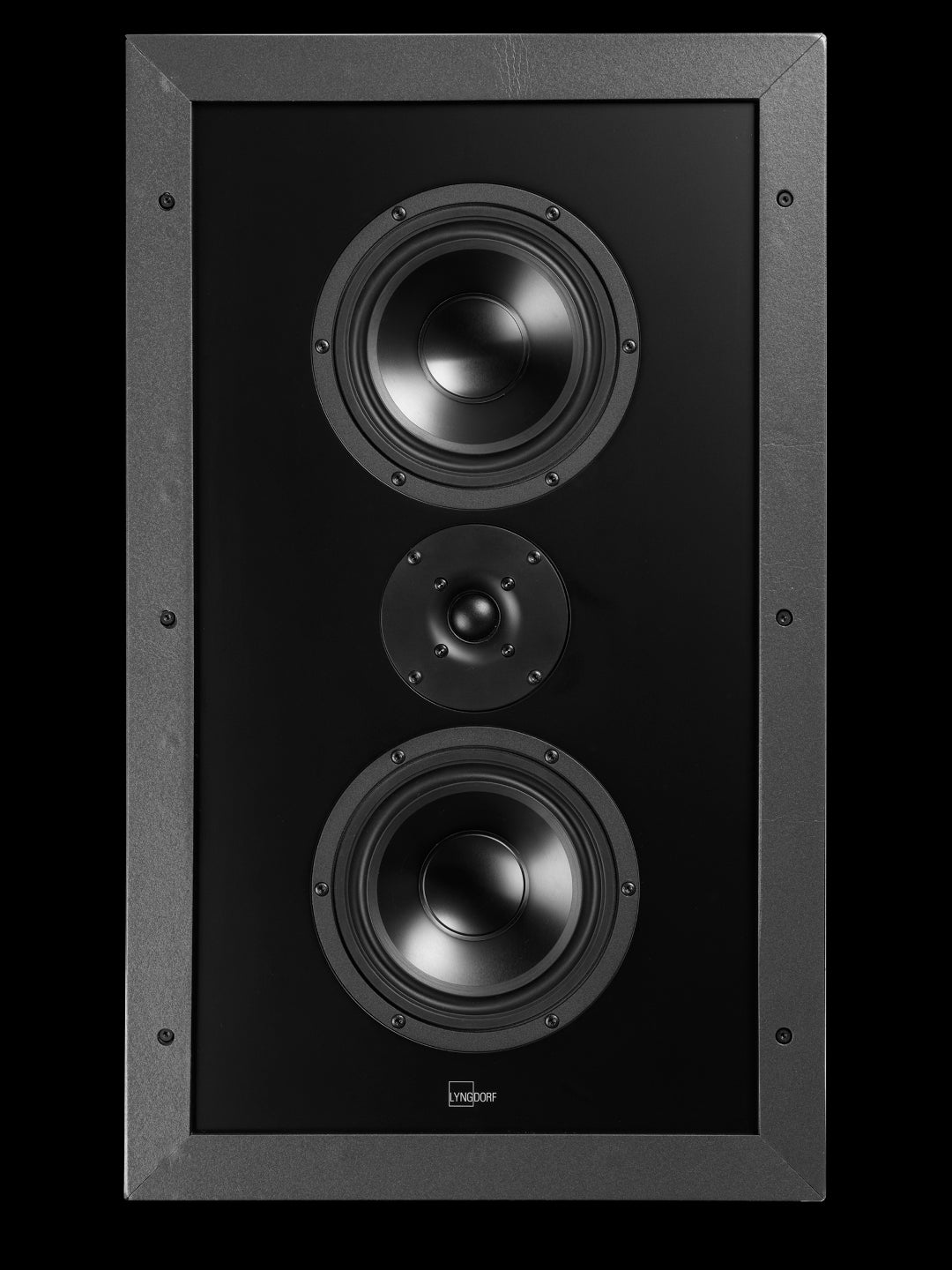

Lyngdorf D-60

Full-range speaker design

The D-500 models are designed as full-range speakers, with two passive woofers complementing the midrange driver and tweeter. This design makes the D-500 models easy to drive while reaching below 50Hz, suitable for systems without a subwoofer in smaller or medium sized rooms, or as full range in-wall speakers in a stereo setup left and right of a TV.

Pre-mounted loudspeaker enclosure

All D-500, D-60 and D-5 models come with their own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

Lyngdorf Audio speaker design and drive-units

The woofers and tweeters are based on the known drive-units used in other Lyngdorf loudspeakers customized for these new models, featuring soft-dome tweeters, light aluminum cones, vented magnets, and die-cast baskets.

Specifications

• Model: Lyngdorf D-60
• Description: Custom installation 2 way speaker
• Tweeter: 28 mm / 1” soft dome
• Midrange/woofer: 2 x 180 mm, 38 mm voice coil, aluminum cone, vented magnet, die-cast vented basket
• Enclosure: Closed MDF cabinet
• Frequency range: 80 – 22.000 Hz (-3 dB)
• Nominal Impedance: 4 Ohm
• Sensitivity: 92 dB (2.83V/1m)
• Power handling:  200 W (IEC)
• Maximum SPL: 112 dB
• Crossover point: 2,5 kHz
• Connections: Binding posts
• Mounting: In-wall
• Dimensions with grill (W x H x D): 388 x 646 x 104 mm / 25.4 x 15.3 x 4.1 inches
• Cut-out dimensions (W x H x D): 360 x 618 x 100 mm / 24.3 x 14.2 x 3.9 inches
• Weight: 11,4 kg / 25.1 lb

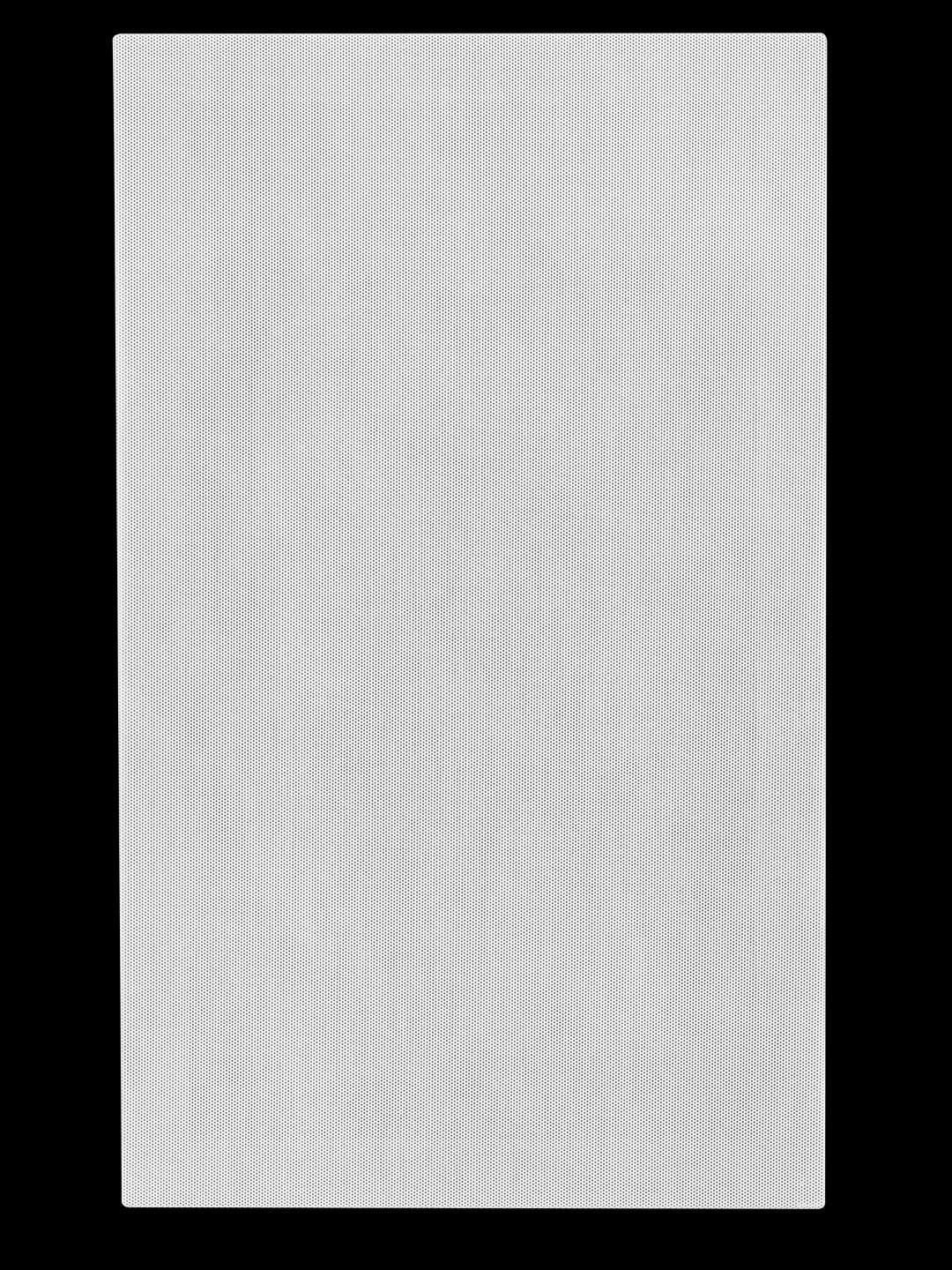

• Finish: Matte black, white grill
