Gold Note Diana I Speakers

The Gold Note Diana I is a compact two-way bookshelf loudspeaker that epitomizes Italian craftsmanship, delivering exceptional audio performance within an elegant design. Engineered for audiophiles seeking both aesthetic appeal and high-fidelity sound, the Diana I seamlessly integrates into diverse listening environments.

Design and Build

Encased in a meticulously crafted cabinet, the Diana I features a unique covering made from sound-transparent fabric derived from recycled fibers, inspired by racing car seats. This material is tear-resistant, stain-resistant, and laminated with damping foam to minimize unwanted vibrations, enhancing both durability and acoustic performance. The speaker’s compact dimensions (260mm width x 290mm height x 375mm depth) and weight of 14 kg per pair facilitate versatile placement options, making it suitable for various room sizes and configurations.

Drivers and Acoustic Performance

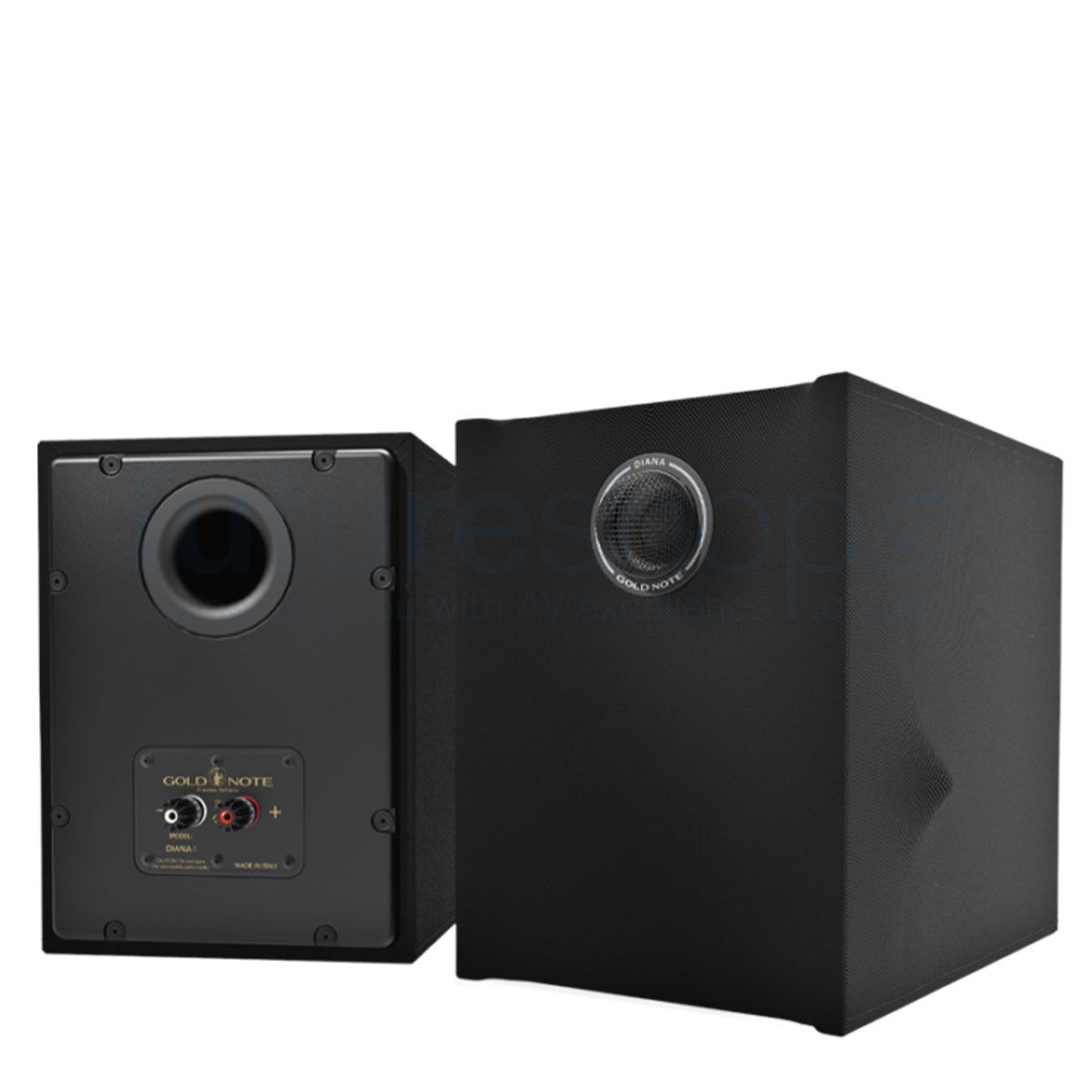

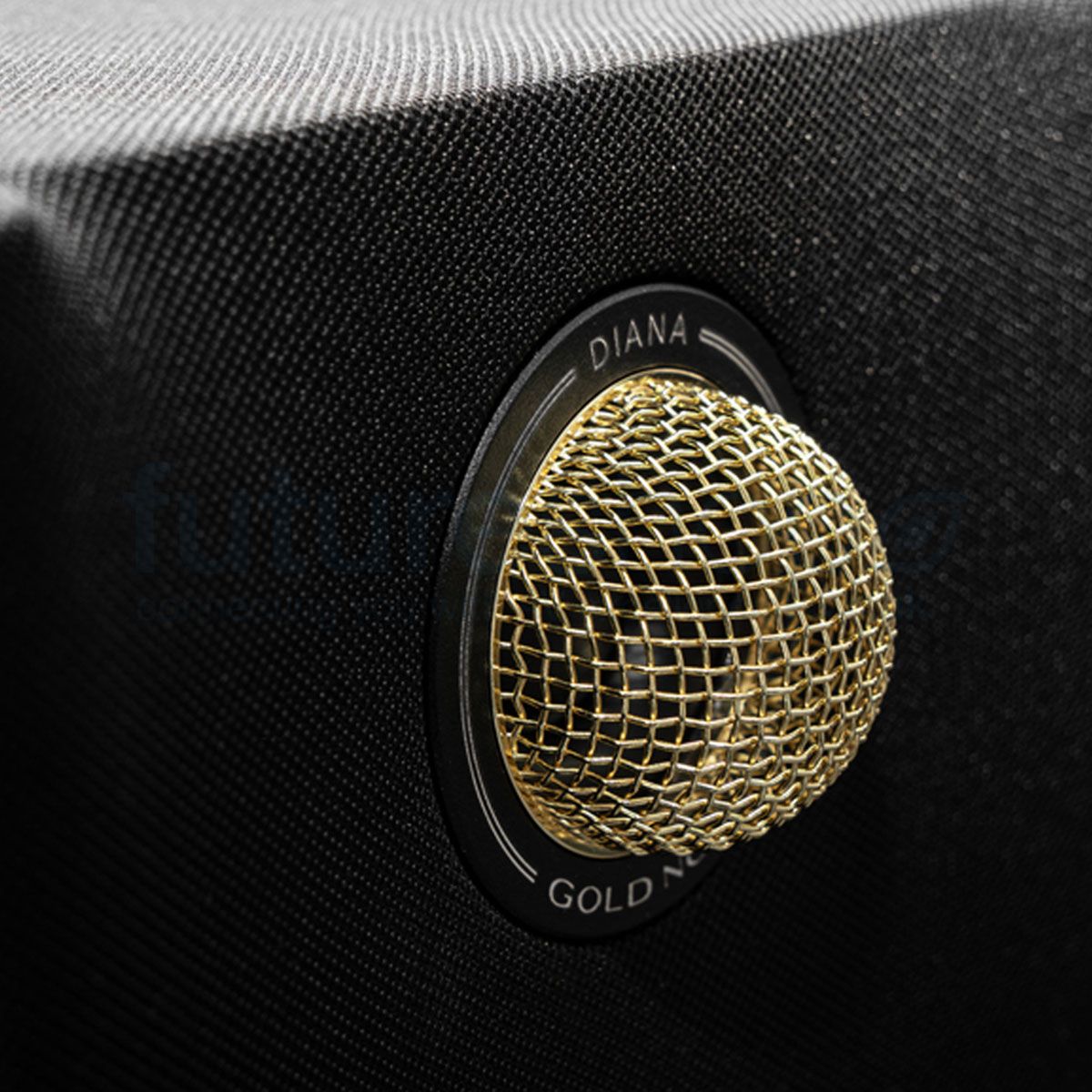

The Diana I is equipped with a 1.1-inch silk dome tweeter and a 6.5-inch fiberglass mid-woofer. This combination ensures precise and immersive sound reproduction across a frequency response range of 48 Hz to 20,000 Hz (±3 dB). The inclusion of a mechanical dome phaser positioned in front of the tweeter enhances high-frequency extension, providing a detailed and expansive soundstage. Additionally, the rear bass-reflex system is designed to deliver deep, powerful bass, even when the speaker is positioned close to a rear wall, maintaining excellent three-dimensional audio characteristics.

Technical Specifications

• Type: Two-way bookshelf loudspeaker

• Frequency Response: 48 Hz – 20,000 Hz (±3 dB)

• Sensitivity: 88 dB SPL

• Impedance: 8Ω

• Crossover Frequency: 2,900 Hz

• Suggested Amplifier Power: 10–100 W

• Drivers:

  • Tweeter: 1.1-inch silk dome

  • Mid-Woofer: 6.5-inch fiberglass cone

• Volume: 12 dm³

• Dimensions: 260mm (W) x 290mm (H) x 375mm (D)

• Weight: 14 kg per pair

Modularity and Expansion

A distinctive feature of the Diana I is its modularity. It can be paired with the Diana III-F, a floor-standing extender equipped with a 6.5-inch fiberglass woofer and a front bass-reflex port. This combination transforms the Diana I into a full-fledged floor-standing loudspeaker, extending the frequency response down to 38 Hz and delivering a richer, more immersive audio experience. The integration is facilitated by built-in magnets and the Diana Bridge, ensuring secure coupling and optimal audio signal conductivity.

Customization Options

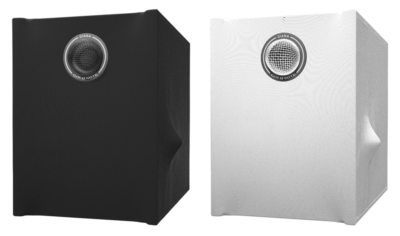

The Diana I offers various customization options to suit individual preferences and interior décors. The fabric covering is available in two variants:

• Black Rebel, imparting a bold and sophisticated character

• Grey Arctic, an elegant and versatile choice

The tweeter phaser comes in three finishes: gold, silver, and black, allowing for exclusive combinations that enhance the speaker’s aesthetic appeal.

Conclusion

The Gold Note Diana I stands as a testament to high-quality audio engineering and innovative design. Its compact form factor, exceptional sound reproduction, and modular capabilities make it an ideal choice for discerning listeners seeking both performance and elegance in their audio systems. Whether used independently or expanded with the Diana III-F extender, the Diana I delivers a captivating and immersive listening experience that exceeds expectations.
