Gold Note - PA-10 EVO

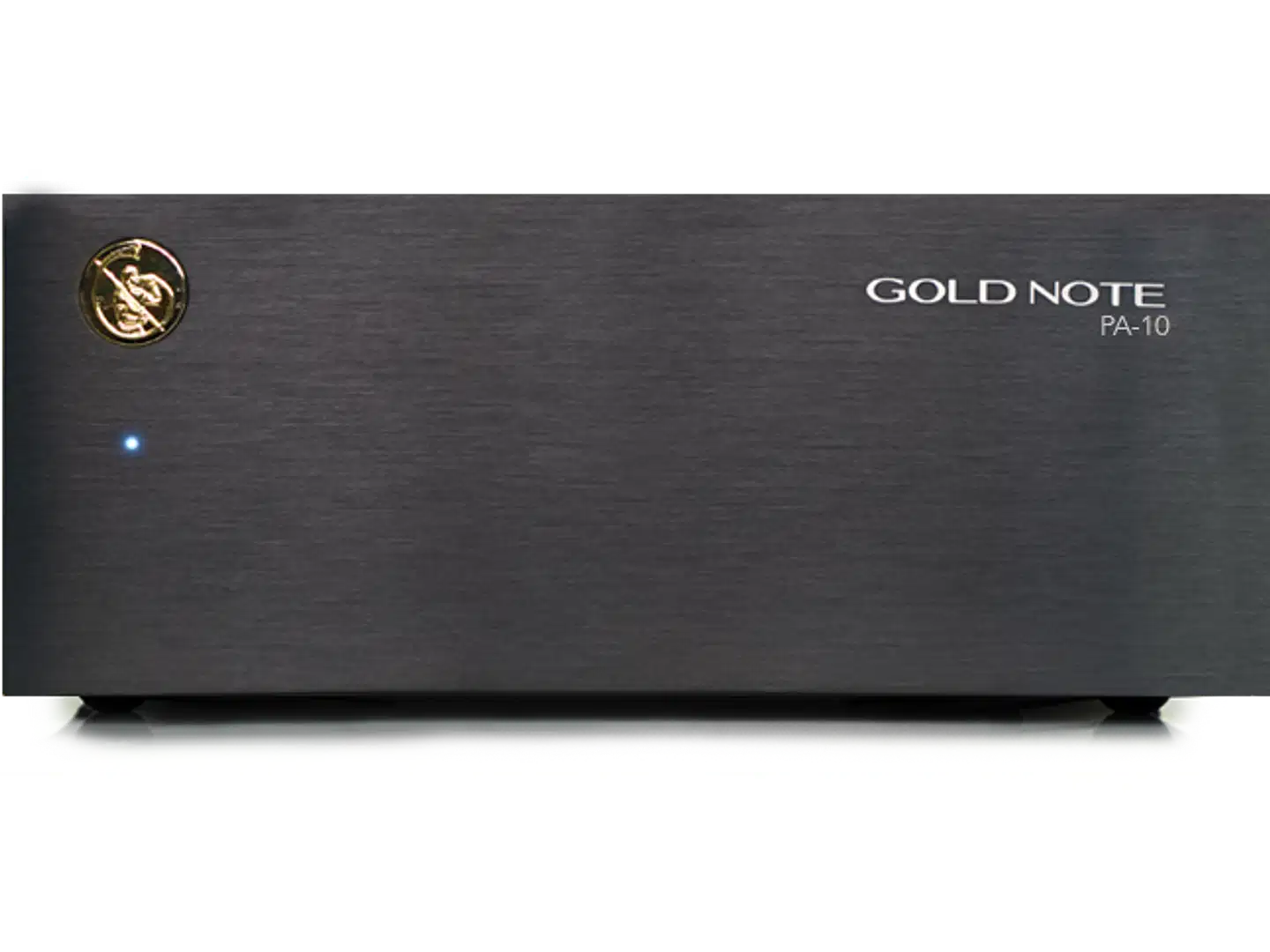

Gold Note PA-10 EVO Power Amplifier

Unleash the Power of Sound with Italian Elegance

Introducing the Gold Note PA-10 EVO, the epitome of power and versatility in a compact form. This fully balanced power amplifier is designed to elevate your High-End audio system, delivering a musically engaging and controlled experience. Whether you’re looking to drive floor-standing speakers or mini-monitors, the PA-10 EVO stands ready to deliver with power and precision.

Key Features:

• High-Power Output: Delivers up to 140W in Stereo (8Ω/4Ω) and up to 280W in Mono (8Ω/4Ω), ensuring robust performance for any speaker setup.
• Flexible Configuration: Can be used in Stereo or Mono mode, with the option to pair two units as monoblocks for the ultimate audio experience.
• Adjustable Damping Factor: Choose between a high damping factor of 250 or a low of 25 to perfectly match with your loudspeakers.
• Balanced and Unbalanced Inputs: Features 1x RCA Stereo unbalanced and 1x XLR Stereo balanced inputs for versatile connectivity.
• GN Link Technology: Allows for easy switching ON/OFF from the source in master-slave mode, ensuring seamless integration with your system.

Full Specifications:

• Power Output (THD 1%): 2x 140W @ 8Ω / 4Ω (Stereo), 1x 280W @ 8Ω / 4Ω (Mono)
• Frequency Response: 5Hz-50kHz (@ -3dB)
• Total Harmonic Distortion (THD): 0.01% (1kHz @ 1W)
• Damping Factor: High = 250, Low = 25

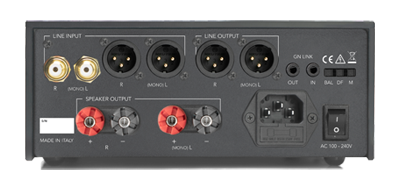

• Audio Inputs: 1x RCA Stereo unbalanced, 1x XLR Stereo balanced
• Input Sensitivity: 2.5Vrms RCA/XLR
• Input Impedance: 3.6kΩ RCA, 7.2kΩ XLR
• Audio Outputs: Speaker terminals: Binding posts
• Power Consumption: <1W standby, <6W no signal
• Power Supply: 100-240V, 50/60Hz
• Fuse: 5A T
• Dimensions: 200mm W | 80mm H | 260mm D
• Weight: 3kg net, 4kg boxed

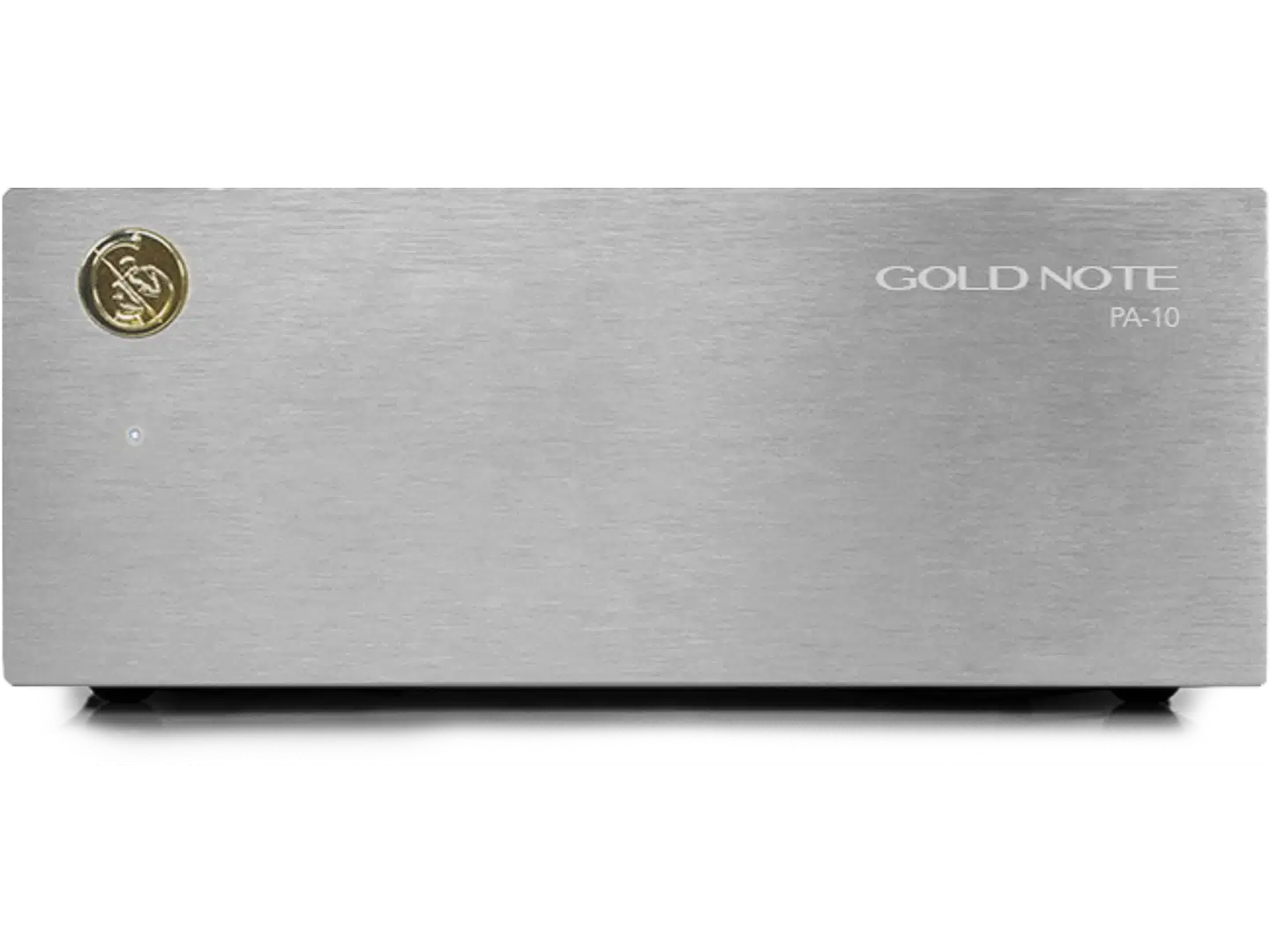

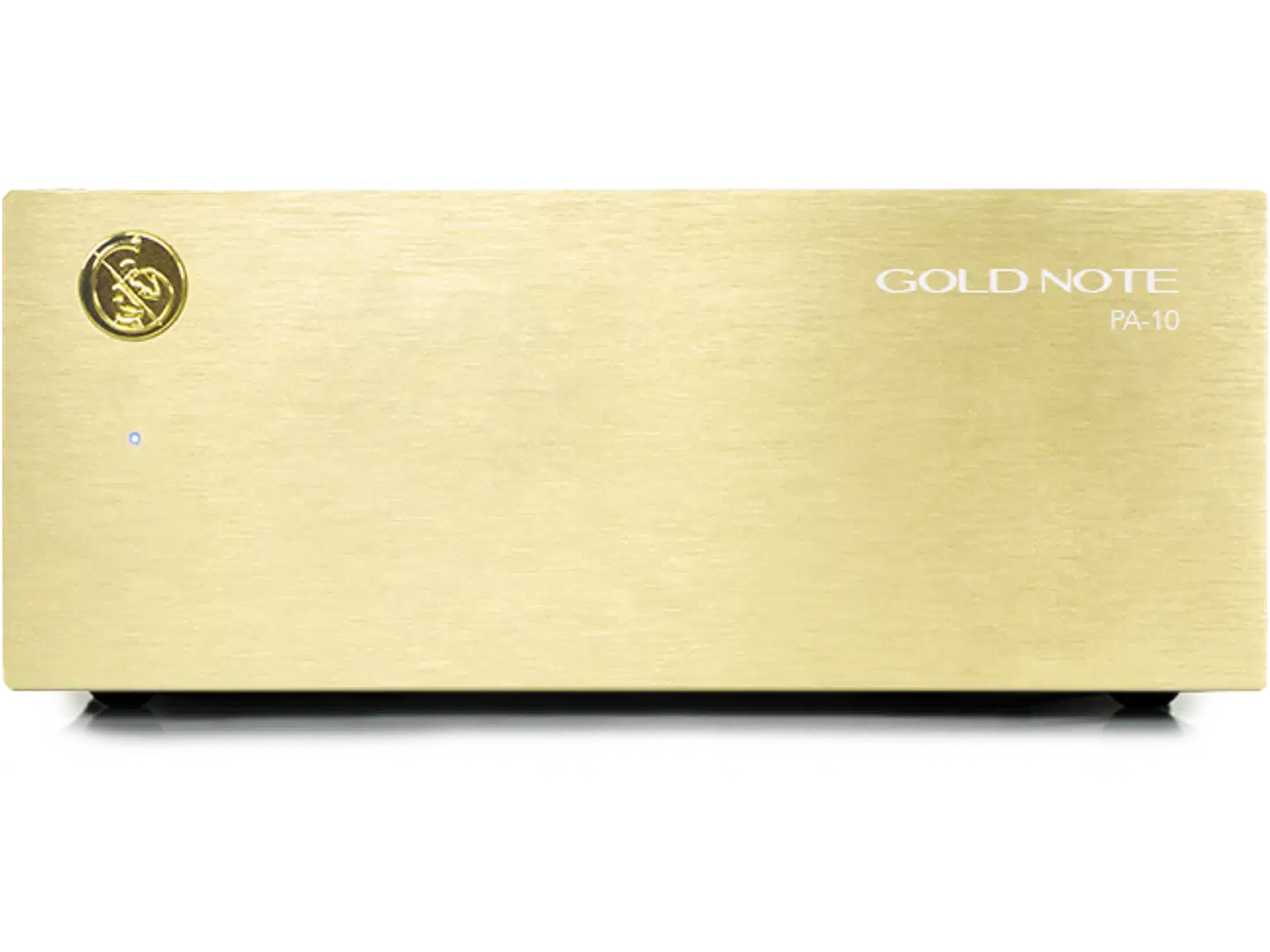

• Finishes: Available in Black, Silver, and Gold anodised aluminium with a traditional brushed finish

Operating Condition Limits:

• Temperature: From 0°C to 35°C
• Humidity: 90% without condensation

The PA-10 EVO is not just an amplifier; it’s a statement of style and performance, crafted with the meticulous attention to detail that is synonymous with Gold Note’s Italian heritage. Pair it with the DS-10 EVO and the A3 EVO II (or A6 EVO II) loudspeakers for a contemporary, compact high-performance system.

Please Note – The PA-10 EVO cannot be matched to the PA-10, but it is fully compatible with all of Gold Note's electronics, pre-amplifiers and valve output stages.
