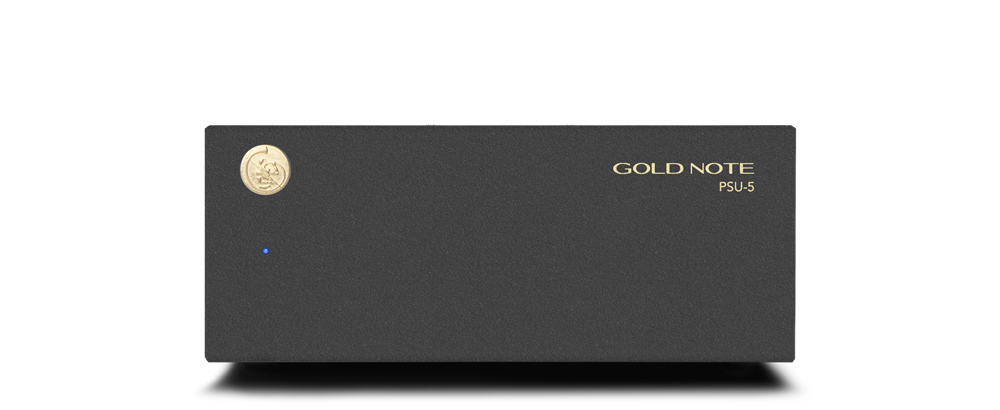

Gold Note Power Supply - PSU-5

Introducing the Gold Note PSU-5 Power Supply, an essential upgrade for audiophiles seeking to enhance their vinyl listening experience. This external inductive power supply is meticulously designed to work in harmony with the PH-5 phono stage, delivering an unparalleled audio performance.

Key Specifications

• Power Supply Type: 3 rail audio grade
• Voltage Regulators: 3 ultra-low noise
• Output Voltage Variation: Maximum 0.05%
• Line Noise Rejection: >80dB
• Common Mode Noise Rejection: >80dB
• Full Power Response Time: <2.5µsec
• Input Voltage: 100-120V / 220-240V with auto sense, 50/60Hz
• Power Consumption: 25W
• Dynamic Power: >50W
• Standby Power: <1W
• Fuse: 0.5A T
• Dimensions: 200mm W x 80mm H x 260mm D
• Weight: 2Kg net, 3Kg boxed
• Finish: Black varnished steel and aluminium

The PSU-5 stands out with its dual-transformer circuit design, ensuring the PH-5 operates under optimal conditions with a steady supply of ultra-clean power. The innovative dual-choke inductive filter, developed with a dedicated transformer, effectively shields the PH-5 from AC noise, further enhancing the clarity and detail of your music. Experience the best in realism and stage reconstruction with the Gold Note PSU-5 Power Supply.
