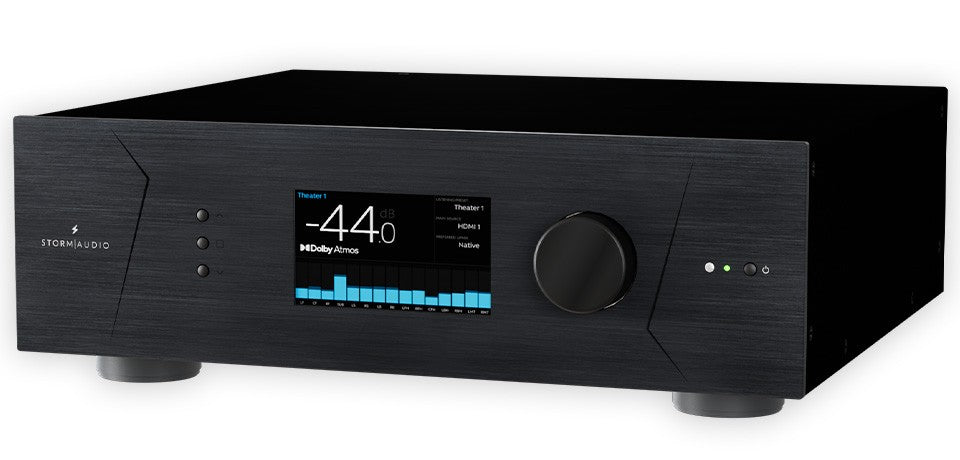

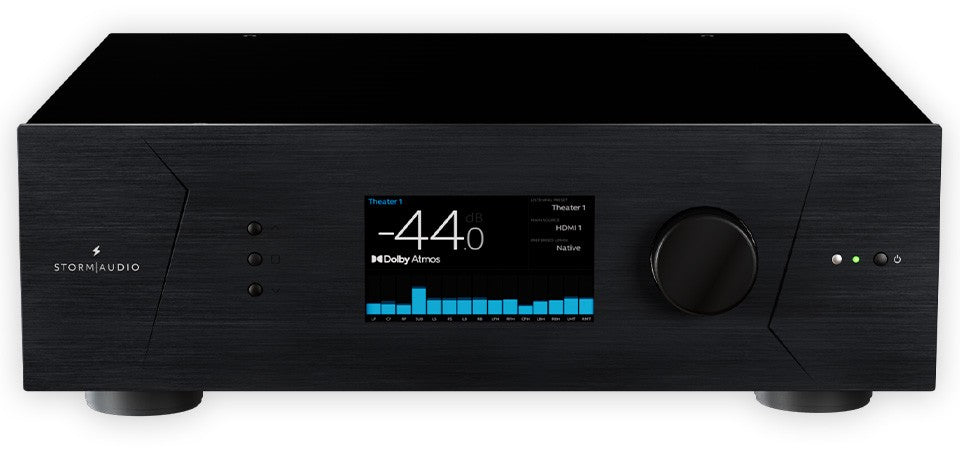

StormAudio - ISP Core 16

StormAudio ISP Core 16 – Immersive 16-Channel AV Processor

Professional-Grade Home Cinema & Music Processing with Full Dolby Atmos, DTS:X & Dirac Live Calibration

• Full immersive format decoding: Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced ready
• Up to 16 discrete channels (expandable 18-ch) for flexible multi-speaker, multi-subwoofer systems
• Advanced DSP platform with multi-way speaker management, multi-subwoofer support and room-specific tuning
• Integrated premium room correction: Dirac Live with Bass Control and Active Room Treatment for precise acoustic tuning

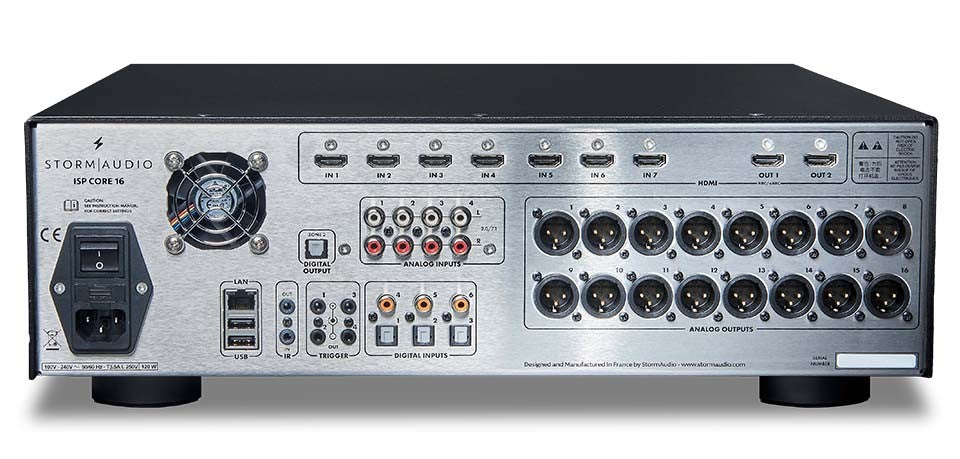

• Comprehensive connectivity: 7× HDMI inputs + 2× HDMI outputs (ARC/eARC), analog RCA, SPDIF optical/coaxial, and balanced 16-ch analog XLR outputs
• Flexible signal processing: Up to 20 parametric EQs per channel, active crossovers, flexible bass routing and multi-zone support
• Compact 3U chassis, rack-mountable, robust build quality

The StormAudio ISP Core 16 is a reference-class AV preamplifier/processor designed for audiophiles and home-cinema enthusiasts who demand the highest level of performance and flexibility. Built around the same platform as StormAudio’s elite-level processors, the Core 16 brings industry-leading decoding, powerful DSP, and high-resolution analog output in a sleek, compact package.

Whether you’re building a multi-channel Dolby Atmos home theater or a multi-room audio system, the ISP Core 16 offers robust support for immersive formats and flexible speaker configurations. With output for up to 16 channels and the ability to handle multiple subwoofers and active crossovers, it adapts to a wide range of installations — from modest 5.1 setups to large, fully immersive 9.1.6 or 11.x.y systems. Room acoustics are addressed via the included full-bandwidth room correction suite, which brings deep bass control and refined tuning for each speaker, ensuring balanced, natural sound no matter the environment.

From a sonic standpoint, the processor delivers a wide, precise soundstage, deep and controlled bass extension, clear midrange detail, and smooth, dynamic treble. Because the analog output stage uses the same high-quality DAC architecture as StormAudio’s top-tier models, dynamic range and resolution remain top priority — dialogues stay intelligible, soundtracks retain impact, and musical playback gains richness and nuance.

Setup and control are user-friendly despite the Core’s advanced capabilities: HDMI connectivity handles all modern video/audio needs (including 4K/8K, HDR, eARC), while analog and digital inputs offer compatibility with legacy sources. The included configuration tools — from a web-based UI to smartphone/tablet apps and IR or automation-system control — make system integration straightforward even for complex multi-zone and multi-room environments.

📐 Technical Specifications – StormAudio ISP Core 16

• Supported Channels: 16 discrete channels (expandable to 18 with license)
• Decoded / Upmixed Formats: Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced
• Outputs: 16-channel balanced analog (XLR), 1× Optical Toslink (Zone 2 stereo downmix)
• Inputs: 4× RCA analog (7.1 or stereo), 3× SPDIF coaxial, 3× SPDIF optical
• HDMI: 7 HDMI inputs / 2 HDMI outputs (ARC/eARC), HDMI 2.1a / HDCP 2.3, 4K UHD & 8K-ready, HDR10+, Dolby Vision, HLG
• Processing: Multi-room/multi-theatre, multi-way speaker management, multi-subwoofer support, active crossovers (up to 4-way), flexible bass routing (optional expert mode)
• Room Correction: Dirac Live – full-band room correction + Bass Control + Active Room Treatment, with multi-subwoofer calibration and REW plugin support
• EQ & Tuning: Up to 20 parametric EQ bands per output channel
• Additional Features: Multi-zone, multi-layout, StormXT ambiance expansion (with license), configurable speaker layouts
• Control: IR remote, web UI, Ethernet (TCP/IP), smartphone/tablet app, RS-232, major home-automation system compatibility (Control4, Crestron, Savant, RTI, etc.)
• Streaming / Integration: Roon Ready, networked multi-zone audio
• Form Factor: 3U rack-mountable chassis
• Dimensions (approx): Depth ≈ 40.2 cm × Width ≈ 44.2 cm × Height ≈ 13.3 cm
• Weight (net): ~9–11 kg depending on version / packaging

🎯 Ideal Use Cases & Who Should Choose It

• Reference-grade home cinema systems with Dolby Atmos / DTS:X / Auro-3D / IMAX Enhanced
• Multi-channel stereo or multi-subwoofer systems needing precise DSP control and room calibration
• Large or multi-room installations where flexibility, multi-zone output, and future-proof HDMI connectivity matter
• Music lovers wanting high-resolution playback with Roon integration and clean analog outputs
• Installations requiring professional-level control, such as custom home theaters or dedicated listening rooms

The StormAudio ISP Core 16 stands out as one of the most capable and flexible immersive audio processors available, delivering professional-level sound, room optimisation, and system adaptability. It’s designed for enthusiasts who demand both power and refinement from their home theater or multi-channel music setup.
