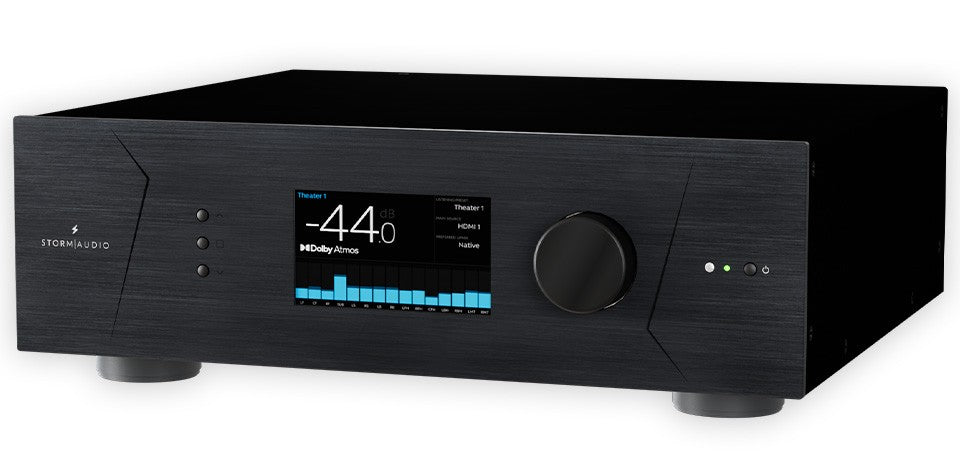

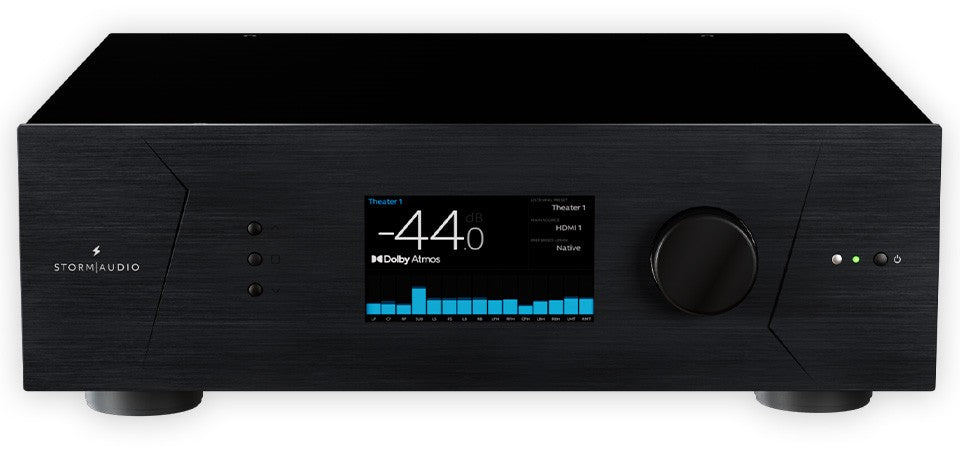

StormAudio - ISP Evo

The ISP Evo is a purely digital evolution of our highly-acclaimed immersive sound processors–this is what the next generation of immersive sound processors will look like.

The StormAudio Immersive Sound Processor Evo, is the only answer on the market to pure digital installations that are now commonly required in “resimercial” projects, mixing studios or luxury marine markets. Based on the award-winning and industry-recognised ISP Elite MK3 model, it retains the same platform and performance in the slim form factor of the ISP Core 16. The ISP Evo is a high-performance immersive sound processor, that brings the ultimate feature package required by the most demanding integrators and home cinema enthusiasts.

With up to 24ch decoding and upmixing of the most sought-after immersive surround formats, such as Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced, there is also up to 32ch of post-processing  including the latest Dirac Live Active Room Treatment module and the state-of-the-art StormAudio Expert Bass Management with its multiple bass zones and selective bass routing. The ISP Evo will provide the best sound performance in any theatre without the installer needing to be an expert in room acoustics.

Based on StormAudio’s proprietary modular platform, the ISP Evo has maintained the reputation for modularity and flexibility with multiple hardware and software options available for any type of digital installation. Whether you need AES/EBU interfaces with 20 or 32 channels of digital outputs, 16 channels of digital DCI compatible inputs or you need audio over IP AES67/Dante networked interface for up to 32-channel inputs and outputs, you will always find the right version to satisfy your needs.

All of this comes with Roon Ready integration and the acclaimed user-friendly, web-based interface that allows for a full configuration in only a few steps. With a full host of control options, including an IR remote, smartphone and tablet applications, as well as all the required control system drivers, the ISP Evo delivers the most seamless integration to any advanced theatre, mixing studio or yacht installation.

The ISP Evo processors include:

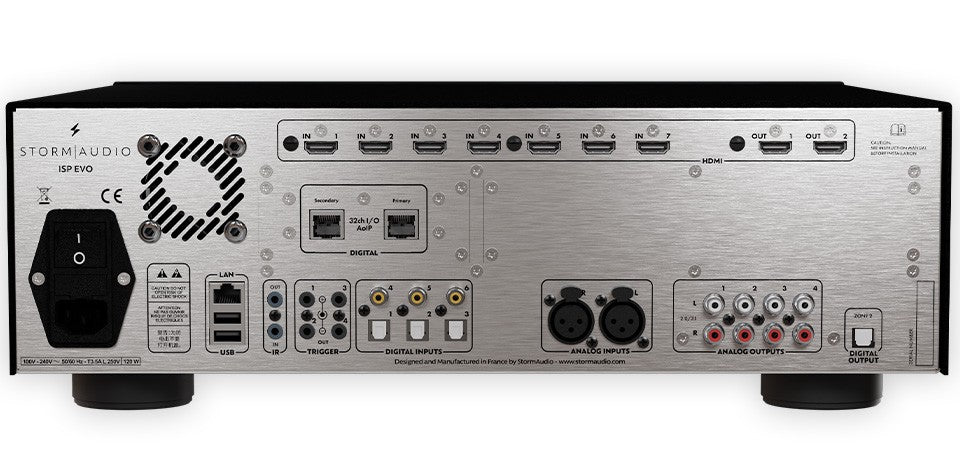

HDMI IN / OUT

• 7 IN / 2 OUT (ARC/eARC)
• HDMI2.0b/HDCP2.2
• 4K UHD 18 Gbps on all ports
• HDR10, Dolby Vision, HLG

AUDIO OUTPUTS

• up to 32ch digital (AES/EBU)
• 1x Optical Toslink (Zone2 Stereo downmix)

AUDIO INPUTS

• 16ch digital (AES/EBU)
• 4x RCA analog (7.1 or stereo)
• 1x XLR analog (stereo)
• 3x Coaxial SPDIF
• 3x Optical Toslink
• AUDIO INPUT/OUTPUT
• up to 32ch digital AoIP (AES67/ Ravenna) Dante Compatible (not available for AES/EBU model)

DECODING

• Up to 24 decoding/upmixing channels
• Dolby Atmos, Auro-3D
• DTS:X Pro, IMAX Enhanced ready
• StormXT
• All legacy codecs up to 192 kHz

PROCESSING

• Up to 32ch
• Standard and Expert Bass Management
• Multi-theater & multi-room
• Multi-way speakers
• Multi-subwoofer

ROOM CORRECTION

• Dirac Live with Room Correction, Bass Control and Active Room Treatment modules included
• REW plugin

STREAMING

• Roon Ready

CONTROL

• TCP/IP (ETHERNET), IR
• IR remote control
• StormRemote Tablet Application
• StormRemote Mobile Smartphone Application
• Web-based configuration
• Control4, Crestron, RTI, Savant, ELAN drivers
