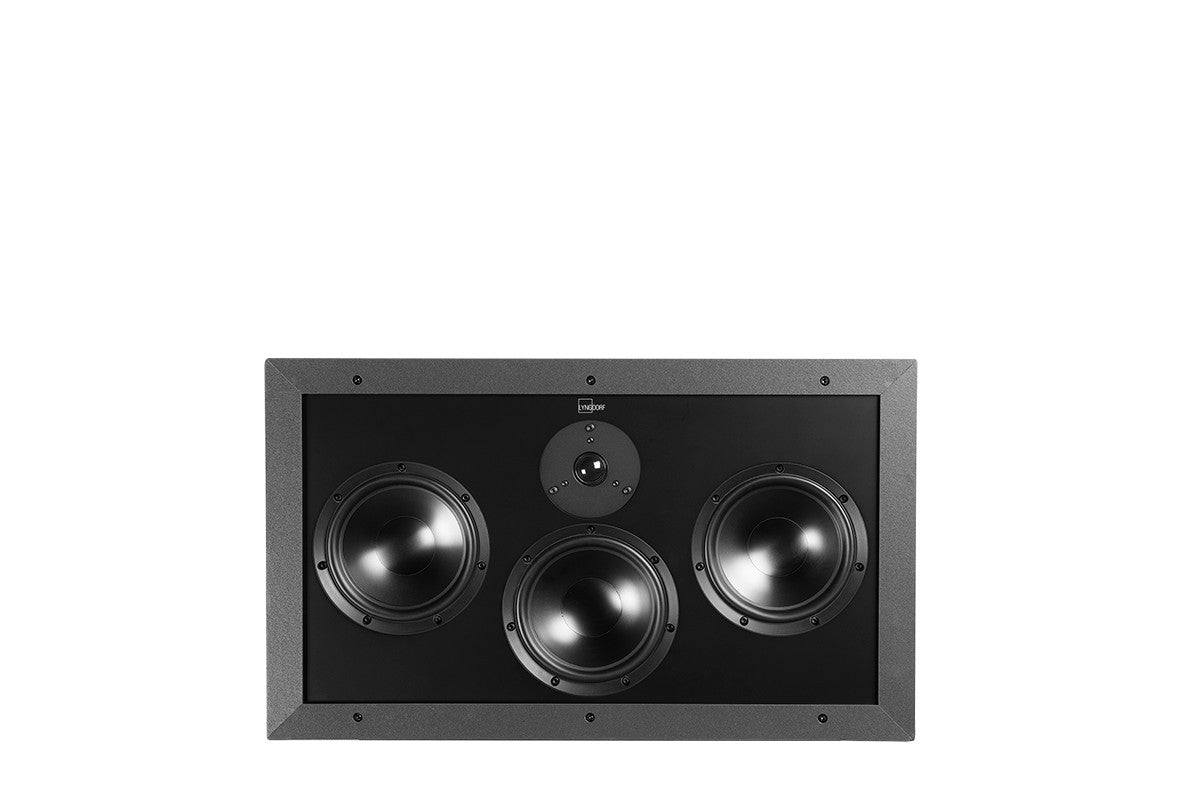

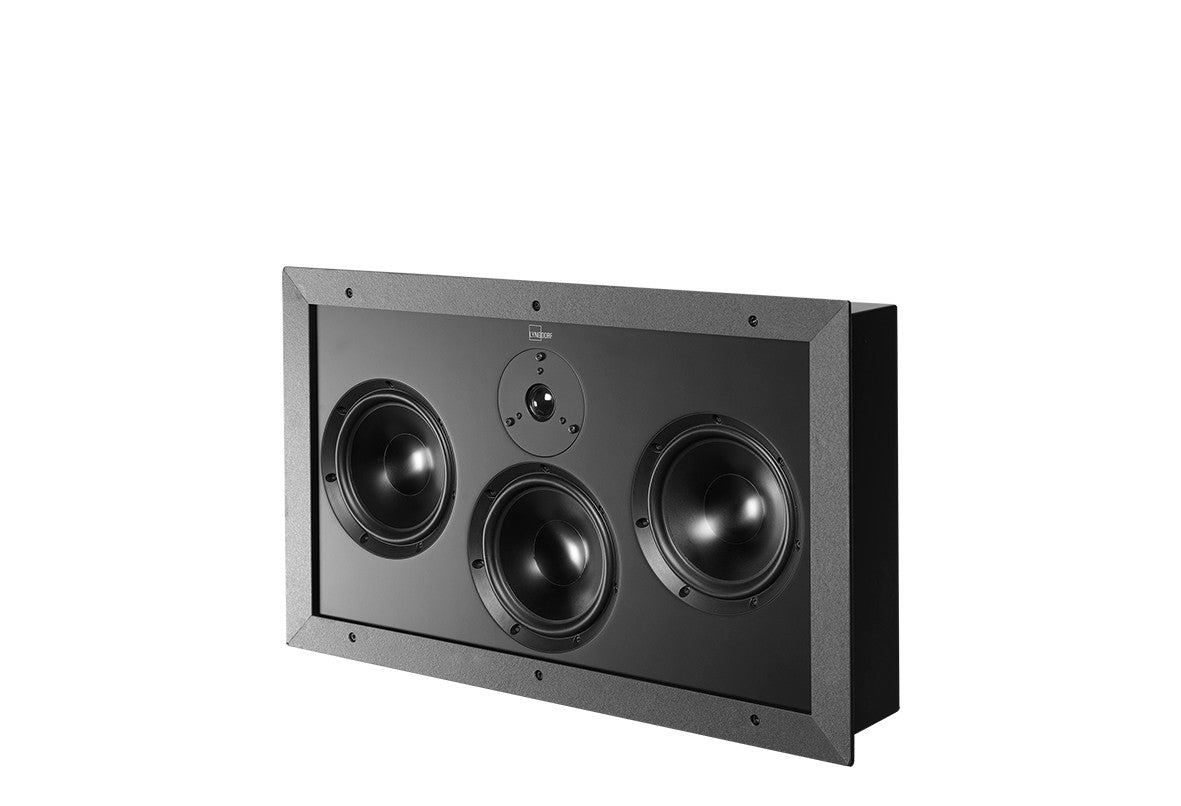

Lyngdorf - D-500 Center

Full-range speaker design

The D-500 models are designed as full-range speakers, with two passive woofers complementing the midrange driver and tweeter. This design makes the D-500 models easy drive while reaching below 50Hz, suitable for systems without a subwoofer in smaller or medium sized rooms, or as full range in-wall speakers in a stereo setup left and right of a TV.

Pre-mounted loudspeaker enclosure

All D-500 and D-5 models come with their own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

Lyngdorf Audio speaker design and drive-units

The D-500 and D-5 woofers, midrange drivers and tweeters are designed by Lyngdorf Audio and feature soft-dome tweeters, light aluminum cones, and powerful vented magnets.

Specifications

• Model: Lyngdorf D-500 Center
• Description: 2 way speaker with 2 passive woofers
• Tweeter: 28 mm / 1” soft dome
• Midrange driver: 175 mm, 38 mm voice coil, aluminum cone, vented magnet
• Passive woofers: 2 x 175 mm, aluminum cones
• Enclosure: Closed MDF cabinet
• Frequency range: 50 – 22.000 Hz (-3 dB)
• Nominal Impedance: 4 Ohm
• Sensitivity: 88 dB (2.83V/1m)
• Power handling:  100 W (IEC)
• Maximum SPL: 105 dB
• Crossover point: 2,5 kHz
• Connections: Binding posts
• Mounting: In-wall
• Dimensions (W x H x D): 646 x 388 x 109 mm / 25.4 x 15.3 x 4.3 inches
• Cut-out dimensions (W x H x D): 618 x 360 x 104 mm / 24.3 x 14.2 x 4.1 inches
• Weight: 11,5 kg / 25.4 lb
• Finish: Matte black, white grill
