Lyngdorf TDAI-1120
Description: 2-channel streaming amplifier
Power rating: 2 x 120 W RMS @ 4Ohm / 2 x 60 W RMS @ 8Ohm
Max output current: 30A
Audio specifications: Frequency Response: ±0,5dB from 20 to 20,000 Hz, Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%
Digital inputs (Asynchronous): 2 x Coaxial (≤192kHz/24bit) 2 x Optical (≤96 kHz/24bit) 1 x HDMI eARC (≤24 bit/192 kHz)
Analog inputs: 1 x Phono Single Ended RCA (RIAA / 47kOhm 100pF), 1 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS) 1 x Microphone input (XLR) for RoomPerfect™ calibration
Analog output: 1 x Stereo Analog RCA (75ohm-Max output level 4 Vrms)
EQ: RoomPerfect™, Pre-Equalizer, ICC, 32 x adjustable voicings holding ≤8 filters with adjustable gain and Q
Media player: Internet Radio (vTuner), Spotify Connect, Roon Ready, Chromecast built-in, DLNA Support (uPnP/see DLNA formats), AirPlay2, Bluetooth, Local file playback (USB)
Wireless connections: Bluetooth connectivity, Wi-Fi (802.11 n)
Interfaces: Intuitive input selector, Web-interface for setup and media player, Remote application for IOS and Android, IP control, CEC (HDMI), 1 x trigger input, 1 x trigger output, 1 x RJ45 Ethernet LAN connector, 1 x USB connectors (Type A)
Remote control: Infrared/Bluetooth BLE
Accessories included: RoomPerfect™ microphone, Microphone stand, Microphone cable
Optional accessory: IR remote control, rack mounting kit
Placement options: Freestanding
Dimensions (H x W x D): 10.1 x 30 x 26 cm (including connectors), 3.98 x 11.8 x 10.3 inches (including connectors)
Weight: 3,3 kg / 7.3 lb
Finish: Anodized aluminum, matte black

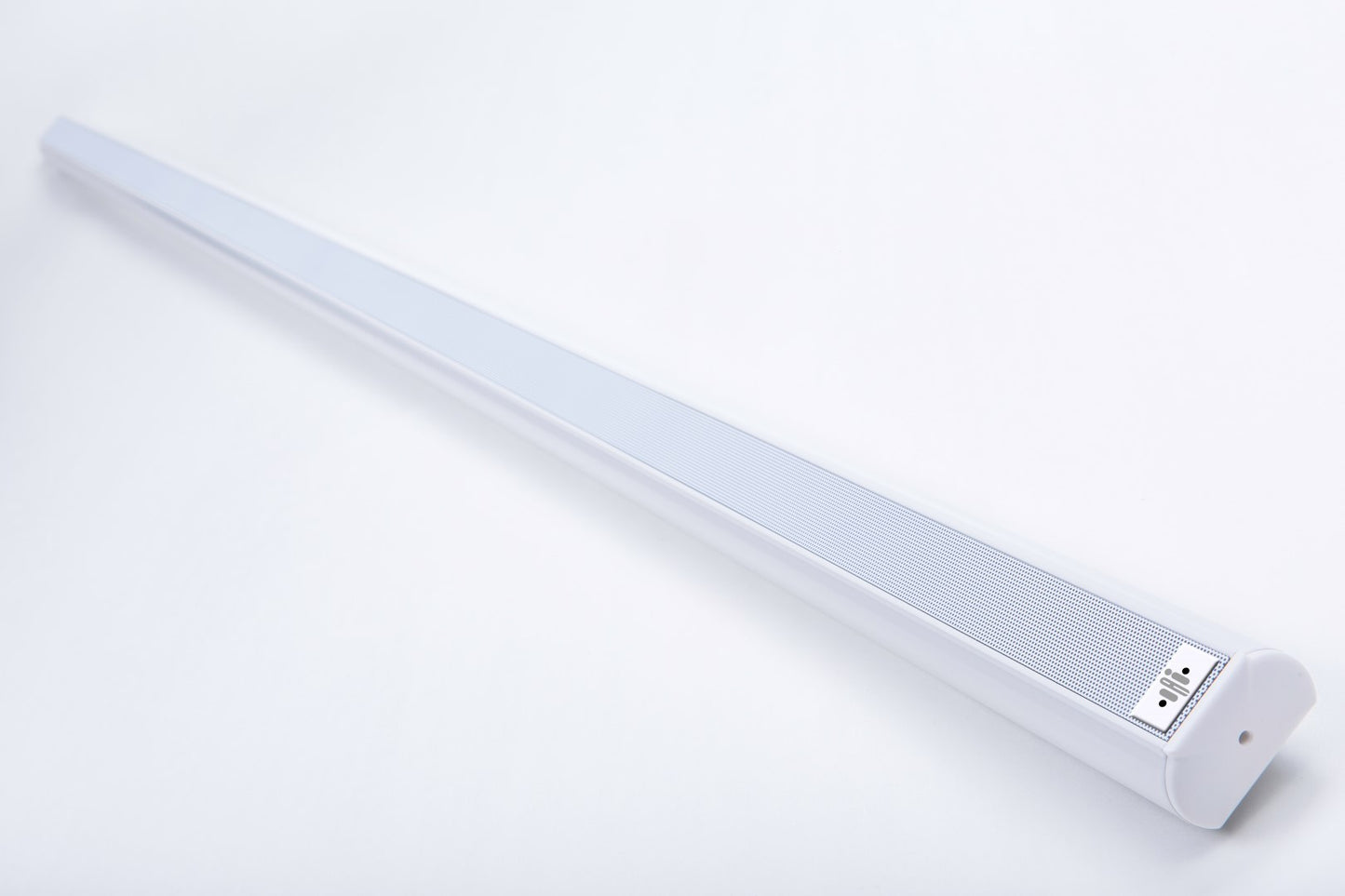

BEC Akustik AI-120 specifications
Impedance - 4 Ω
Frequency Range - 120-20.000 Hz
System - Line array speaker
Broadband driver - 4 x (20 x 120 mm)
Rated Power - 40 Watt
Maximum power - 80 Watt

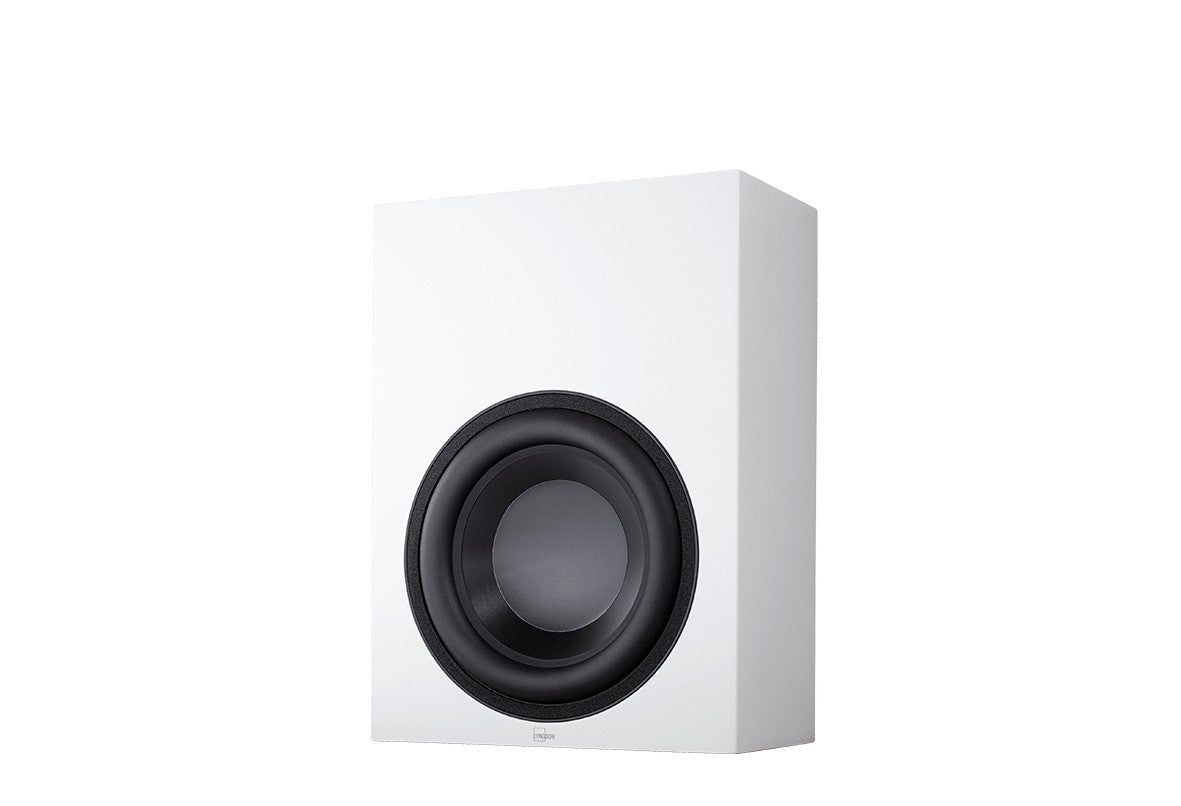

Lyngdorf BW-2 specifications
Description: Active high bandwidth subwoofer
Midrange driver: 10” long throw driver (+/- 15mm/0.6 in), Ø 50mm / 2in voice coil, Cone Material: Deep Anodized aluminum, 86oz / 2.4kg vented magnet
Enclosure: Closed cabinet type, full MDF construction, volume: 14 liters
Frequency Response: 25 to 200 Hz (using line in input), 25 to 800 Hz (using bypass input)
Maximum SPL: 106 dB RMS THX method: 40-80 Hz
Sensitivity: 91dB (2.83V/1 m) sensitivity
Crossover point: X-over frequency (60 to 200 Hz)
Connections: RCA / analog mono input
Dimensions (W x H x D): 44 x 32.5 x 17.2 cm, 17.3 x 12.8 x 6.8 inches
Weight: 14.4 kg / 31.7 lb
