Lyngdorf Cue‑100 Standmount Loudspeaker – Where Design Meets Acoustic Purity

The Lyngdorf Cue‑100 is not just a speaker — it’s a statement of intent from a brand renowned for uncompromising digital and acoustic engineering. Designed and manufactured in Denmark, the Cue‑100 merges Scandinavian design minimalism with groundbreaking acoustic technologies developed by Lyngdorf Audio and Purifi Audio.

This compact yet high-performance standmount loudspeaker combines a studio-grade Air Motion Transformer (AMT) tweeter, an ultra-low-distortion Purifi 6.5” midwoofer, and dual passive radiators in a time-aligned, phase-coherent configuration that redefines what is possible in small-form loudspeaker design.

Engineering Highlights

✳️ Purifi™ 6.5” Midwoofer

At the heart of the Cue‑100 is the Purifi PTT6.5 midwoofer — widely regarded as one of the most accurate and lowest-distortion drivers ever developed. Featuring:

• Neutral Surround Geometry (NSG) for uniform cone motion
• Ultra-low hysteresis suspension
• Distortion levels below 0.1% even at high excursion
• Aluminum cone with extended bandwidth

This driver brings a level of clarity, linearity, and punch typically reserved for large floorstanders.

✳️ Custom AMT Tweeter

The Air Motion Transformer tweeter is a bespoke, ultra-fast driver capable of reproducing transients with air, detail, and space. Its Kapton diaphragm and high-efficiency pleated membrane result in extended treble without harshness — perfect for complex acoustic music, vocals, and microdynamics.

✳️ Dual Passive Radiators

Two 6.5” aluminum-cone passive radiators, tuned for optimal compliance and housed within the triangular enclosure, allow the Cue‑100 to deliver bass performance that defies its size — 35 Hz at –3 dB, with no port turbulence or rear wall loading artifacts.

Acoustic Design

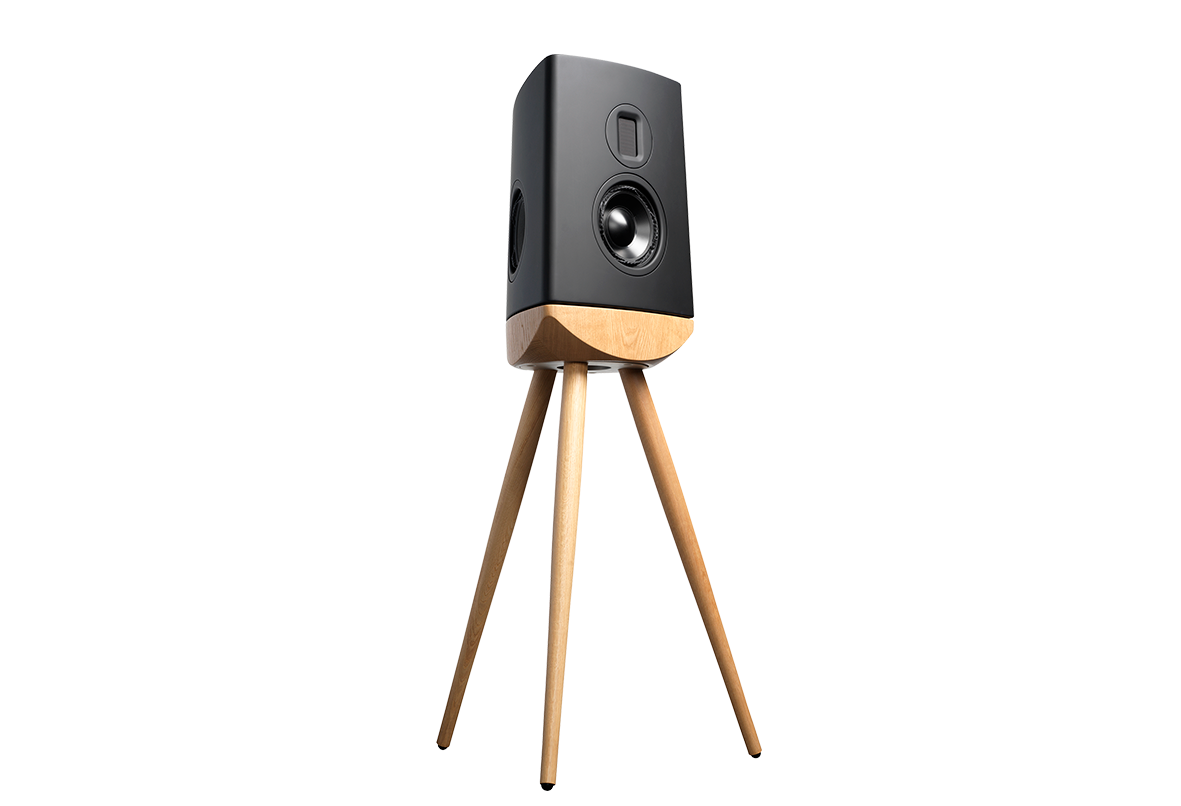

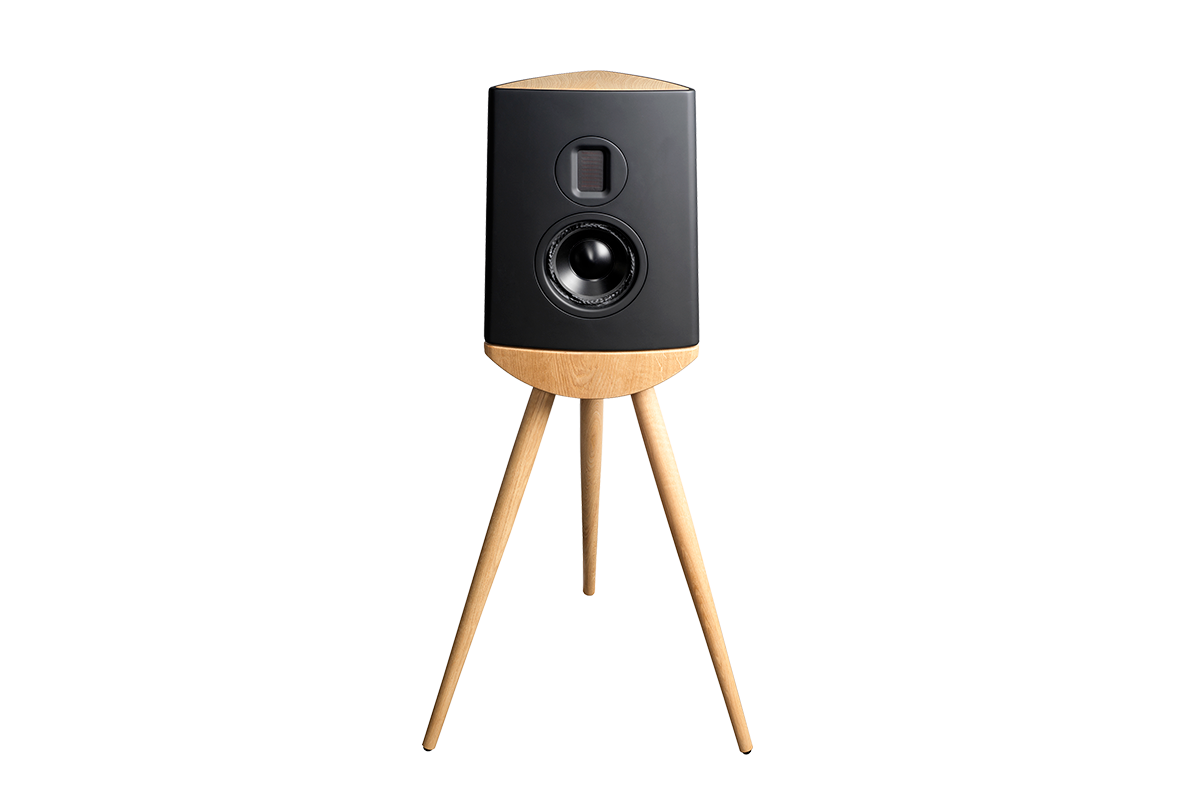

The Cue‑100 uses a triangular cabinet architecture to eliminate parallel surfaces and internal standing waves. Constructed from high-density MDF, the enclosure is further decoupled from the floor via a solid oak tripod stand, included in the package. This ensures low mechanical resonance and optimal time alignment at the listening position.

The result is precise imaging, holographic depth, and room-friendly placement flexibility — with or without room correction.

System Synergy & Application

Optimized for performance with or without Lyngdorf’s RoomPerfect™, the Cue‑100 thrives in both untreated and acoustically optimized rooms. It’s an ideal match for:

• High-end integrated amplifiers with 80–200 WPC
• Digital systems using Roon, streaming DACs, or CD transport setups
• Lyngdorf TDAI-1120, 3400, or 2210 amplifiers with RoomPerfect

Whether paired with tube electronics or advanced Class D amplification, the Cue‑100 delivers reference-level clarity, exceptional soundstage width, and musicality at any volume.

Specifications

• Type: 2-way passive standmount with dual passive radiators
• Tweeter: Custom Air Motion Transformer (Kapton foil diaphragm)
• Mid/Woofer: 18 cm Purifi aluminum cone
• Passive Radiators: 2 × 18 cm Purifi aluminum (NSG)
• Frequency Response: 35 Hz – 22,000 Hz (–3 dB)
• Power Handling: 250 W
• Impedance: 4 Ω
• Sensitivity: 83 dB (2.83 V / 1 m)
• Dimensions: 350 × 513 × 329 mm (W × H × D, without stand)
• Weight: 13.8 kg (16.2 kg with stand)

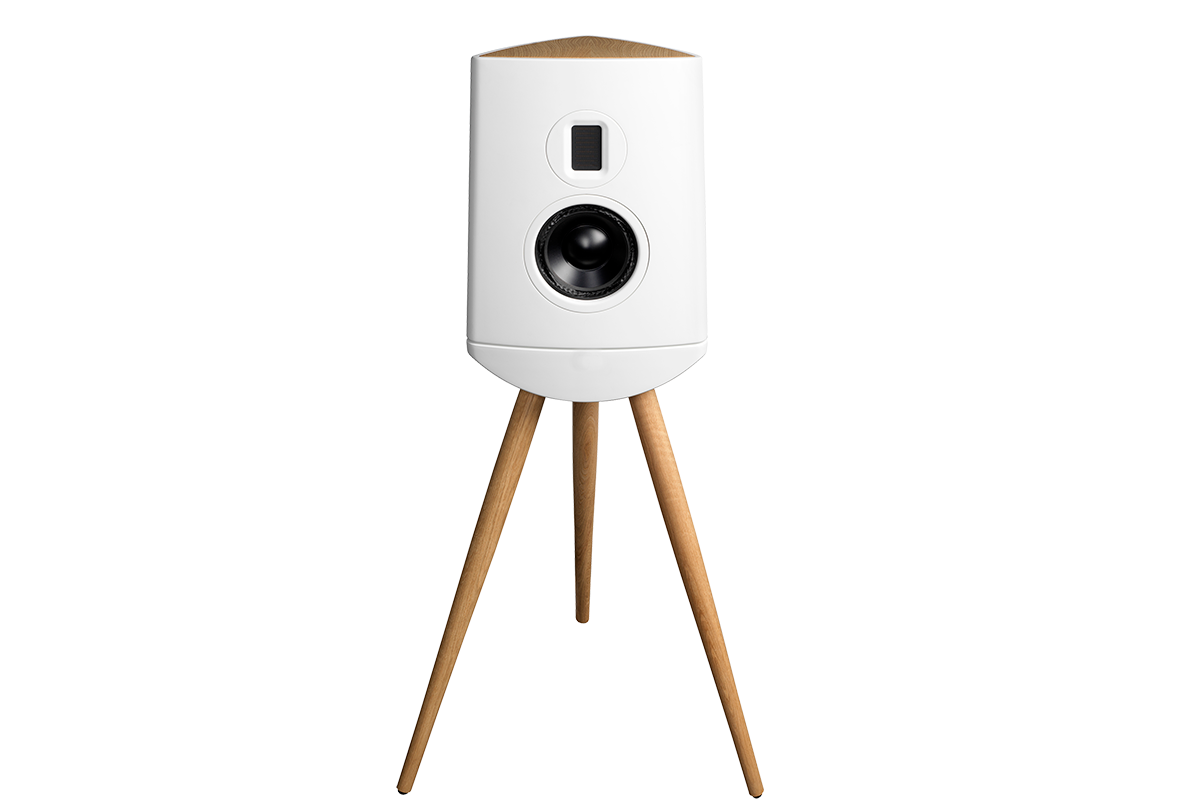

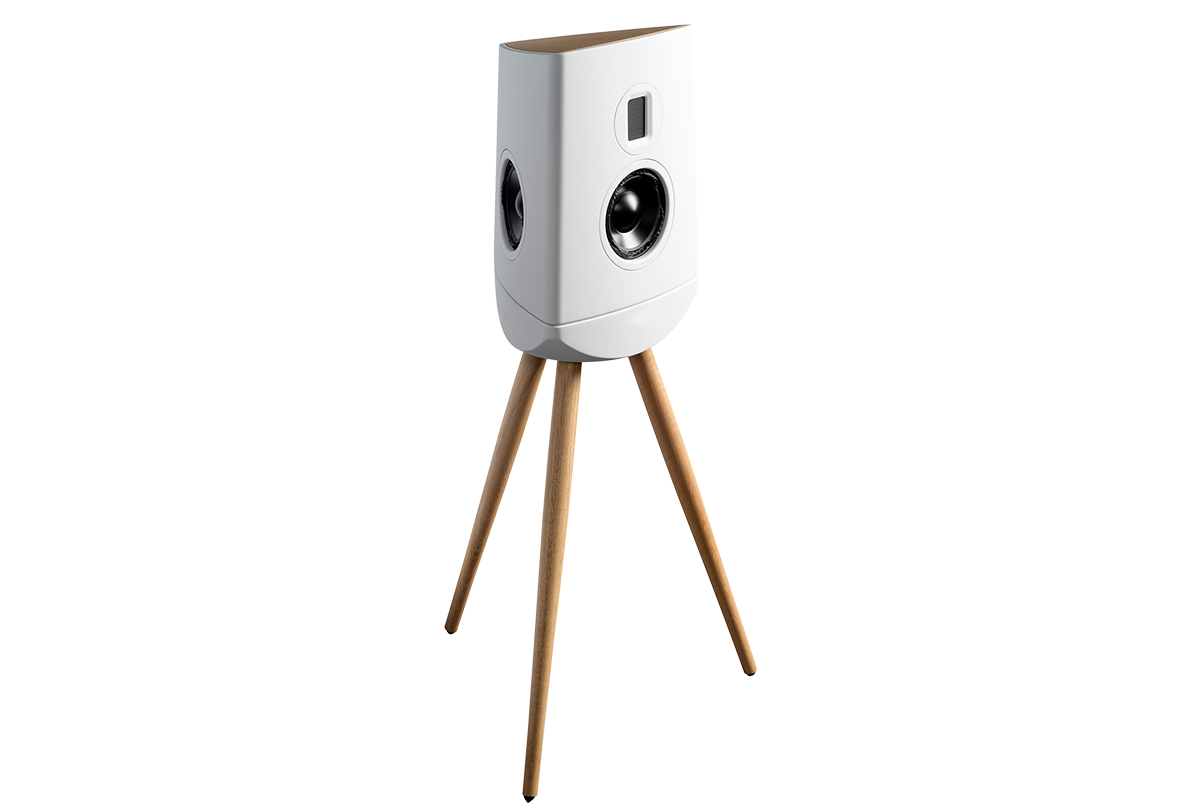

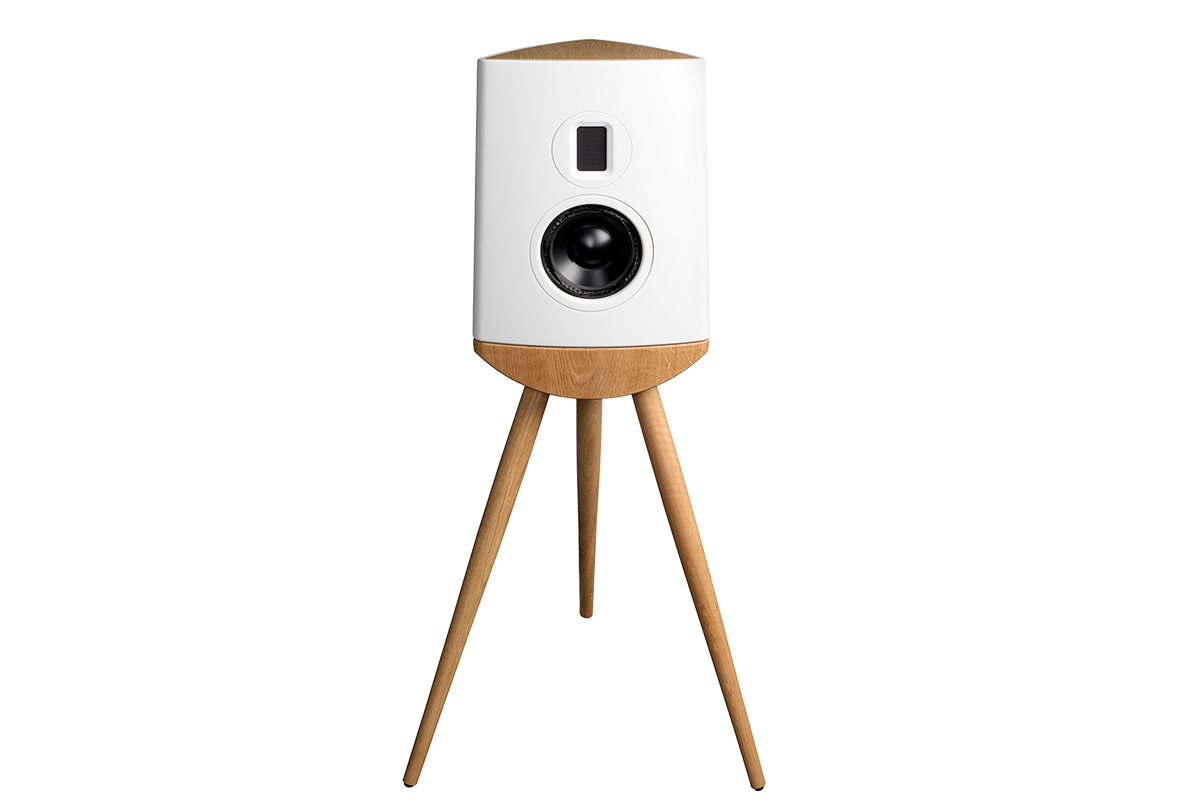

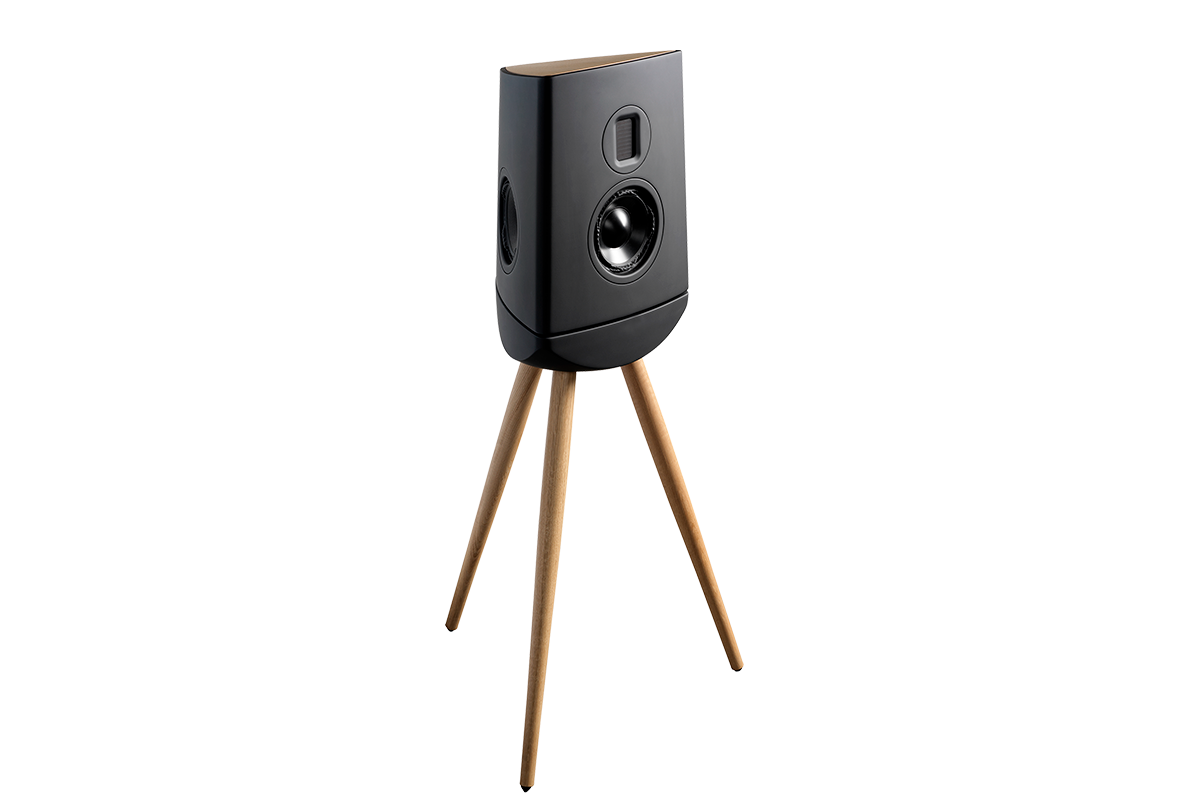

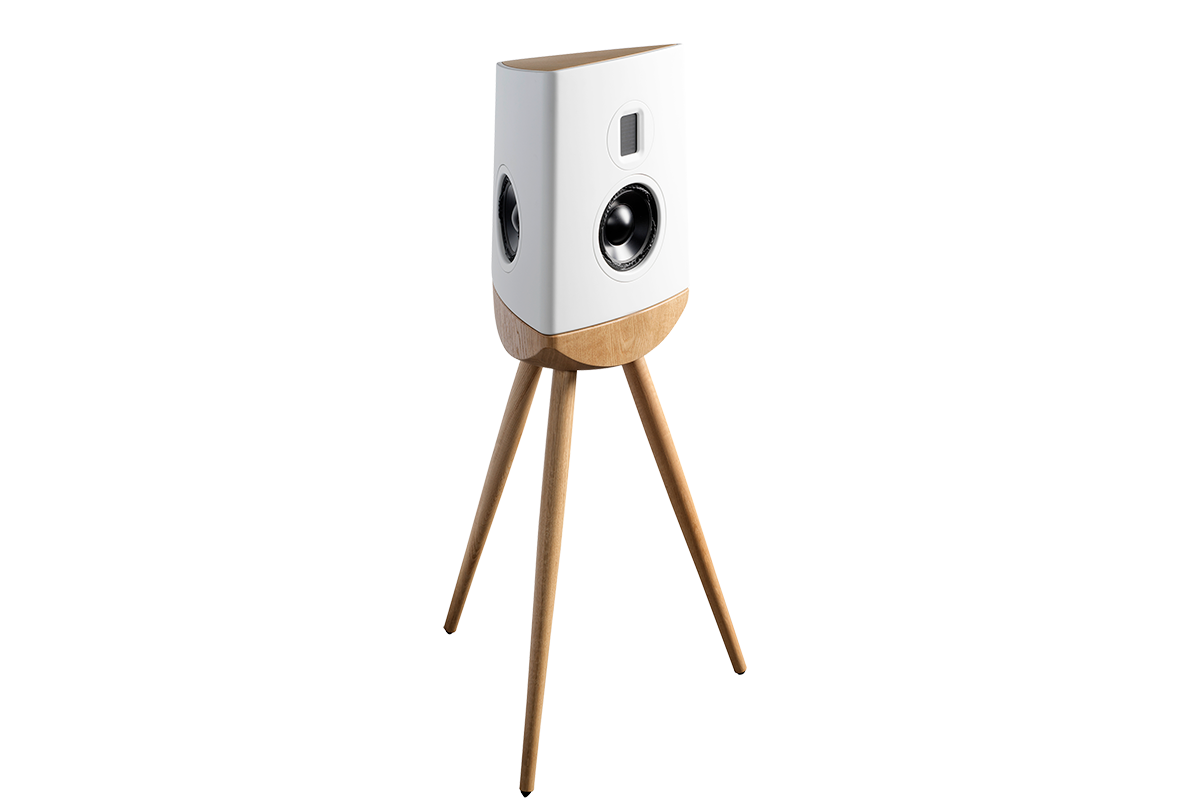

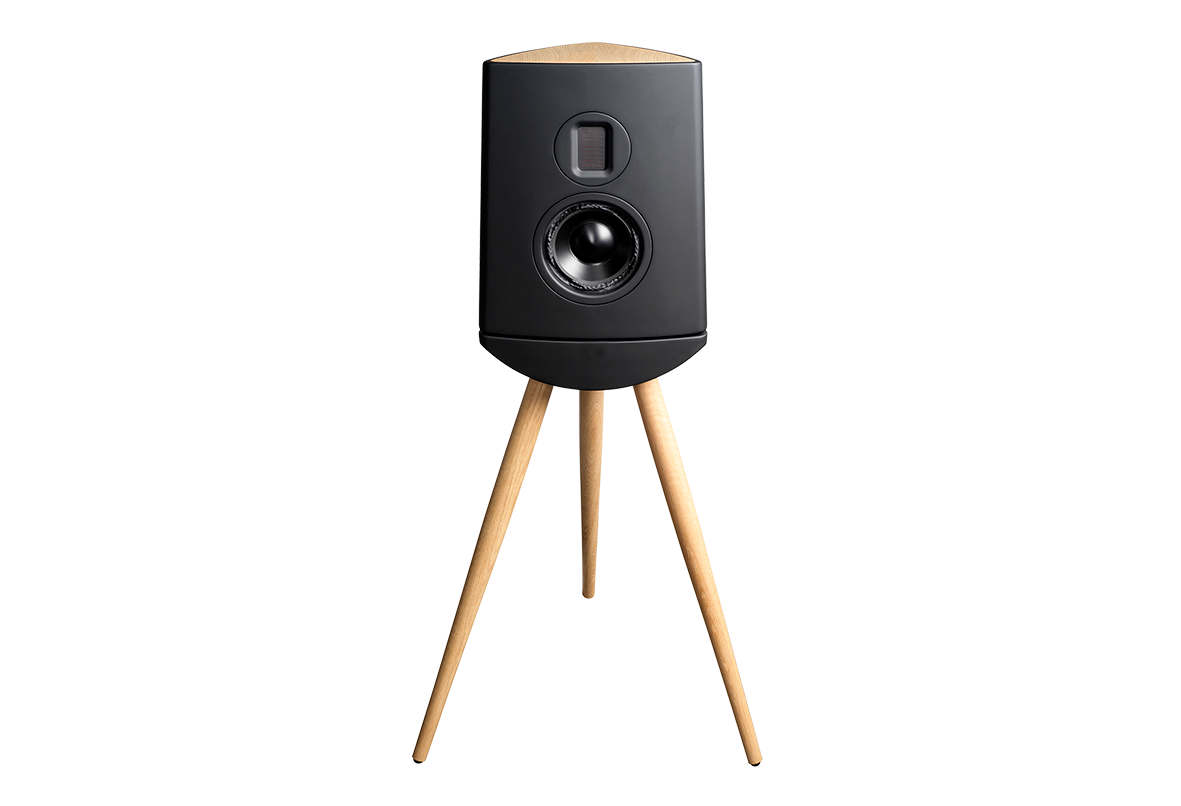

• Finishes: Black/Oak, White/Oak, Black/Black, White/White

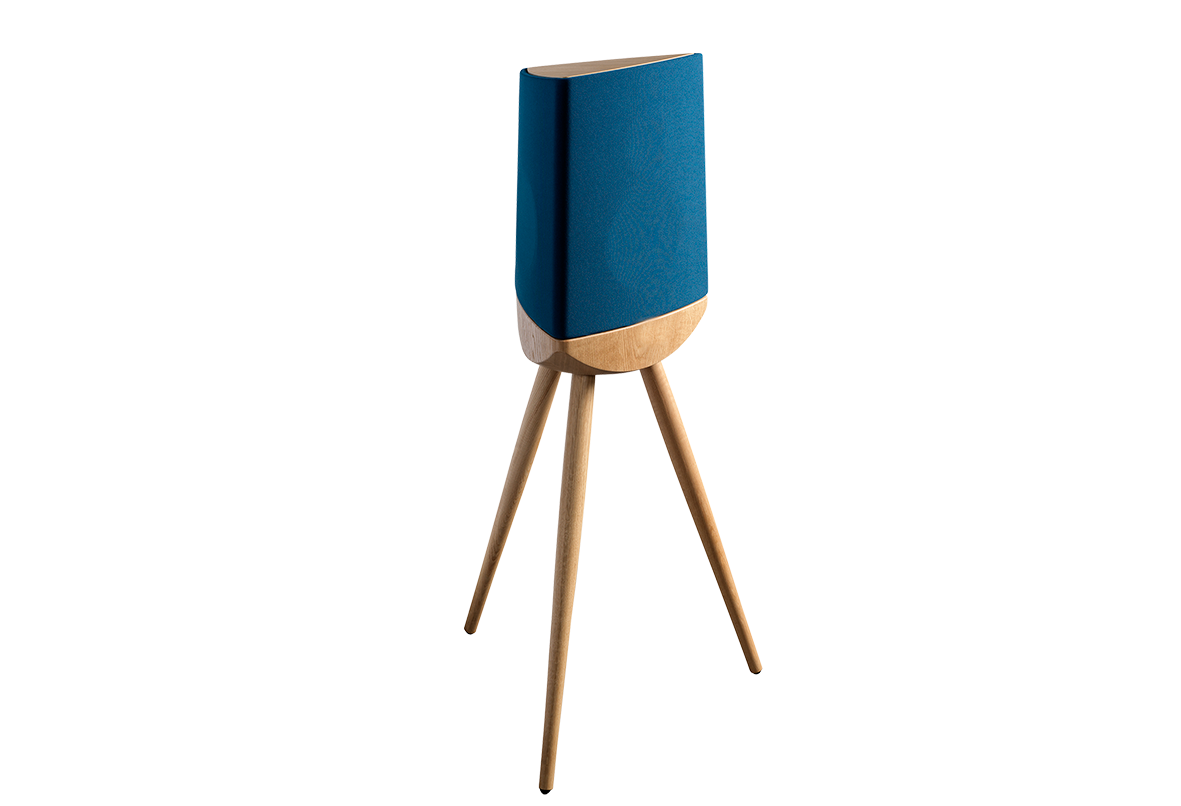

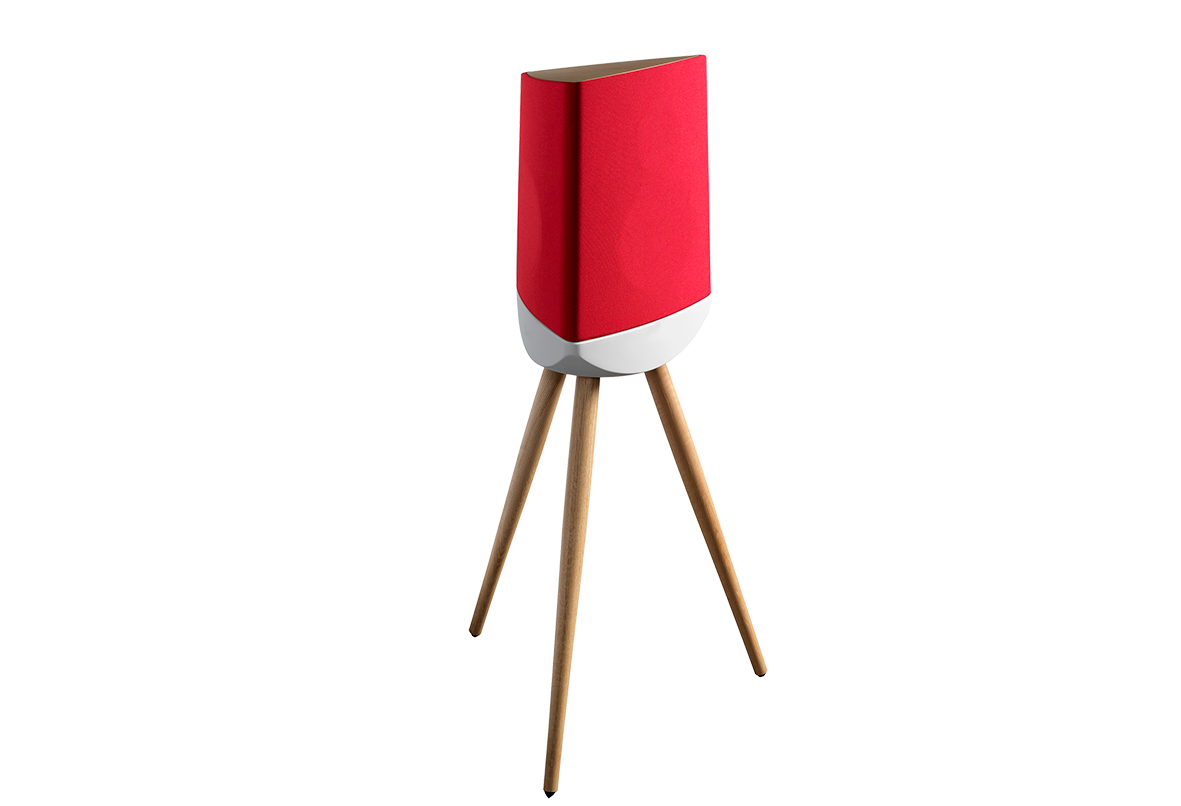

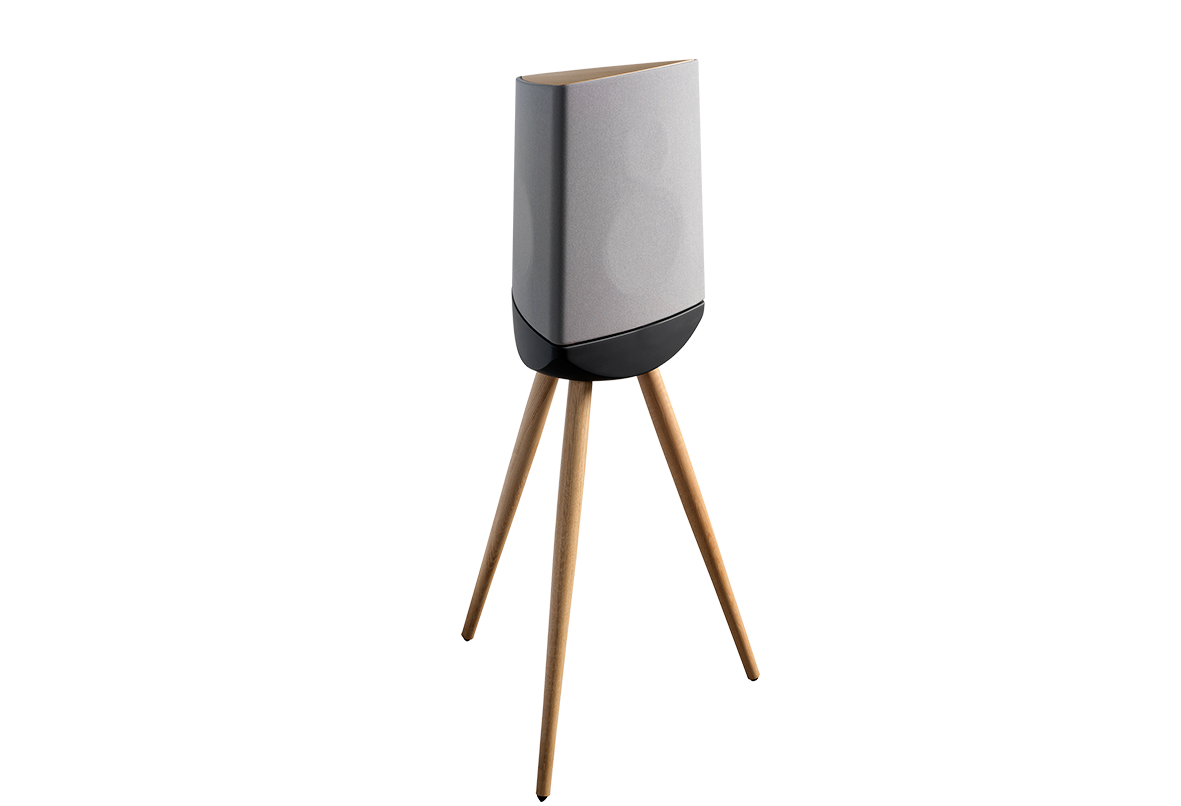

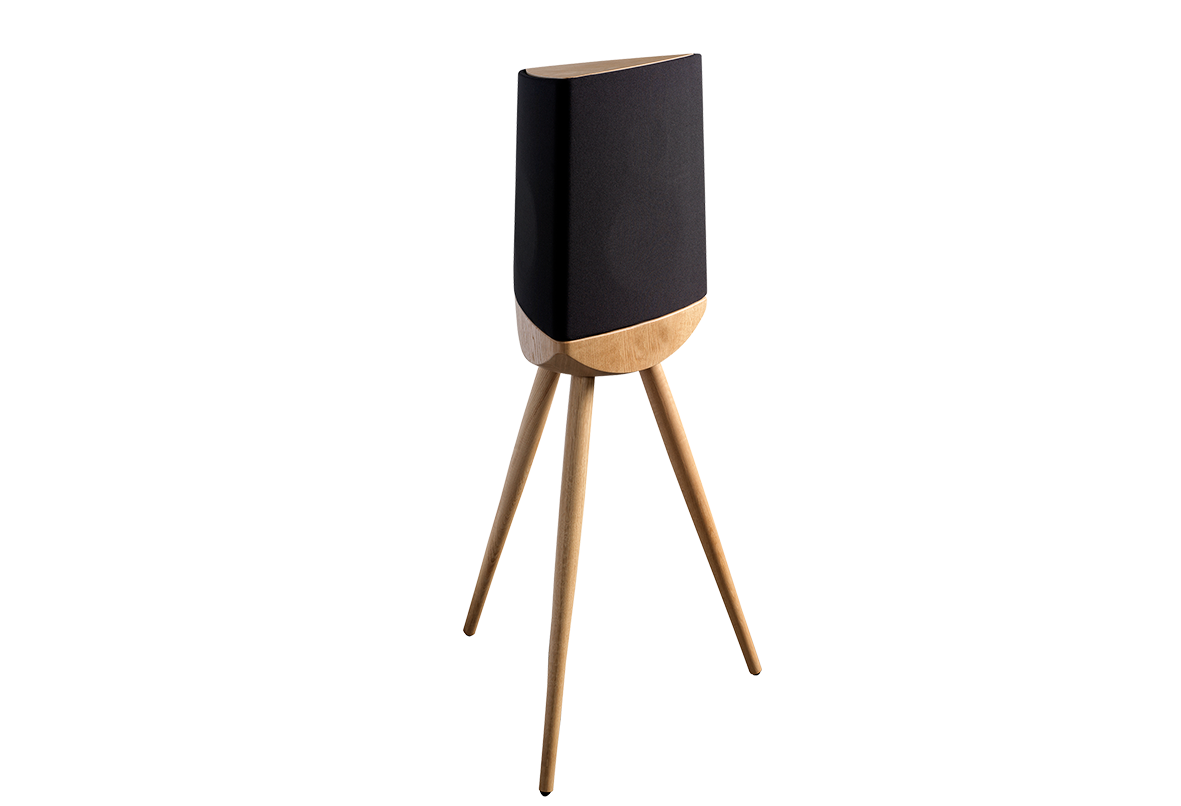

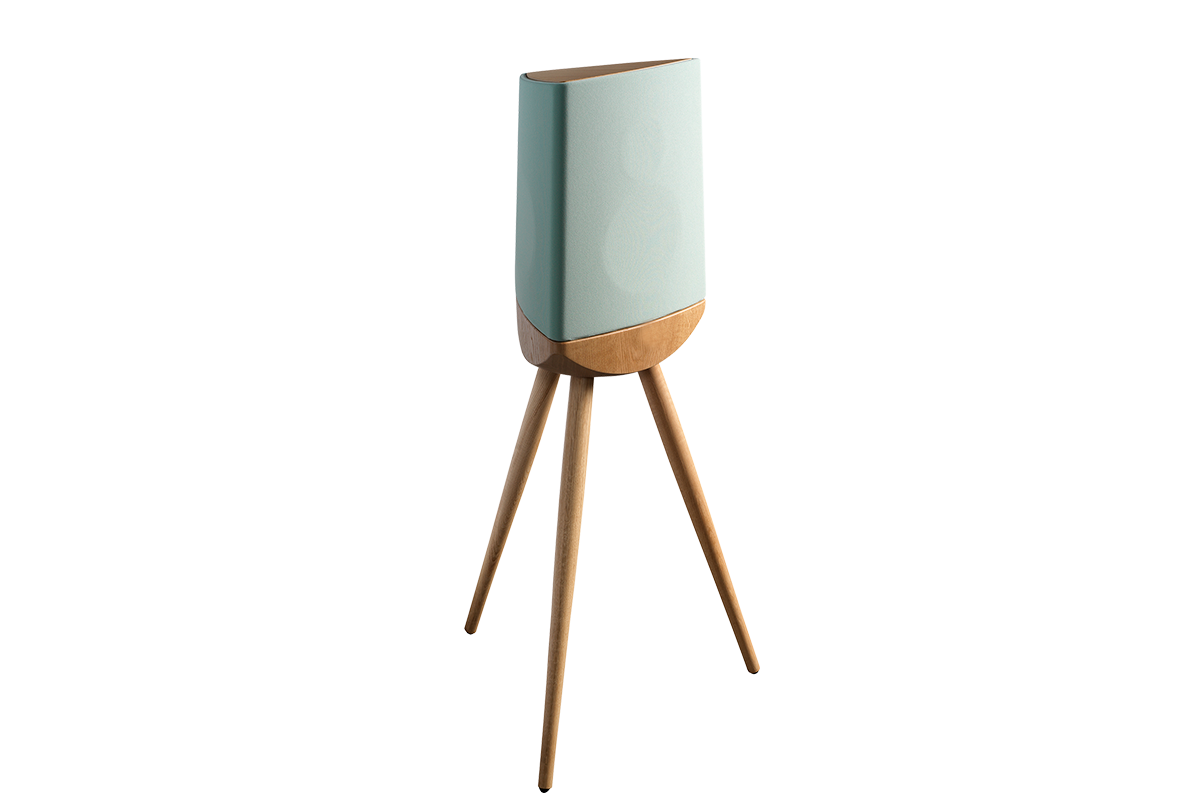

• Grille Options: Optional fabric grilles in multiple designer colors

Summary

The Lyngdorf Cue‑100 is for the audiophile who demands precision, dynamics, and elegant integration into the modern living space. It offers the imaging of a mini-monitor, the bandwidth of a floorstander, and the refinement of studio monitors — all in a design-forward package.

Whether you're rediscovering your vinyl collection, streaming high-res audio, or mastering your room with DSP, the Cue‑100 is ready to reveal every note, breath, and nuance.
