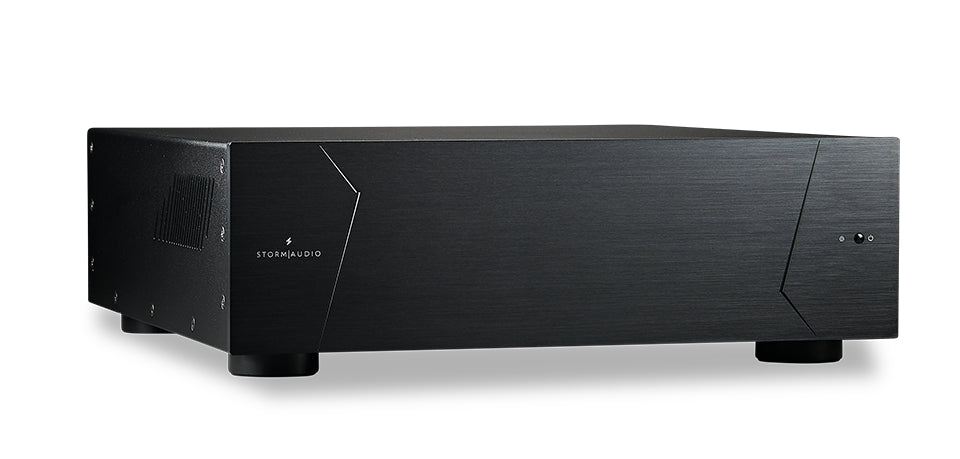

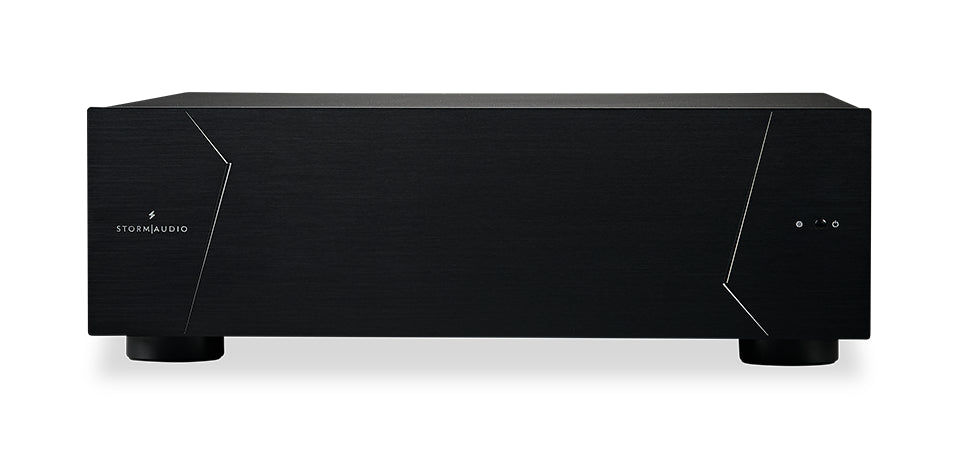

StormAudio - PA 8 Ultra MK3

Built upon StormAudio’s robust and high-performance MK2 generation, the PA MK3 range shines with its refined and classy appearance.

The result of a close collaboration with Danish company Pascal Audio, StormAudio’s philosophy of reliable, controllable and impressive-sounding products is reflected in the Class D technology used in our amplifiers.

With its UMACTM Class D technology, the PA MK3 range demonstrates audiophile performance with high-efficiency, high-dynamic range and very low distortion. With four individual URECTM technology-based power supplies, each PA MK3 offers up to 3kW of power capacity with instantaneous response, adapting in real time to the demanding dynamics of cinema soundtrack reproduction.

If high power is required in your installation, you will find the solution in the PA 8 Ultra MK3. This model, offering up to 800W in Bridge Tied Load mode, is capable of driving any demanding loudspeaker or subwoofer found in a modern residential cinema.

When partnered with our ISP products, all PA MK3 status information becomes accessible to the installer within the ISP WebUI interface thanks to StormMonitoring technology, allowing for total visibility of the installation, whether locally or remotely.

All in all, the PA MK3 range delivers a without-compromise offering to power any installation.

The PA 8 Ultra MK3 includes:

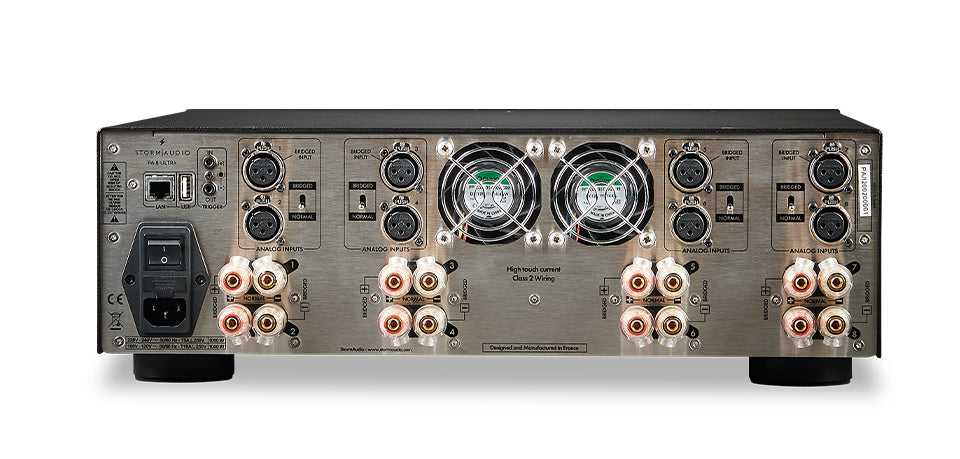

OUTPUTS

• 3-way binding post, 4mm wire

CONTROL

• Ethernet (Monitoring)
• Trigger IN

RACK SIZE

•   3RU

INPUTS

• 8ch XLR

CONFIGURATION

• 8ch Single Ended / 4ch Bridged Tied Load
• Class D

SPECIFICATIONS

• SNR (p-rated) - 115dB
• THD+N (1W) - <0.005%

8ch SE, 26 dB gain

• Power, all channels driven, 0,1% THD+N
• 200W RMS @ 8 ohm
• 400W RMS @ 4 ohm

4ch BTL, 32 dB gain

• Power, all channels driven, 0,1% THD+N
• 800W RMS @ 8 ohm
• 800W RMS @ 4 ohm
