Klipsch R-101SW SUBWOOFER

SPUN-COPPER THERMOFORMED CRYSTALLINE POLYMER (TCP) WOOFERS

Thermoformed Crystalline Polymer (TCP) woofers are exceptionally light while being extremely rigid and tightly packed – providing remarkable low frequency response, with minimal cone breakup and distortion without degradation.

ALL-DIGITAL AMPLIFIER

The built-in, all-digital amplifier delivers ample power with high efficiency and true-to-source accuracy in reproduction, ensuring maximum efficiency for maximum output, detail, and power.

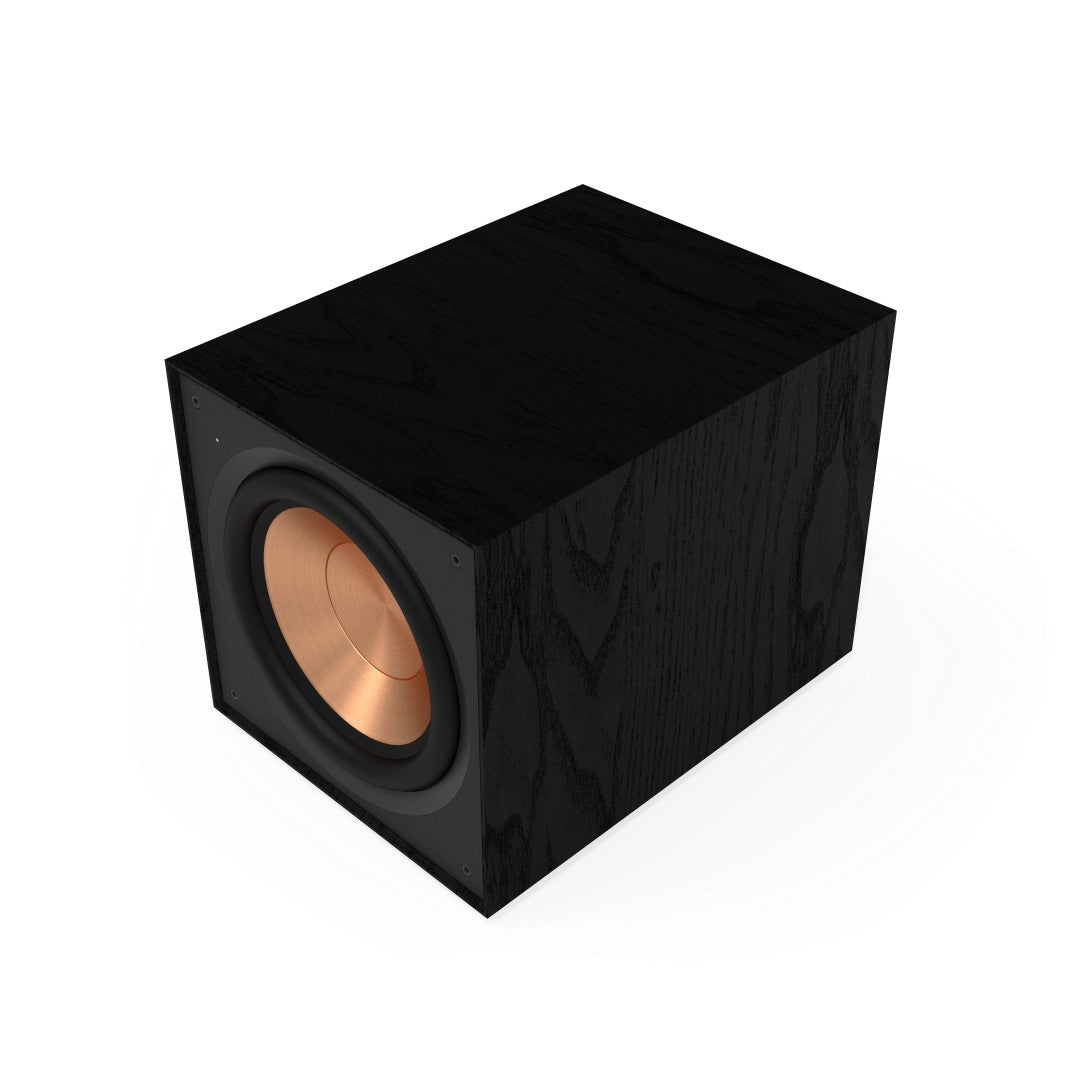

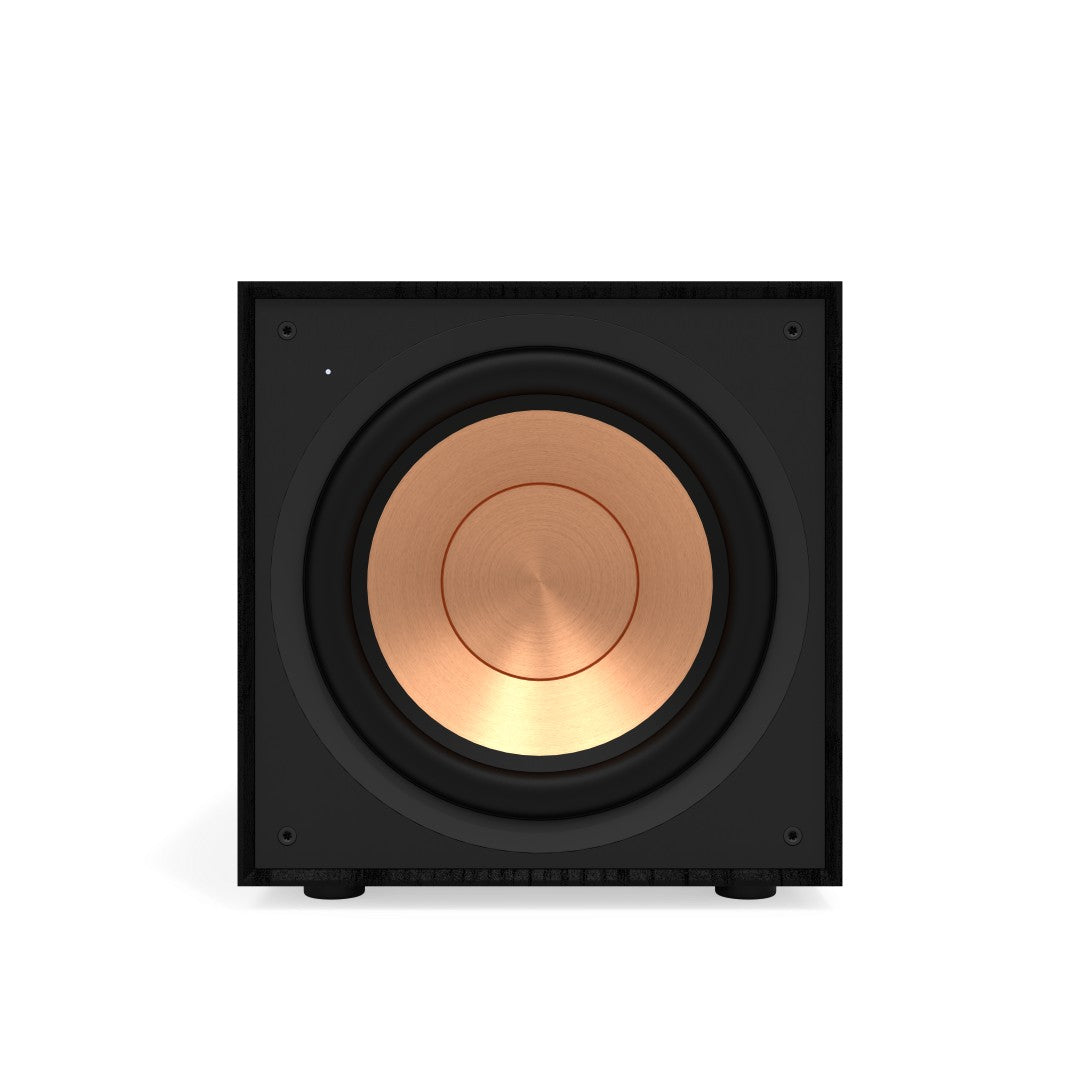

FRONT-FIRING DRIVER

The high-performance driver provides deep bass and room placement flexibility.

LOW PASS CROSSOVER AND PHASE CONTROL

Ensures the subwoofer’s low-frequency tones blend with other Klipsch speakers and establish the ideal level of bass for your room.

LINE/LFE INPUTS

Ensures compatibility with home theater receivers.

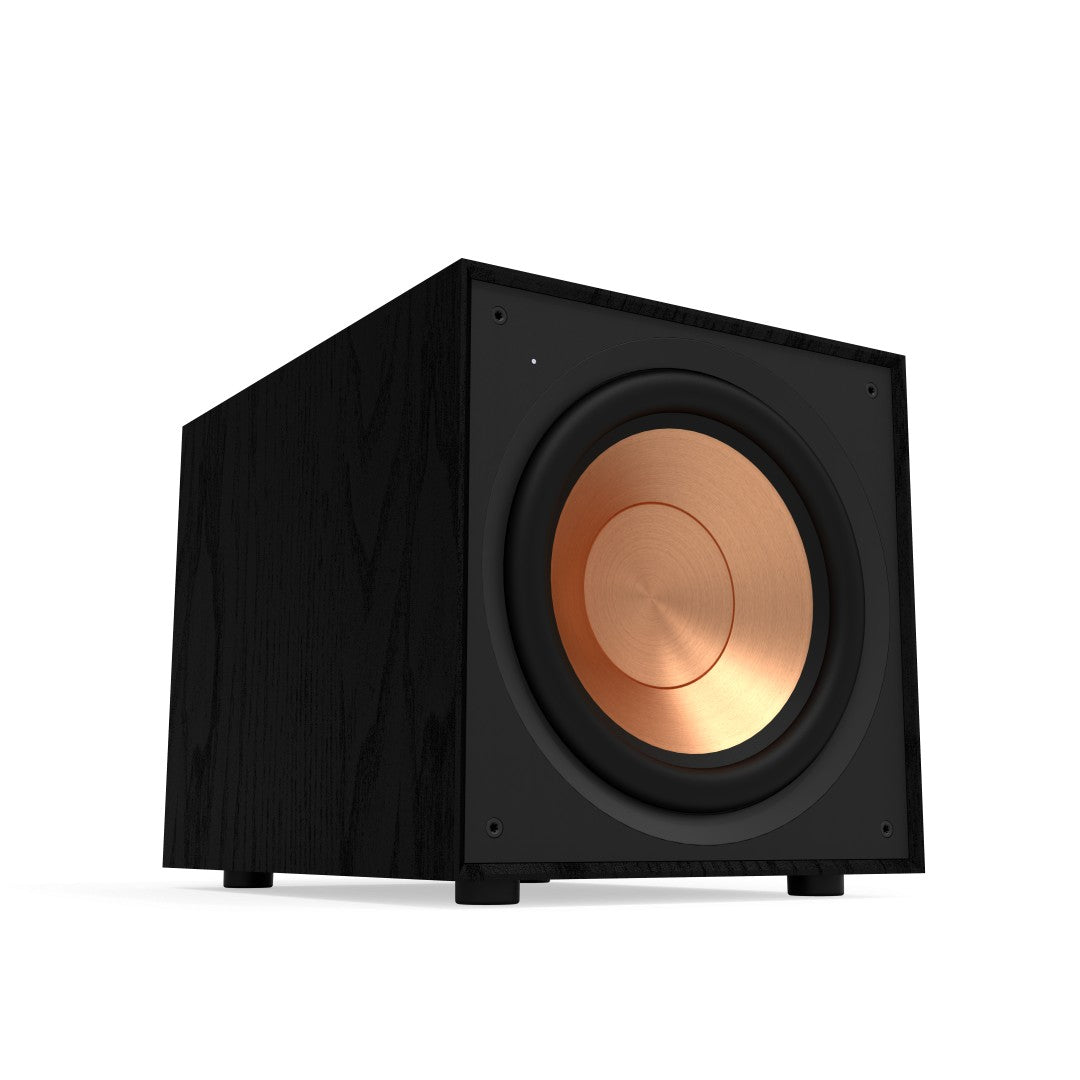

MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL

Stylish aesthetic with absolute durability that results in a seamless integration into any décor.

HIGH QUALITY CABINET DESIGN

Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet vibration for less audible coloration and improved sonic accuracy.

FRONT-MOUNTED LED POWER INDICATOR

Indicates when the system is on or off.

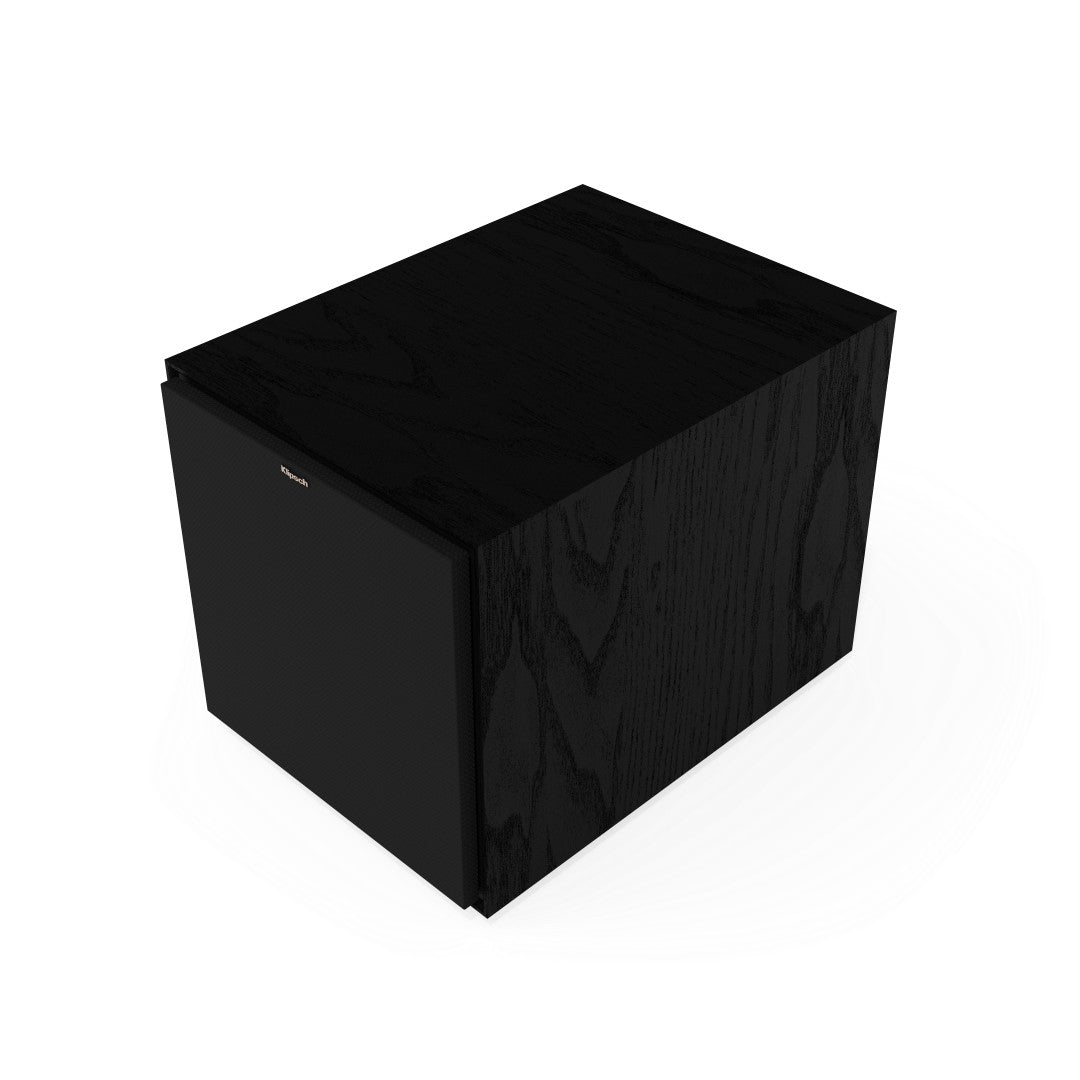

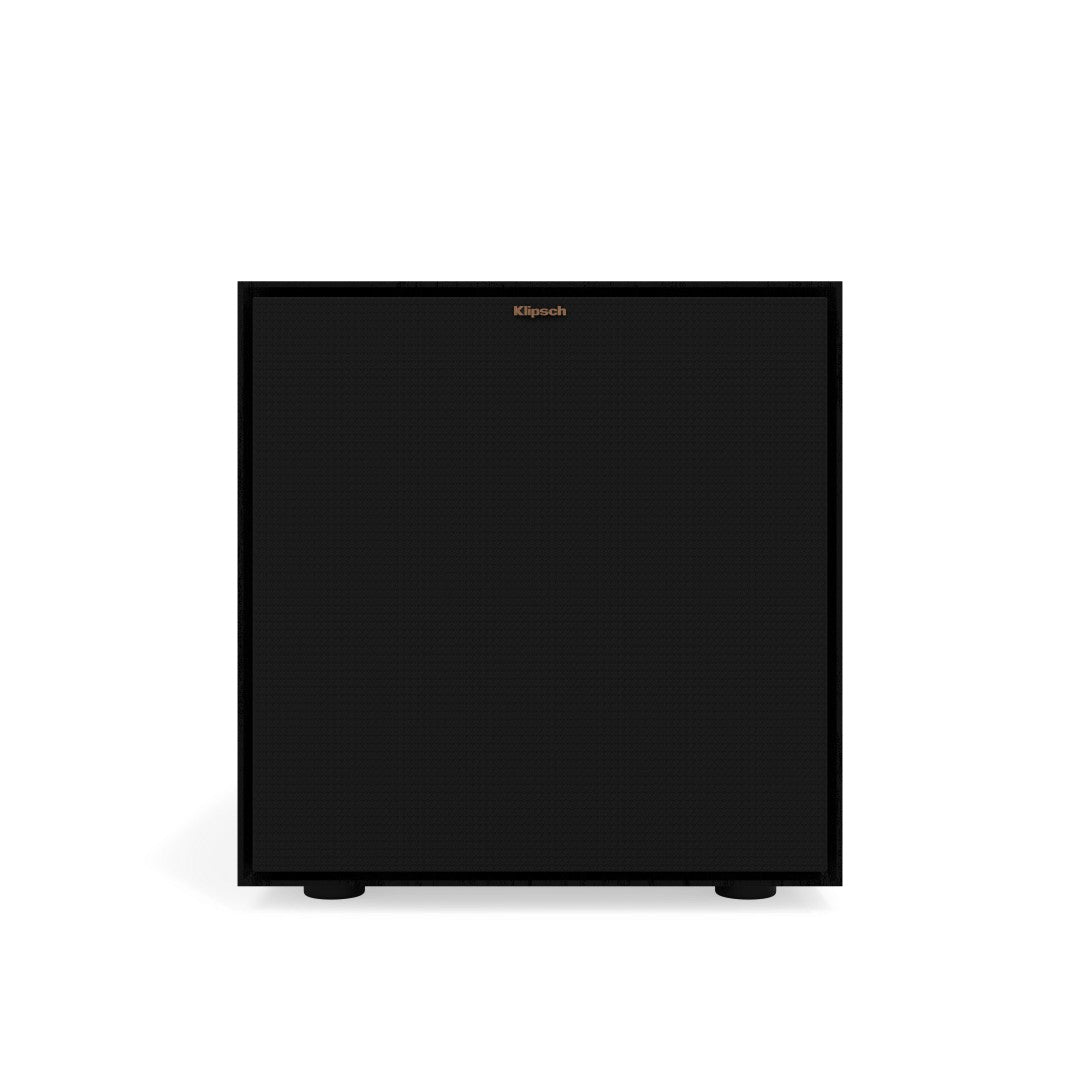

LOW PROFILE GRILLE

Adds a refined look that is acoustically transparent.

SPECIFICATIONS

• FREQUENCY RANGE  - 29.5Hz - 120Hz
• MAXIMUM ACOUSTIC OUTPUT - 115 dB
• AMPLIFIER - All Digital
• AMPLIFIER POWER (CONT/PEAK) - 150W/300W
• AMPLIFIER FEATURES - Volume, Low-pass, 0/180 phase, Auto Power On
• DRIVER COMPONENTS - 10" high excursion spun-copper TCP woofer
• ENCLOSURE MATERIAL - MDF

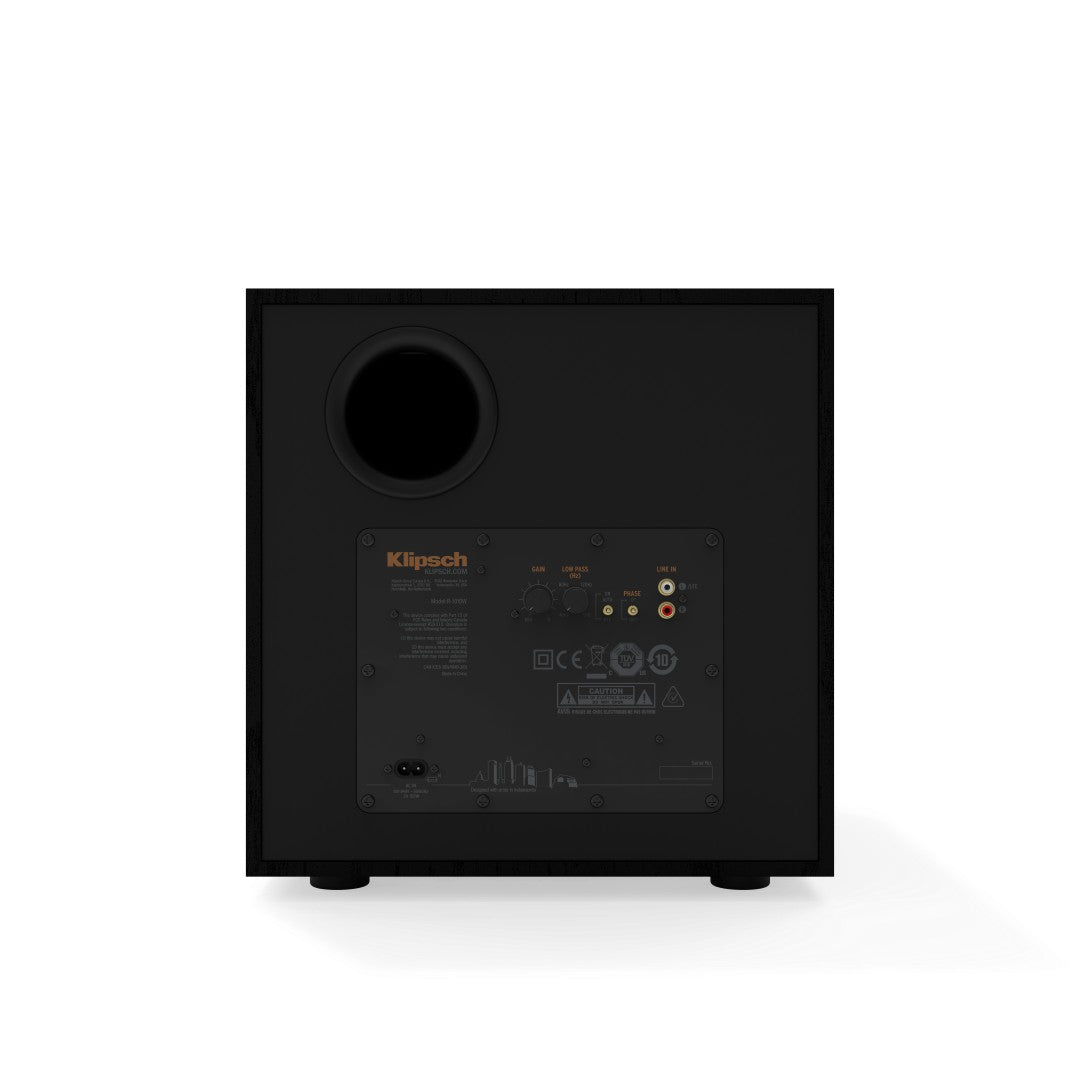

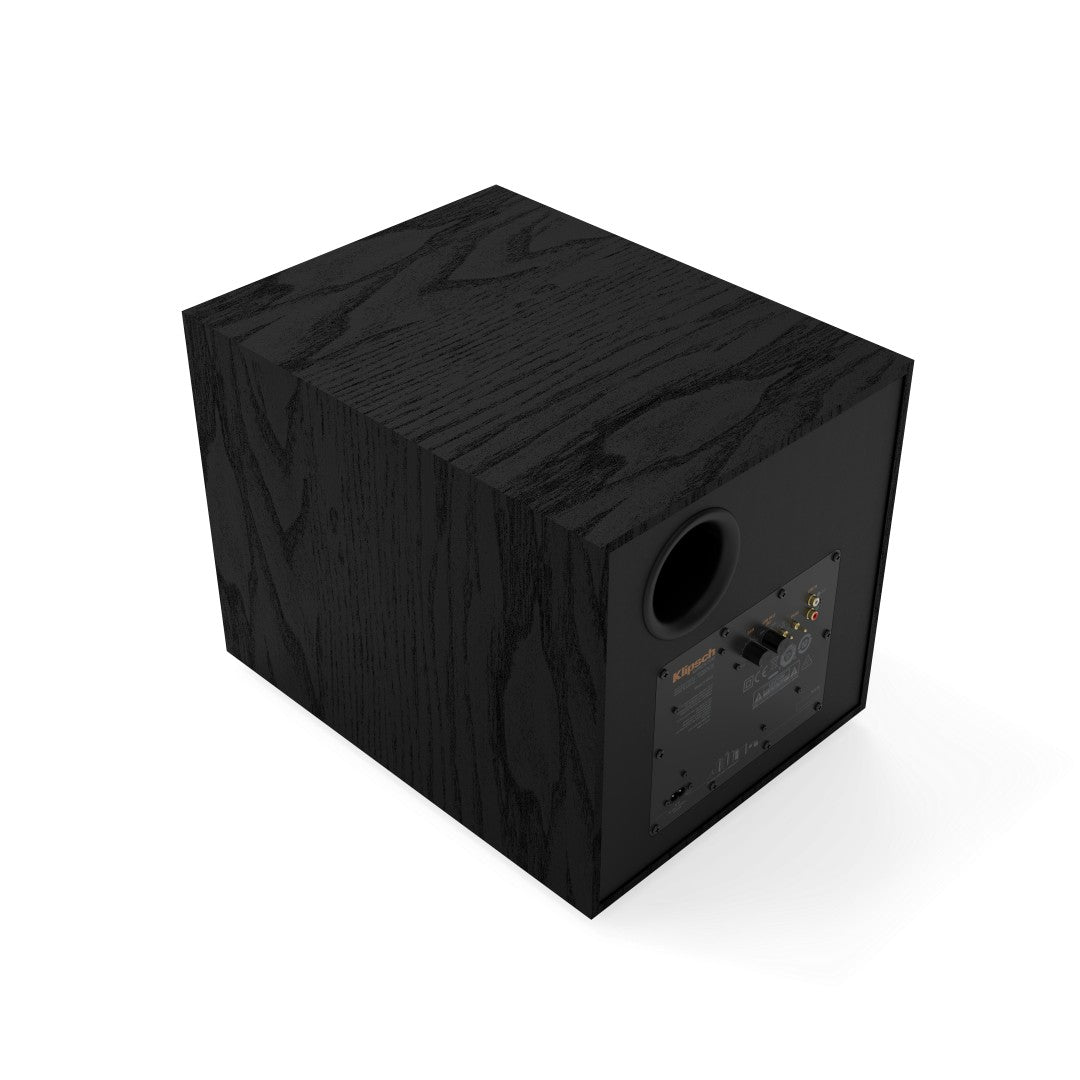

• ENCLOSURE TYPE - Bass-Reflex via rear-firing port
• INPUTS - Line level/LFE RCA jacks
• HEIGHT INCHES (MM) - 14.6" (370 mm)
• WIDTH INCHES (MM) - 14.0" (356 mm)
• DEPTH INCHES (MM) - 19.7" (500 mm)
• PRODUCT WEIGHT LBS (KG) - 31 lbs (13.9 kg)
• FINISHES - Black Textured Wood Grain Vinyl
