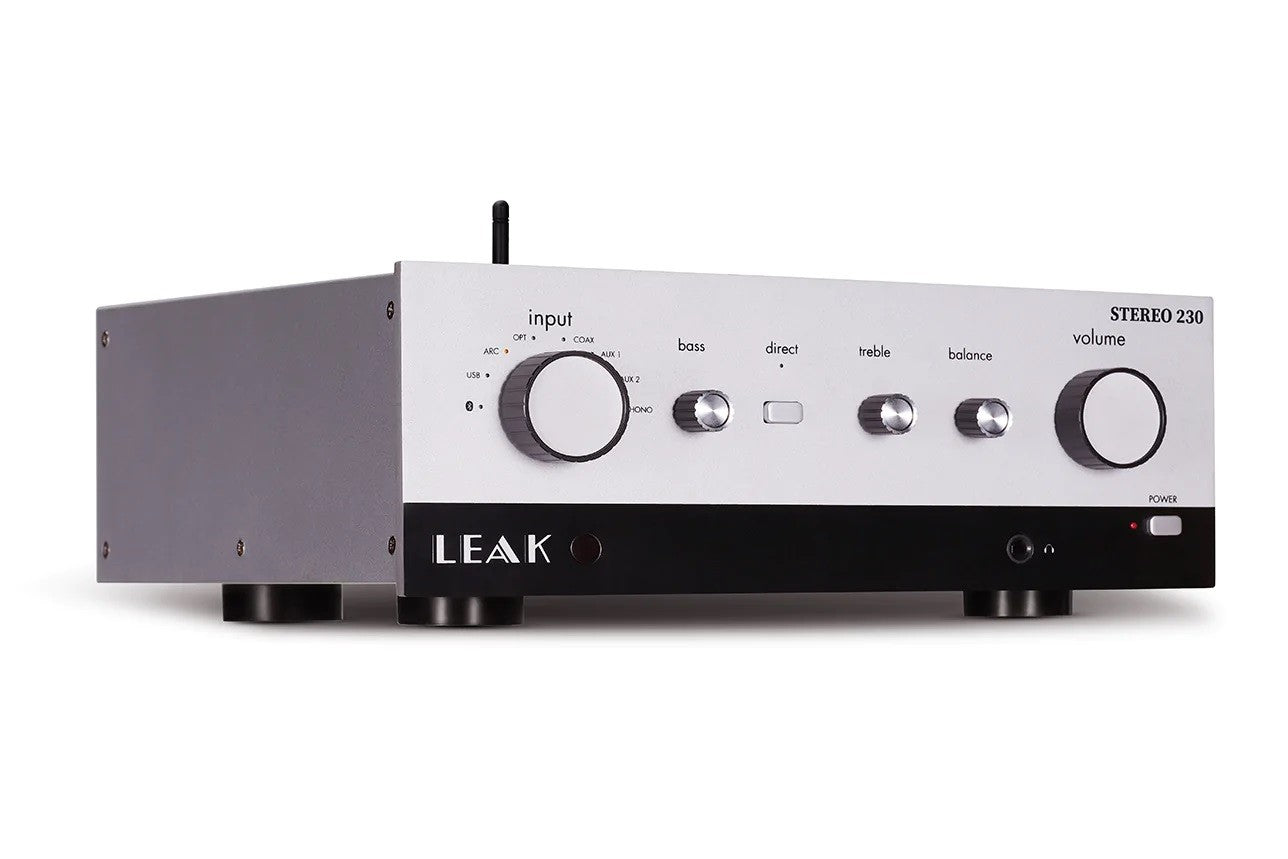

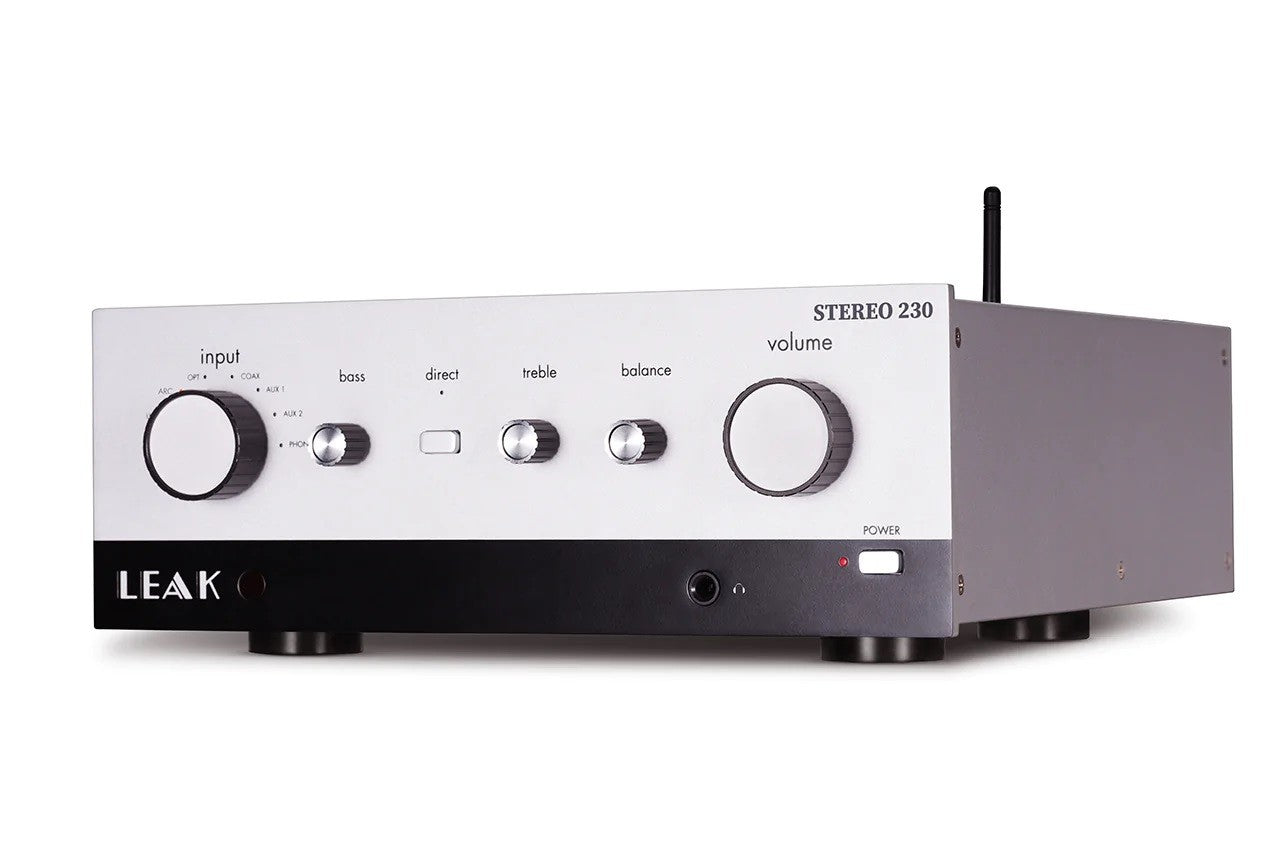

LEAK Stereo 230

TURNTABLE READY

Traditional audiophiles will recognise the assured quality in the high-quality, low-noise turntable input of the LEAK STEREO 230. Optimised for moving magnet cartridges, the JFET-based circuit offers precise RIAA equalisation in accordance with de facto industry standards for vinyl record playback.

HEADPHONE USERS

The LEAK STEREO 230 uses a dedicated amplifier circuit with current-feedback technology for the headphone output. Equal in performance to standalone headphone amplifiers, beyond the price class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.

SPECIFICATIONS

General Description - Integrated Amplifier

Design Philosophy and Core Technology

• 2 x 75W (8ohm) / 2 x 115W (4ohm) Class AB
• ST MOSFET TDA7293 Dual Parallel Amplifier
• ES9038Q2M 32-bit DAC
• Built-in Certified Hardware MQA Full Decoder (PC USB, Coax, Optical)
• Support Bluetooth 5.0 (aptX / aptX LL) streaming
• Low Noise Moving Magnet Phono stage
• Dedicated Current-Feedback Headphone AMP
• Support USB Upgrade

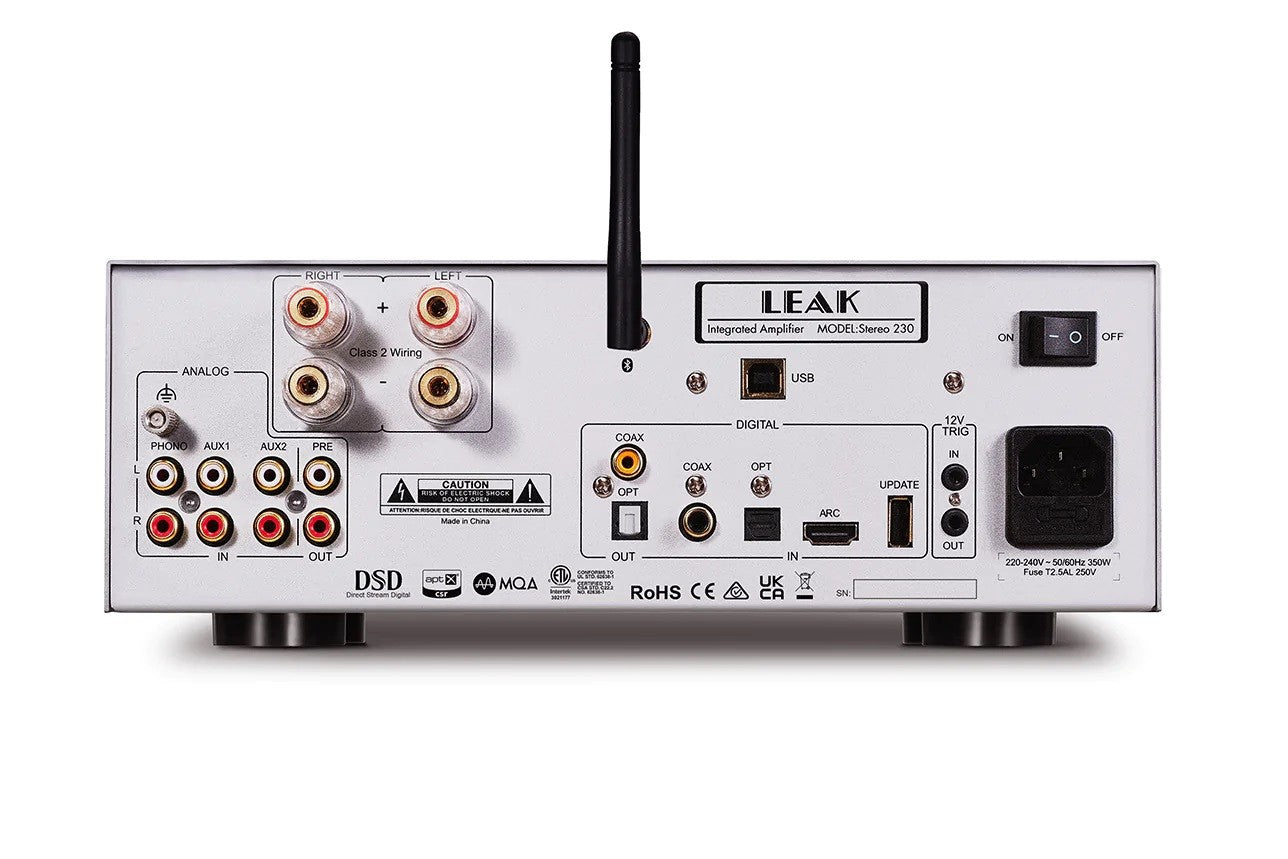

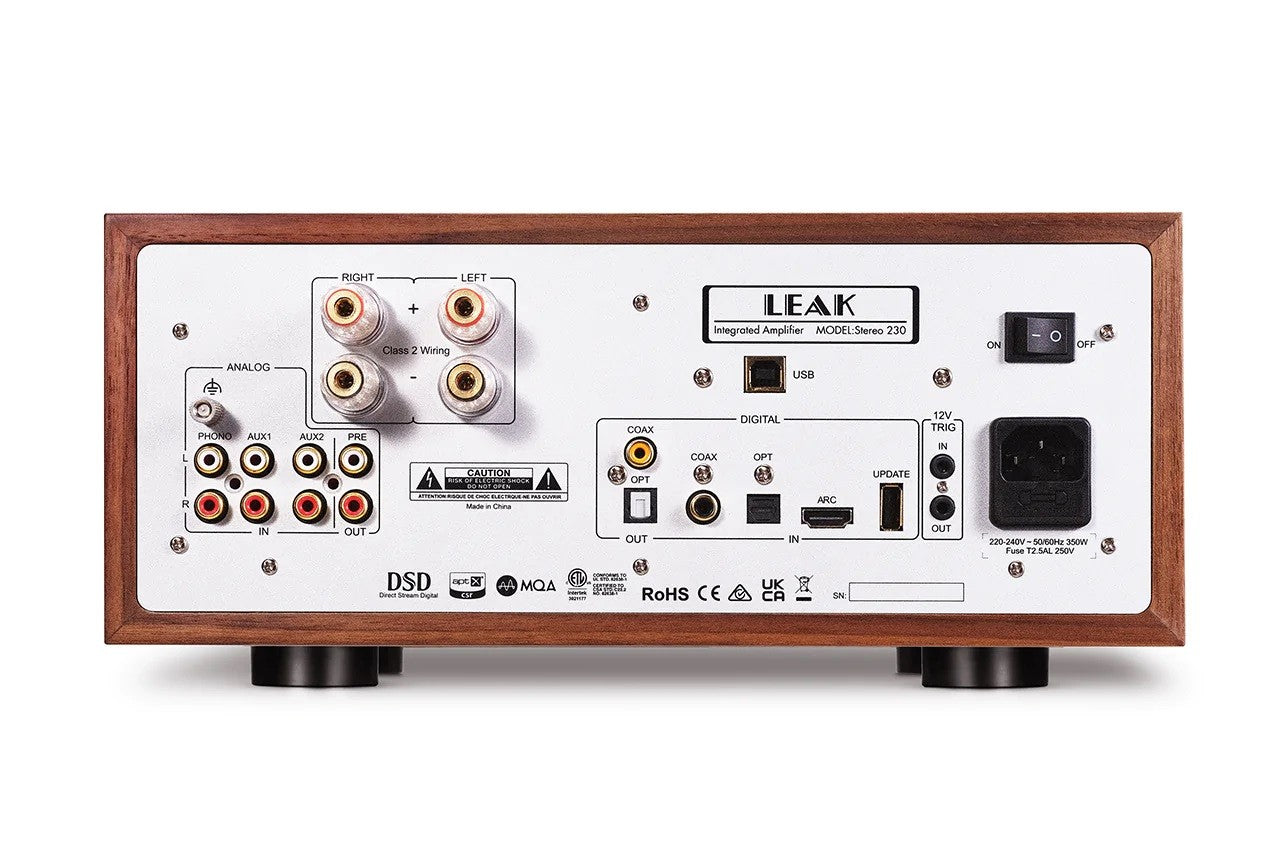

Inputs

• 2 x Analogue
• 1 x Phono (MM)
• 1 x SPDIF (Coax)
• 1 x SPDIF (Optical)
• 1 x HDMI ARC
• 1 x PC USB (USB B)
• 1 x Bluetooth (aptX/aptX LL)
• 1 x 12V Trigger

Outputs

• 1 x PRE Amplifier
• 1 x Stereo Speaker
• 1 x Headphone
• 1 x 12V Trigger

Sampling Frequency

• Optical/Coaxial: 44.1kHz ---192kHz
• PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512

Preamplifier Section

• Gain - +41dB (Phono MM)
• Input Sensitivity - 550mV (Line, Volume =MAX); 4.8mV (Phone MM, Volume=MAX)
• Input Impedance - 10K (Line); 47K // 100pF (Phono MM)
• Total Harmonic Distortion (THD) - <0.001% (1kHz @2V, TONE=On)
• Frequency Response - 20Hz-20kHz (+/-0.1dB)
• Output Voltage - 2.3V max. (Volume = MAX)
• Output Impedance - 100ohm
• Signal-to-Noise Ratio - >110dB (Line, A-weighted); >75dB (Phono MM, A-weighted)

DAC

• D to A Converter - ES9038Q2M
• Total Harmonic Distortion (THD) - <0.002% (1kHz @ 0dBFS)
• Output level (0dBFS, 1KHz) - 2.3Vrms
• Max. Sampling Frequency - Optical, Coaxial: 192kHz, PC USB: PCM768kHz, DSD512
• Signal-to-Noise Ratio (S/N) - >115dB (A-weighted)

Power Amplifier Section

• Gain - +32dB
• Rated Power Output - 2 x 75W (8ohm, THD<1%); 2 x 115W (4ohm, THD<1%)
• Frequency Response - 20Hz-20kHz (+/-0.3dB)
• Total Harmonic Distortion (THD) - <0.003% (1kHz @30W/8ohm)
• Input Sensitivity - 550mV
• Signal-to-Noise Ratio (S/N) - >109dB (A-weighted

Headphone Amplifier

• Total Harmonic Distortion (THD) - <0.01% (1kHz, 50mW)
• Output Impedance - 4.7ohm
• Load Impedance - 16-600ohm

General

• Standby Power Consumption - <0.5W
• Net Weight - 12.7kg (Walnut) / 11.1kg (Silver)
• Gross Weight - 15.2kg (Walnut) / 12.7kg (Silver)
• Dimensions (mm) (W x H x D) - 328*147*414 (Walnut) / 300*115*414 (Silver)
• Carton Size (mm) (W x H x D) - 514*428*210 (Walnut / Silver)

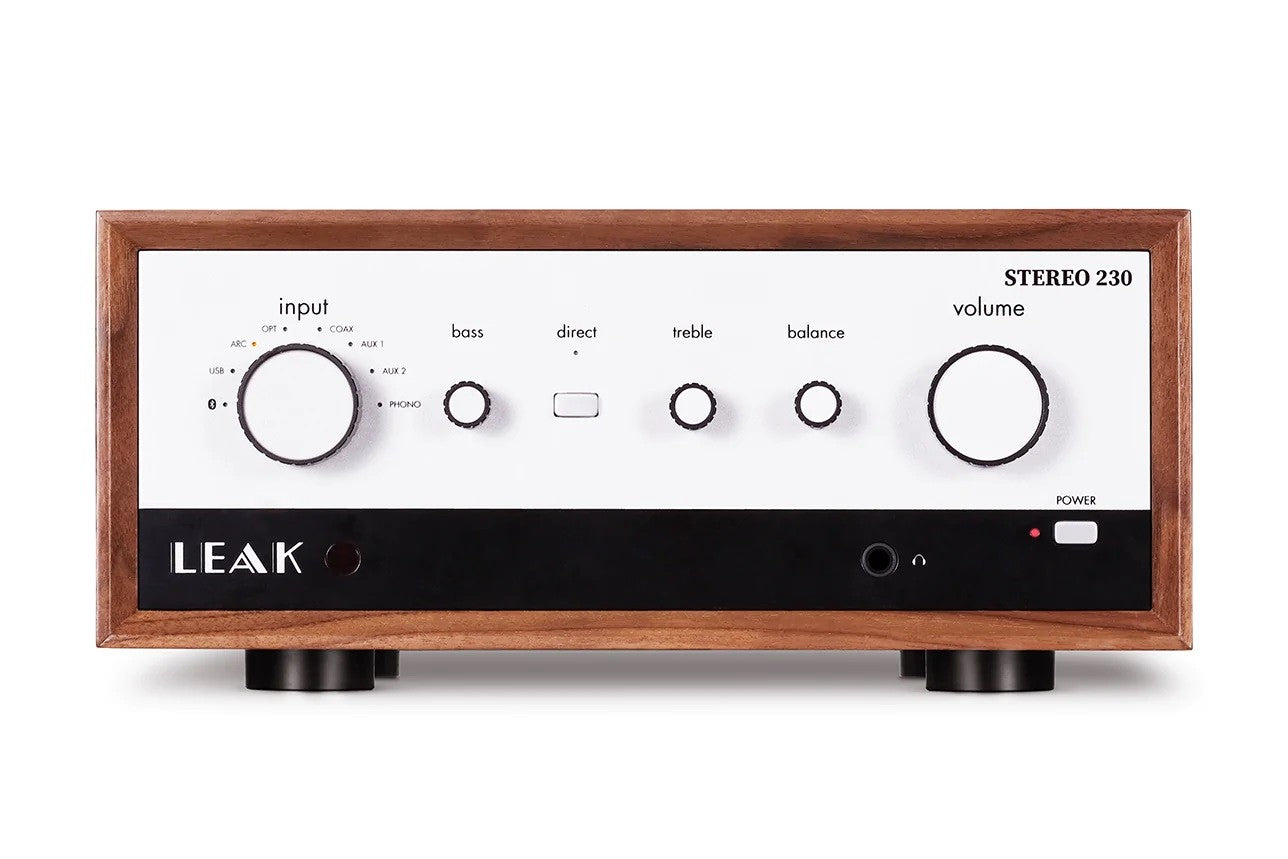

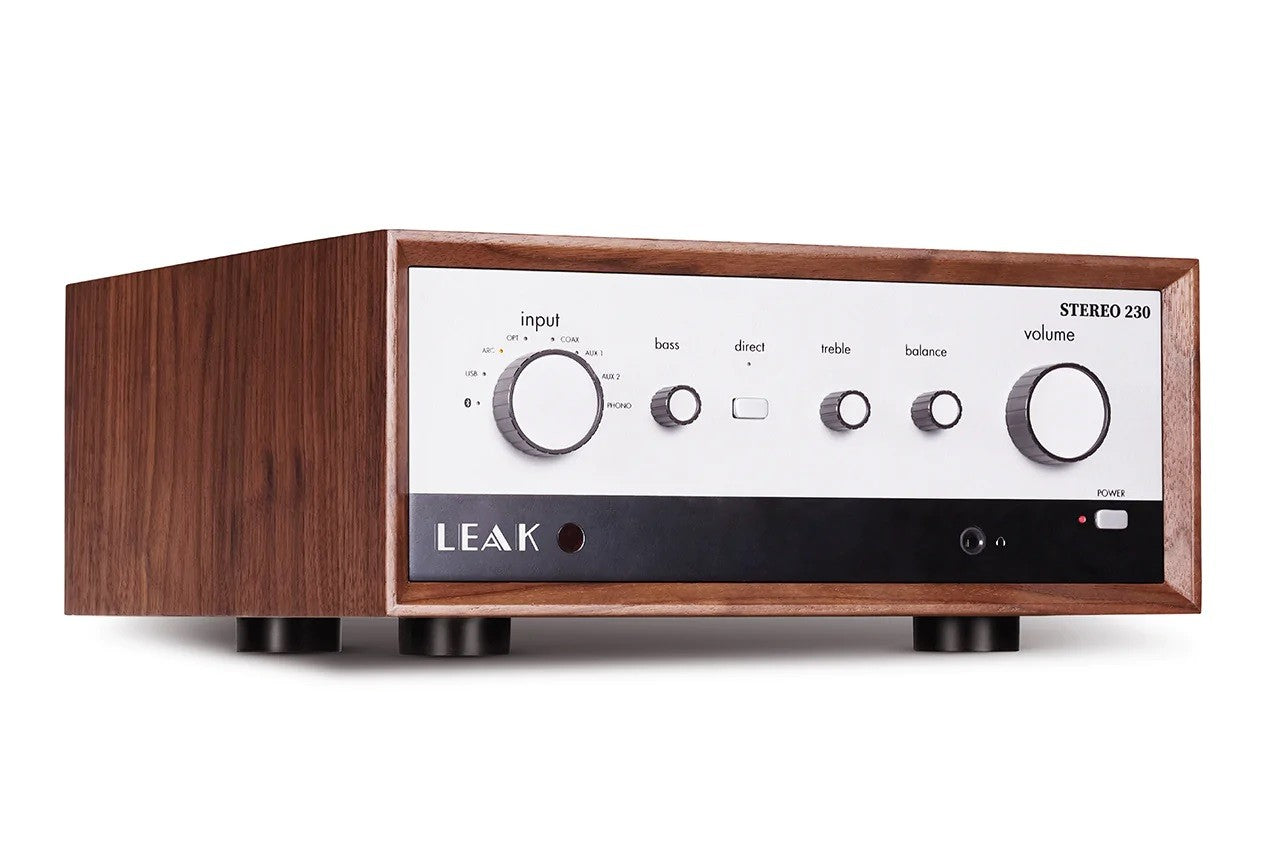

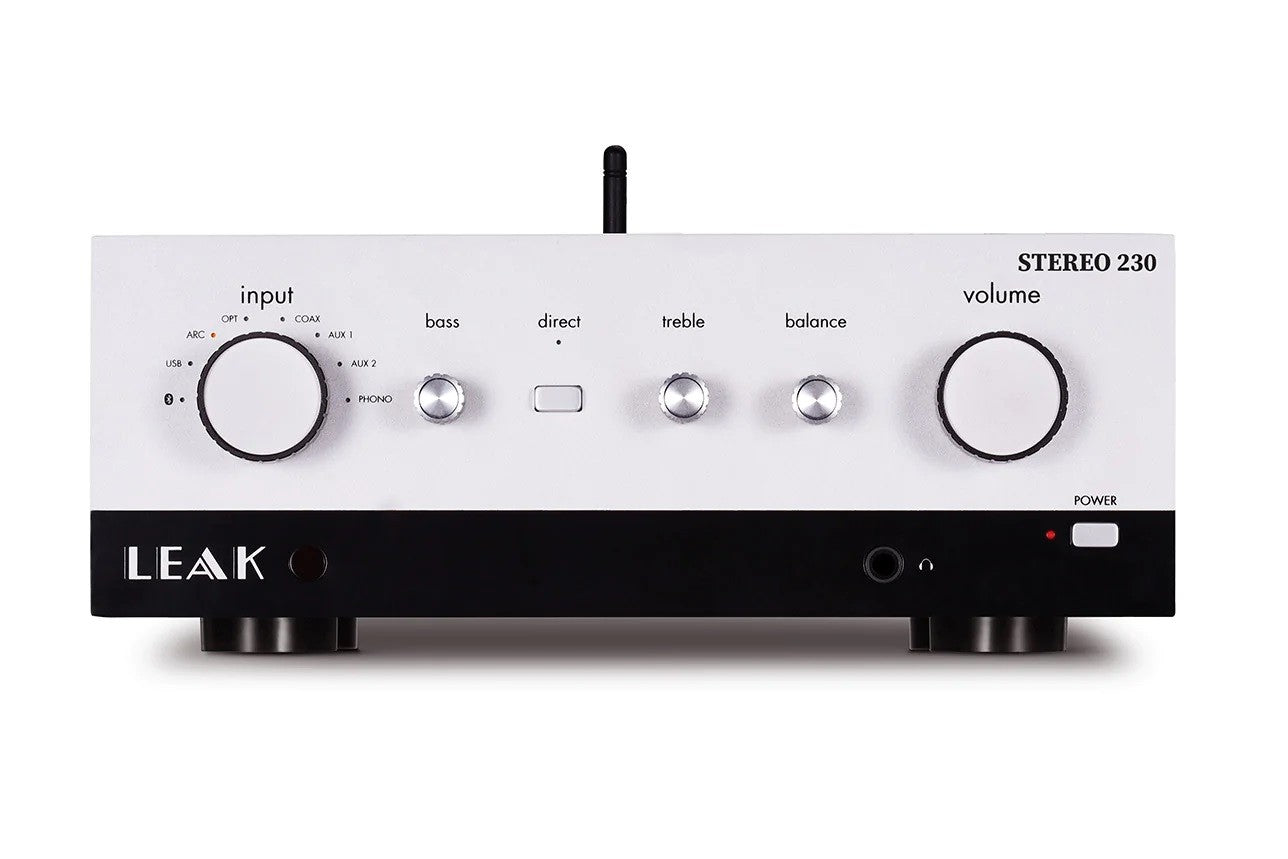

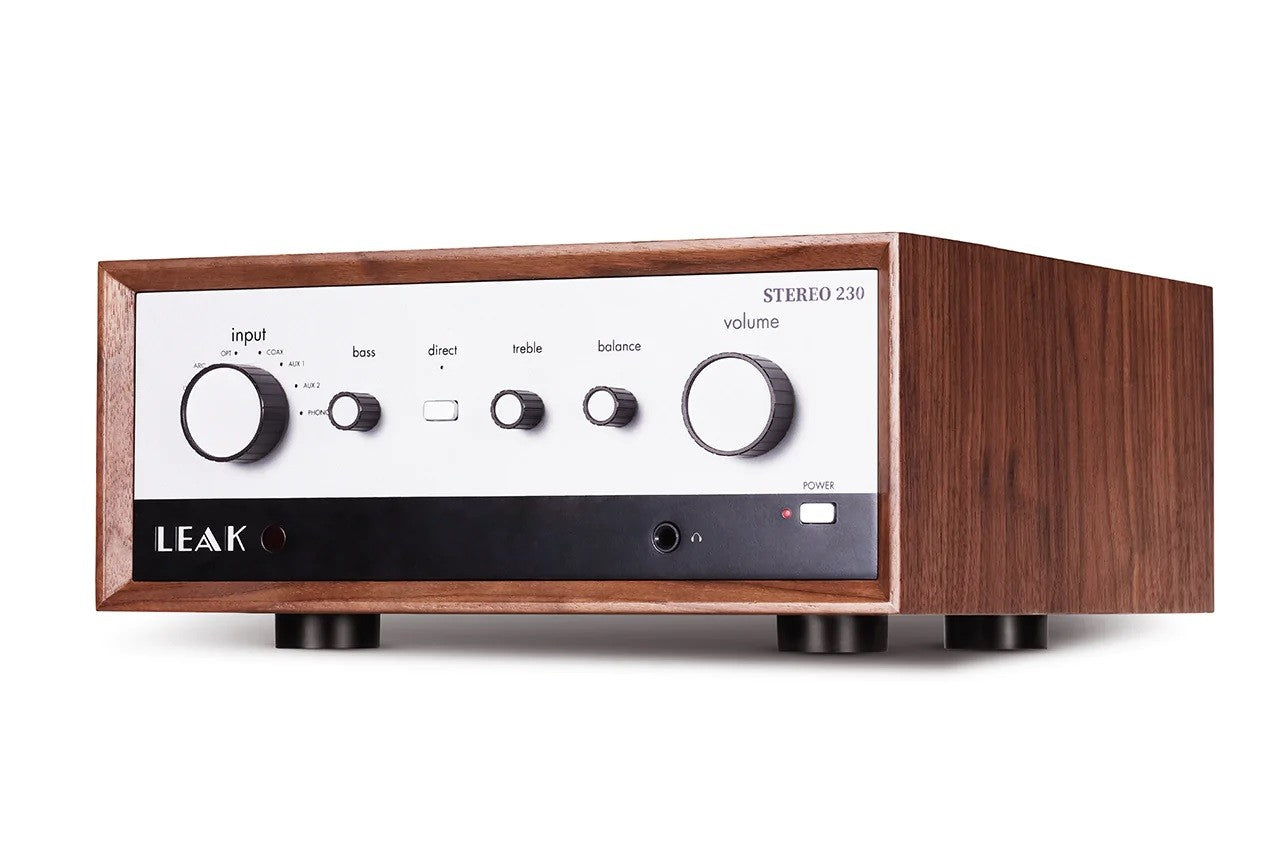

• Finish - Walnut / Silver
• Power Requirements (depending on region) - 220-240V ~ 50/ 60Hz; 100-120V ~ 50/ 60Hz

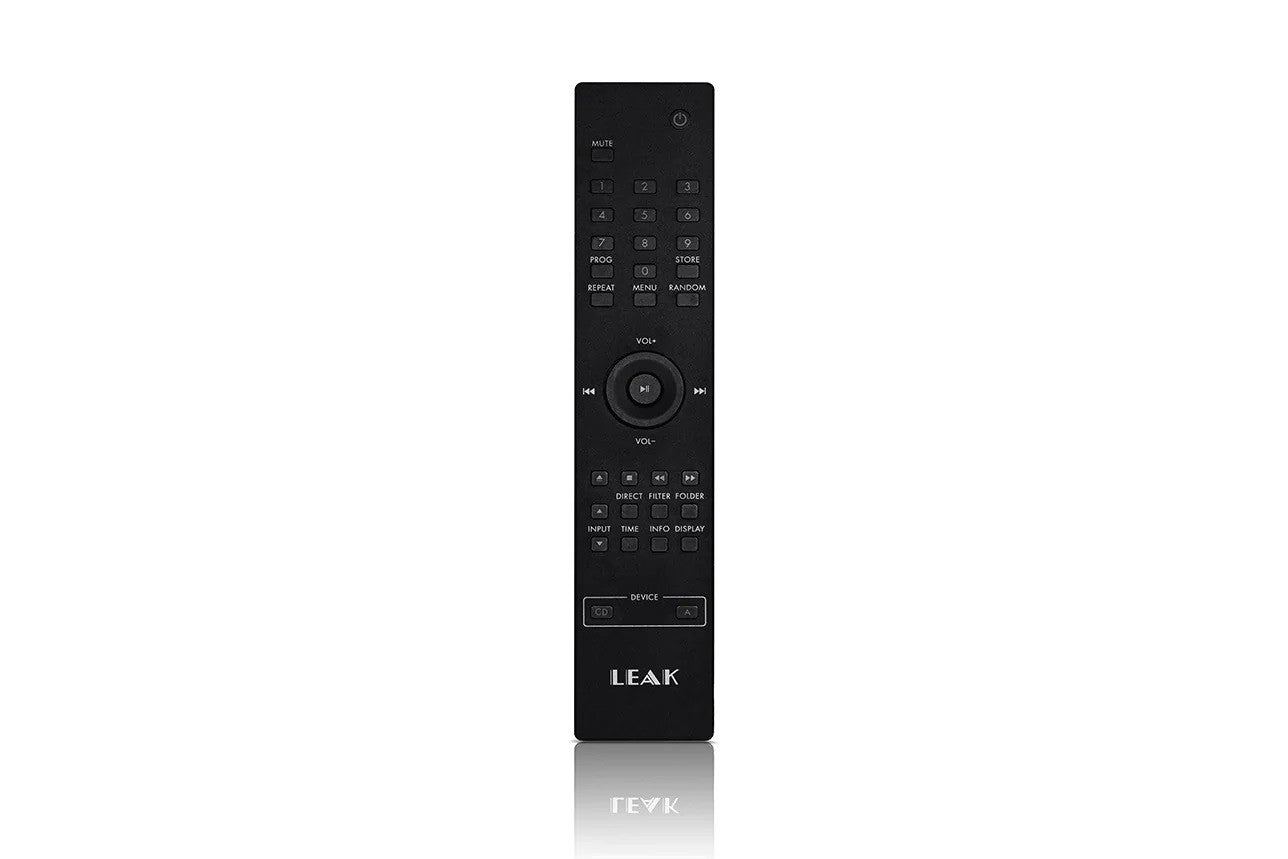

• Standard Accessories - Power Cord, Remote Control, User Manual, Antennas, etc.
