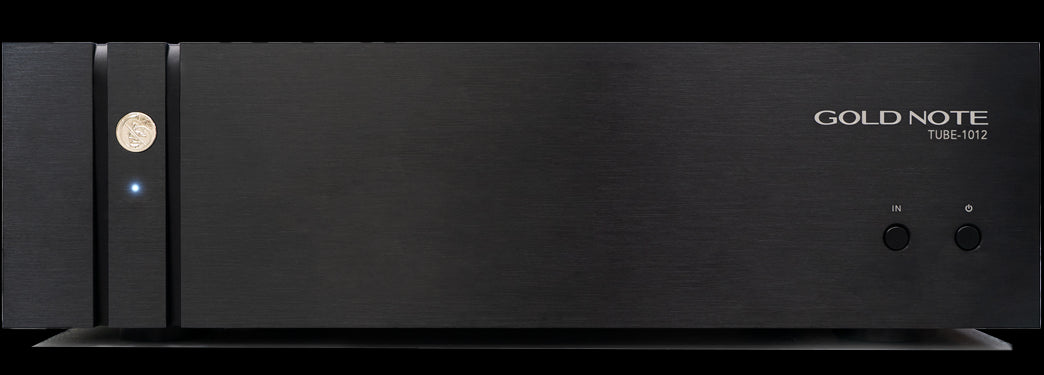

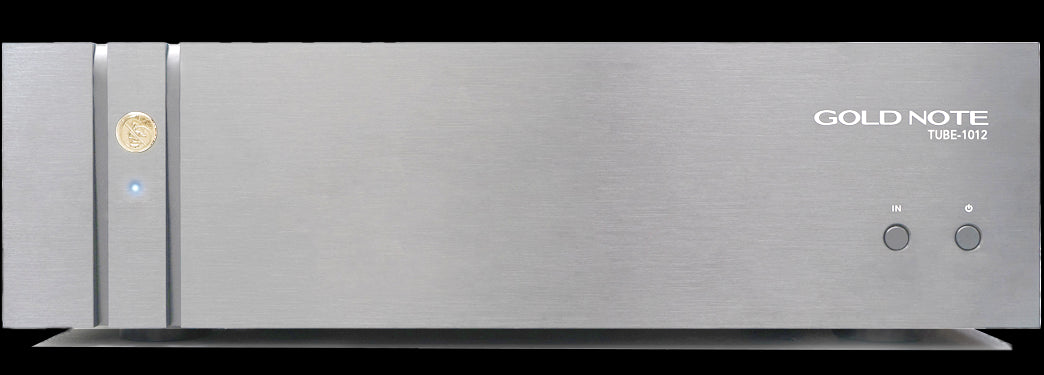

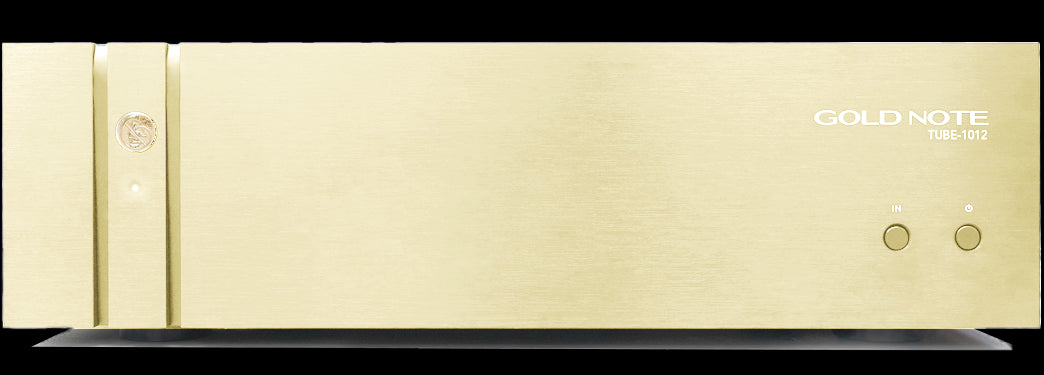

Gold Note - TUBE 1012

ADD SOME WARMTH

TUBE-1012 is the best way to improve the Gold Note electronics even further to reach a whole new level of performance through the class A 12-valve output stage. Our sources and amplifications are capable of great control and definition, providing outstanding realism in recreating the musical event.  But if you prefer the warm sound of the tubes and want to bring your system to its very top performance, the TUBE-1012 is the way to go. Connect it to your Gold Note electronics and you’ll hear Solid-State and Tubes playing in perfect synergy to deliver the best High-End listening experience.

EASY TO CONNECT, EASY TO USE

Our proprietary Totem-Pole Output Stage design, with six independent audio stages per single tube, guarantees ultra-wide bandwidth response and ultra-low distortion to deliver the purest audio signal ever.

Thanks to new audio inputs on the rear panel our valve output stages can be connected with up to two sources at the same time using the TUBE INPUT for the Gold Note sources and the LINE INPUT for other manufacturers. The input can be easily selected from the front panel for maximum convenience and ease of use.

TECHNICAL SPECIFICATIONS

MAIN FEATURES

• TUBE-1012 - Totem-Pole Output Stage design
• MAX INPUT (THD < 1%) - 12Vrms on XLR; 6Vrms on RCA
• MAX OUTPUT (THD < 1%) - 16V on XLR; 8Vrms on RCA
• OUTPUT IMPEDANCE - <600Ω
• GAIN - 2dB
• RECOMMENDED LOAD - >10kΩ
• TUBES - TUBE-1012 – 12 valves
• THD+N - 0.0028% @ 1kHz – 1.736V
• S/N - >100dB @ 1kHz – 1.736V

POWER

• POWER CONSUMPTION - TUBE-1012 – 80W
• POWER SUPPLY - 100-120V or 220-240V, 50/60Hz; Super Linear Vacuum Tube Regulator with 4 Inductive Choke filters
• FUSE (220/240V) - 2A F
• FUSE (100/120V) - 3,15A F

DIMENSIONS AND WEIGHT

• DIMENSIONS - 430mm W | 135mm H | 370mm D
• WEIGHT - TUBE-1012 – Kg. 16 net – Kg. 21 boxed

INPUTS AND OUTPUTS

• INPUTS TUBE - 1x XLR Line In; 1x RCA Line In; 1x Tube In (5-pole XLR for Gold Note sources only)
• OUTPUTS TUBE - 1x XLR Line In; 1x RCA Line In
