audiolab 7000N Play

Wi-Fi® Technology

Featuring DTS Play-Fi® Technology, music can be streamed over your wireless network in high-resolution format and can be easily expanded to a multi-room system if required. You can stream from any source on your wireless network, including smartphones, tablets or PCs as well as a NAS Drive.

DTS Play-Fi App

Besides accessing your personal music library, the DTS Play-Fi platform offers a wealth of leading online music channels from around the globe. Spotify, Tidal, HD Tracks, Deezer, Amazon Music, Napster, KKBox and Sirius XM, to name a few. Browse a radio guide with thousands of stations and podcasts, or stream from a home media server with DLNA compatibility. And thanks to the aforementioned AirPlay 2 adoption, the 7000N Play also now offers further compatibility for Apple Music users and other non-Play-Fi native platforms by way of Apple Airplay 2 connectivity, offering all of the additional convenience of the Apple platform.

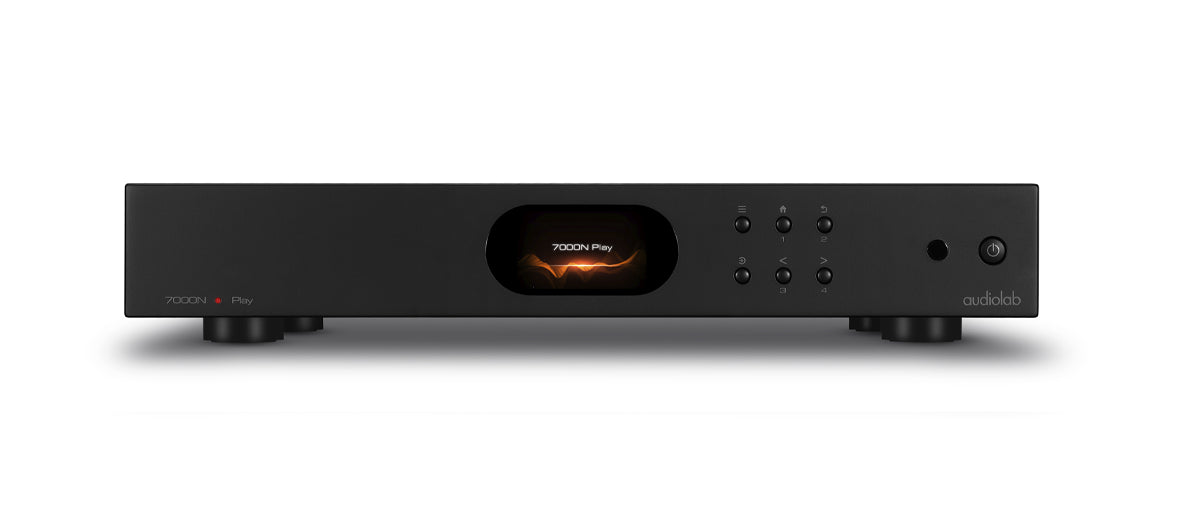

Digital Screen

Sporting a new 2.8″ (480 x 640mm) IPS LCD screen with a detailed but simple to use GUI, the audiolab 7000N Play offers a vivid representation of information including streaming service, system settings, format, folder, track details and other data. It can even be set to display a VU meter in ‘analogue’ or ‘digital’ form, showing real-time decibel levels for the left and right channels for the analogue outputs – a satisfying graphical representation of the music as it plays.

7000N Play - Specifications

General Description: Wireless Audio Streaming Player

Design Philosophy and Core Technology: ESS Sabre ES9038Q2M Reference DAC

• Isolated Power Supply
• 2.8" (480 x 640mm) Full View IPS LCD
• DTS Play-Fi Technology
• Streaming Service Support includes Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, PANDORA, Qobuz, QQ Music and more)
• Apple Airplay 2 compatible
• Multi-room / Multi Speaker Group Support
• Android / iOS / Kindle Fire/ Windows PC Control Support
• Automatic Equipment Activation Via 12V Trigger And Link
• Wired Internet Connection For High Bandwidth Applications
• USB Firmware Upgrade Input

Digital Section

• Digital Output Intensity: 500 +/- 50mVpp
• Output Impedance: 75 ohms
• Frequency Response: -0.01dB (20Hz-20kHz, ref.1kHz)
• Max. Sampling Frequency: 192kHz / 24-bit
• Digital Outputs: 1 x Coaxial, 1 x Optical, 1 x RCA Line Output

D to A Converter

• Variable Output Voltage: 0 – 2.1V
• DAC: ES9038Q2M
• Frequency Response: +/-0.5dB (20Hz-20kHz, ref.1kHz)
• Total Harmonic Distortion (THD): <0.0005% (1kHz @2.1Vrms)
• Max. Sampling Frequency: 192kHz / 24-bit
• Signal-to-Noise Ratio (S/N): >115dB (A-weighted)
• Output Impedance: 100 ohms

General

• Standby Power Consumption: <0.5W
• Dimensions (mm) (W x D x H): 444 x 340 x 78
• Carton Size (mm) (W x D x H): 500 x 455 x 140
• Net Weight: 5.0kg
• Gross Weight: 6.1kg
• Finish: Black / Silver
• Power Requirements: 220-240V ~ 50/60Hz; 100-120V ~50/60Hz
• Safety Regulation Conformity: 20-600 ohms
• Standard Accessories: Power Cord, USB Cable, User Manual
