Gold Note DIANA Center Speaker

Design and Build

The Gold Note DIANA Center is a high-performance center channel speaker designed to deliver crystal-clear dialogue and immersive sound for home theater setups. Crafted with precision and elegance, it seamlessly integrates into Gold Note’s DIANA speaker series, ensuring a cohesive audio experience. The speaker's cabinet is built with high-density materials to minimize resonance and distortion, allowing for pure and accurate sound reproduction. Its compact yet robust design, with dimensions of 540mm (width) x 180mm (height) x 300mm (depth), makes it easy to position within entertainment systems while maintaining a refined aesthetic that complements modern interiors.

Drivers and Acoustic Performance

The DIANA Center is equipped with a 1.1-inch silk dome tweeter and two 6.5-inch fiberglass mid-woofers, designed to deliver an articulate and well-balanced sound signature. The tweeter provides smooth and natural high frequencies, ensuring that voices and subtle sound details are crisp and lifelike. The dual mid-woofers contribute to a rich midrange and powerful bass response, allowing for clear and dynamic dialogue reproduction, even in action-packed scenes.

With a frequency response range of 45 Hz – 20,000 Hz, the DIANA Center ensures a full-bodied sound experience that blends seamlessly with other speakers in the Gold Note lineup. The advanced crossover network guarantees a smooth transition between drivers, maintaining precise imaging and a natural tonal balance. The rear bass-reflex port enhances low-frequency performance, adding depth and warmth to movie soundtracks and musical scores.

Technical Specifications

• Type: Center channel loudspeaker

• Frequency Response: 45 Hz – 20,000 Hz (±3 dB)

• Sensitivity: 89 dB SPL

• Impedance: 8Ω

• Crossover Frequency: 2,900 Hz

• Suggested Amplifier Power: 20–120 W

• Drivers:

  • Tweeter: 1.1-inch silk dome

  • Mid-Woofers: 2 x 6.5-inch fiberglass cones

• Volume: 20 dm³

• Dimensions: 540mm (W) x 180mm (H) x 300mm (D)

• Weight: 15 kg

Integration and Compatibility

The DIANA Center is designed to complement the Gold Note DIANA series, ensuring a perfectly matched soundstage when paired with DIANA bookshelf or floor-standing speakers. Its tonal balance allows for seamless integration into a variety of home theater configurations, providing an enhanced surround sound experience with clear and detailed center-channel audio reproduction.

Customization Options

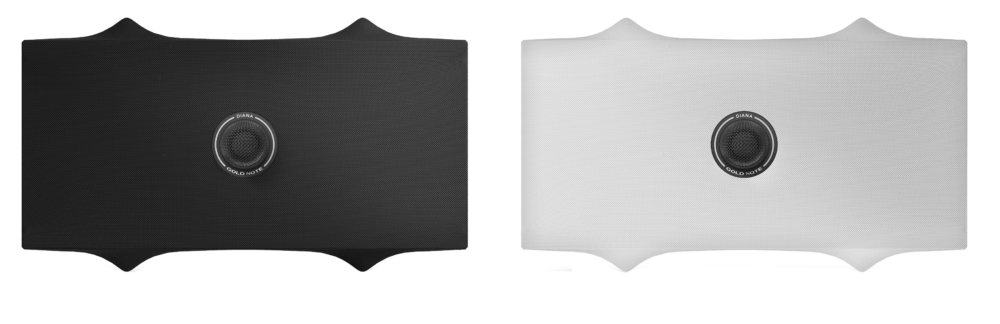

To match different interior aesthetics, the DIANA Center is available in a selection of premium finishes, including wood veneer and high-gloss lacquer. The tweeter phaser can be customized in gold, silver, or black finishes, offering an additional level of personalization to suit individual preferences.

Conclusion

The Gold Note DIANA Center is a refined and powerful center channel speaker that delivers exceptional vocal clarity and dynamic range, making it an ideal choice for high-end home theater setups. With its premium construction, detailed acoustic performance, and seamless integration with the DIANA speaker series, it provides an immersive cinematic experience that enhances every movie, TV show, and music performance.
